Section 1: Set-Up Requirements
Gear Box Oil Requirements
Refer to Figure 1-4 and Figure 1-5
Before putting your implement into service:
IMPORTANT:
•
Gearbox uses Multi-Purpose Gear Oil (ie: S.A.E. 80w/90 or
S.A.E. 85w/140 Multi-purpose gear oil.)
•
For all Grease Fittings use TYPE/Grade II tube grease.
•
Place implement so that the deck is secure and level.
•
Clean away any excess oil and dirt before removing 1/2” Pipe Plug
(located at top of gearbox and 1/8” pipe plug (located at lower 1/3
of gearbox). Refer to figure 1-5 if your gearbox does not have a
fluid level plug as shown in Figure 1-4.
•
Fill gearbox until the oil level is even with the bottom opening of the
1/8” pipe plug hole. *Refer to Figure 1-5 to check oil level if your
gearbox does not have the fluid level plug.
•
Grease wheel axles (4), tail wheel (1), front roller axle (1), and PTO
Shaft universal joints (2).
•
Check all bolts, nuts and belt to insure they are tight and secure.
CAUTION:
DO NOT overfill gearbox!
This could cause damage to oil seals, and can cause permanent damage
to the gearbox.
This issue will not be covered under warranty.
14

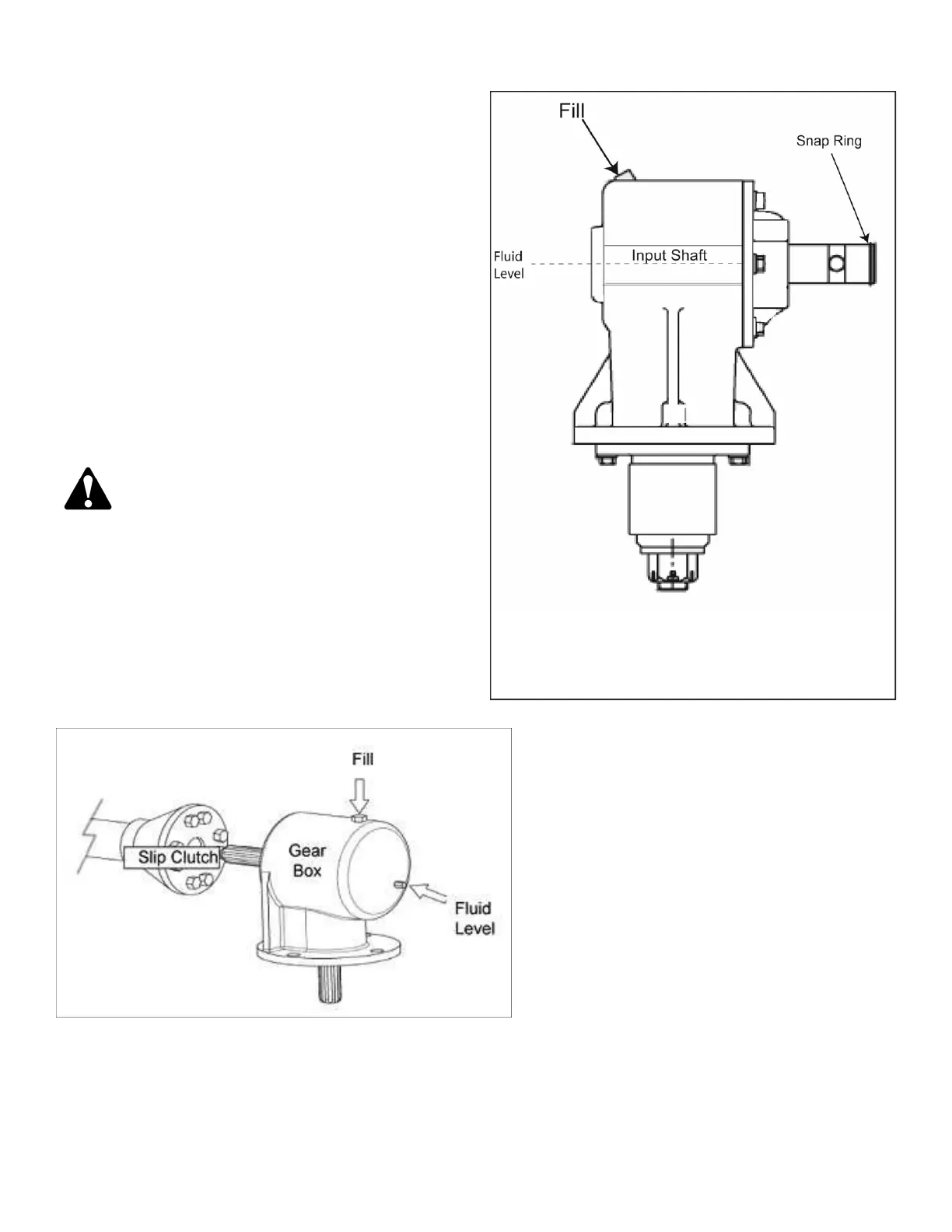

Figure 1-4—Slip Clutch and Gear Box
Figure 1-5—Gearbox without Fluid Level Plug
When filling you will need to visually check the oil level in the gearbox
through the fill opening. Fluid level should come half-way up the
input shaft as shown above; otherwise you may overfill the gearbox.
