Primes PMT 01 - Measure Via the Analog Current Loop Interface (Only Device Types Sep;Out); 12.4.1 Get Ready for Measurement

35,0(6
PocketMonitorPMT
26
Revision 01/2020 EN

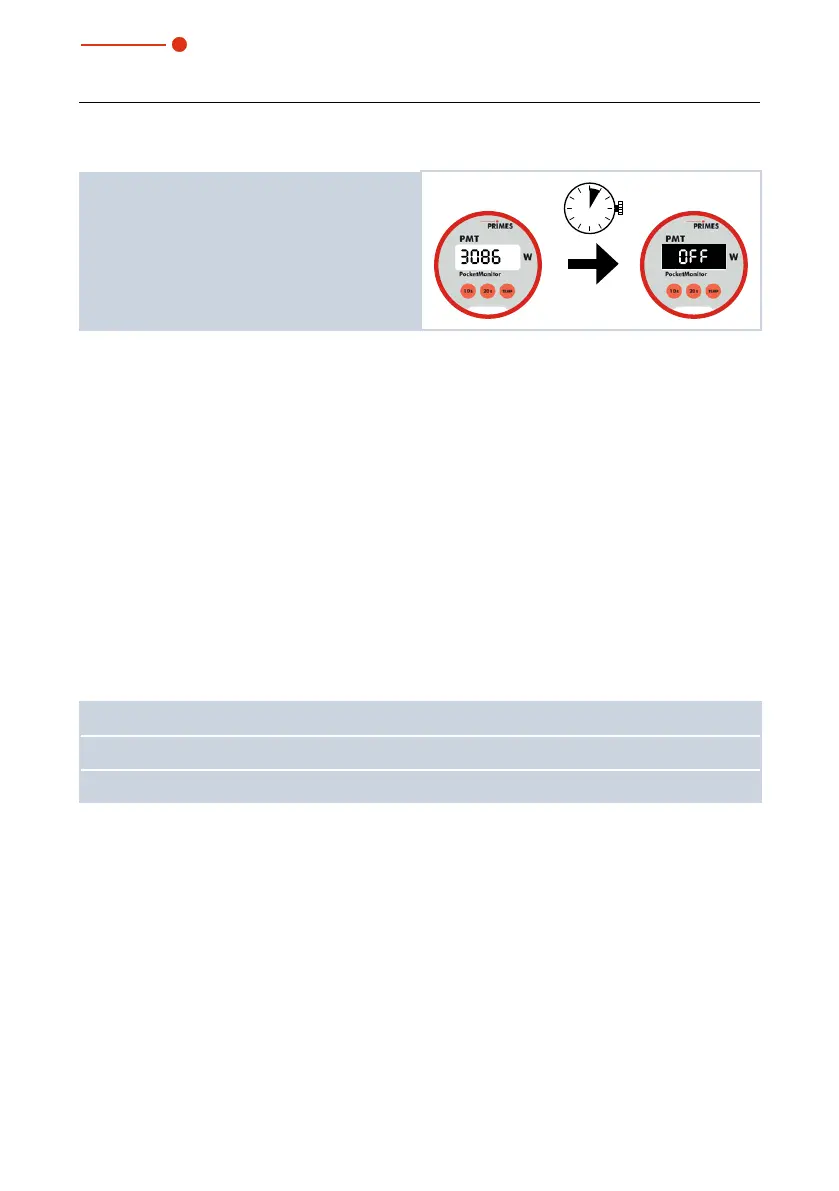

• After approx. 5minutes the device swit-
ches off automatically.
6. To switch off the device manually, keep
the TEMP button pressed and simulta-
neously press the 20s button for 1 s.
12.4 Measure via the analog current loop interface
(only device types sep/out)
The device types sep/out have an analog current interface, which allows you to control
the device remotely and read out the measured values.
The interface supplies the device with power and operates continuously. Therefore a
measurement can be started at any time.
Using two formulas, the absorber temperature and laser power can be calculated from
the direct current output. A current of 4mA corresponds to the zero point. A current of
20mA corresponds to the maximum display range.
12.4.1 Get ready for measurement
1. Observe the safety instructions in chapter 12.1 on page23.
2. Remove any protective foil from the absorber.
3. Connect the current loop interface with the cable according to chapter 8.2 on page17.
