good for the Cut-off saw. In this case, make standard setting first, then turn the
idling speed adjusting screw LA counter-clockwise until the blade stops running.
Then turn the screw LA 90°further (counter-clockwise).

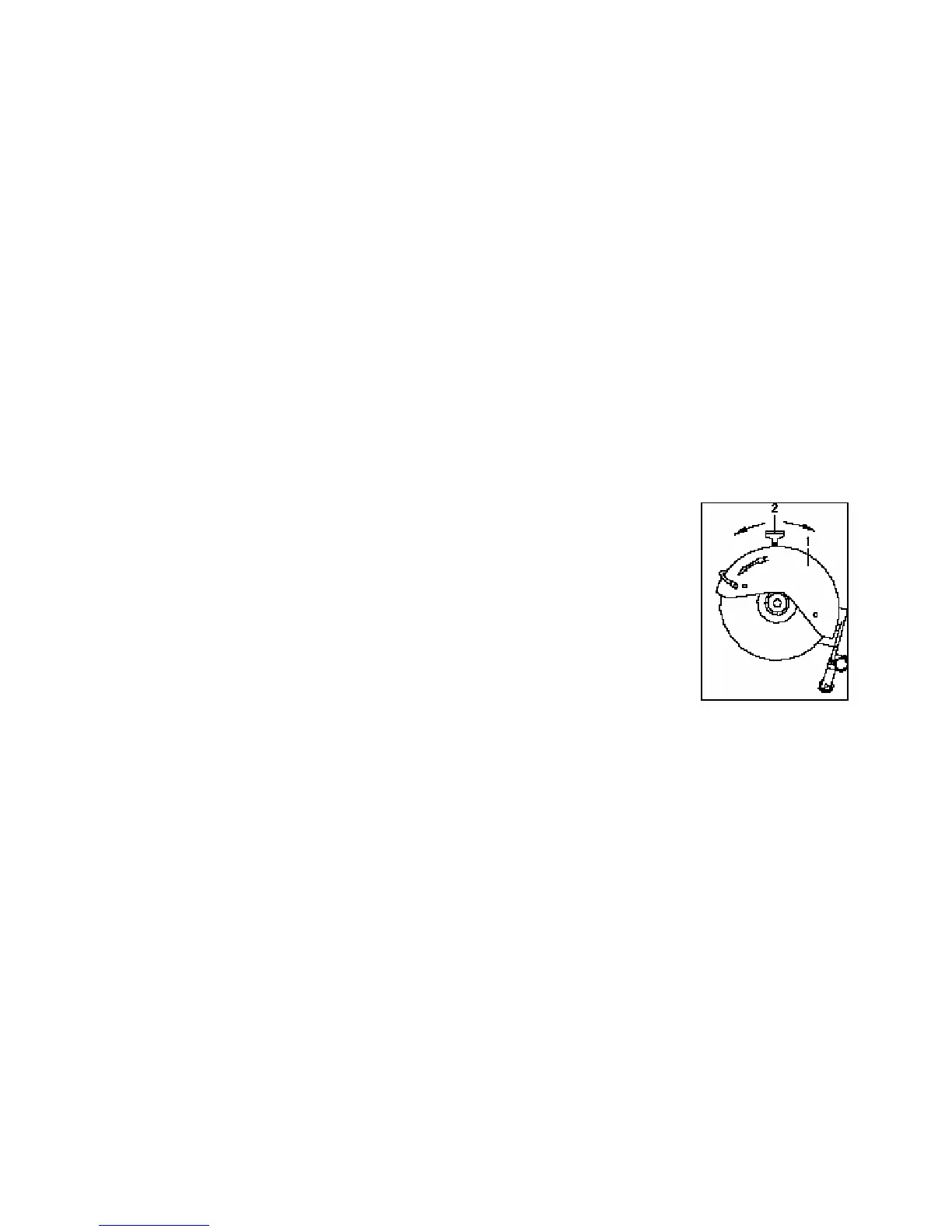

3. Adjusting blade guard (Ref. Fig.10)
The blade guard deflects sparks from the operator. Move
the adjusting lever (2) to change the position of the blade
guard.
Fig. 10
Maintenance & repair of EHS350A cut-off saw
34
