● Slip the rope rotor onto the starter post (6) and turn it back and forth a little
until the anchor loop of the rewind spring engages.
● Replace the pawl (9) in the rope rotor.
● Press the spring clip (8) onto the starter post and over the peg of the pawl with
a screwdriver.
Note: The spring clip must point counter-clockwise.
● To tension the rewind spring, first guide the rope through the notch on the
edge of the rope rotor and form a loop, use it to turn the rope rotor 4-5 times
counter-clockwise.
● Then hold the rope rotor tight, pull out the twisted rope and untangle it.
● Release the rope rotor, slowly let go of the starter rope so that it is wound up
on the rope rotor.
● Refit the flywheel/starter cover (1) and screw in the four screws (2).

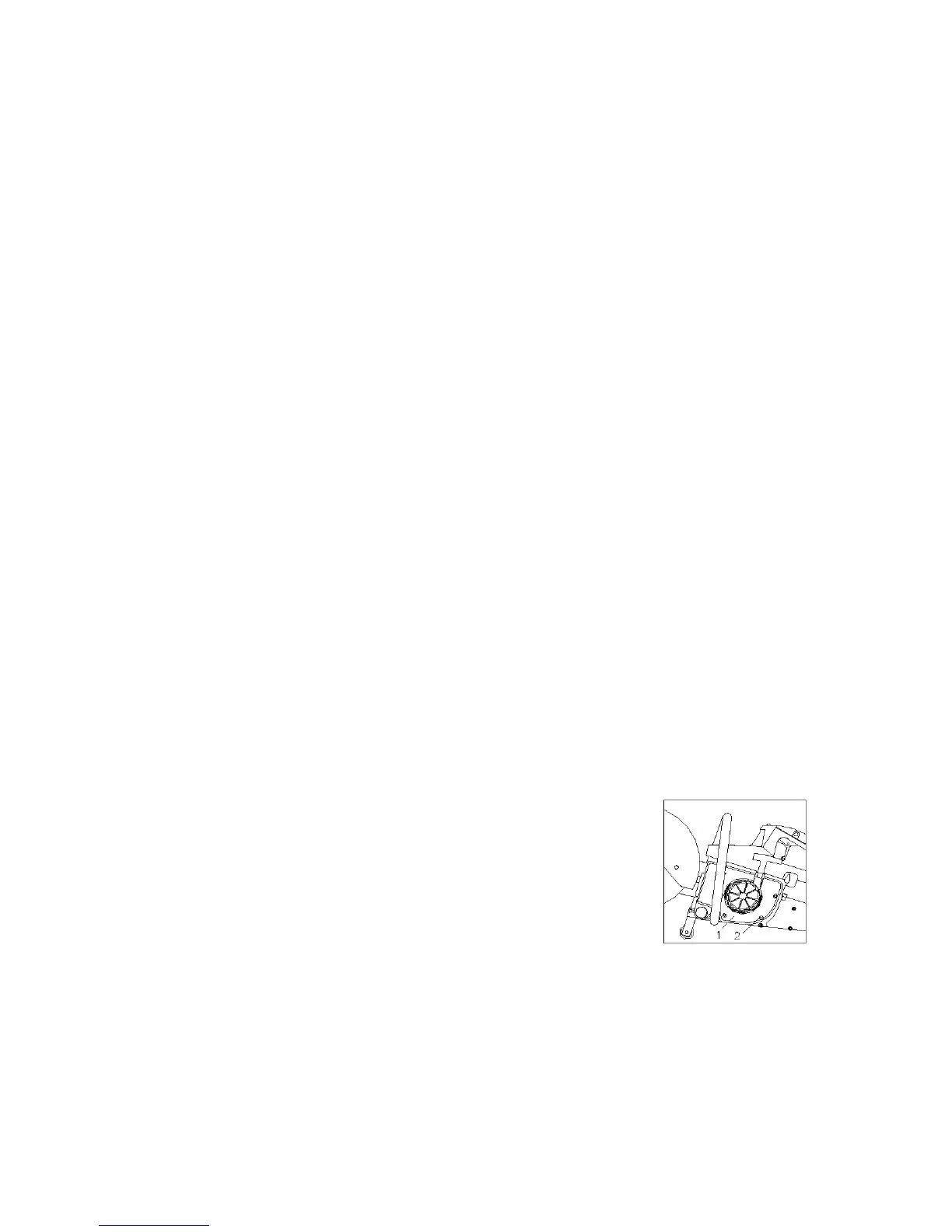

4. Replacing pawl (Ref. Fig. 13)
