The pawl functions as a link between the rope rotor and the crankshaft (by engaging
and disengaging the starter cup) and needs to be replaced if damaged.
● Unscrew the screws (2) on the flywheel/starter cover (1) and remove the
cover from the engine unit.
● Remove the spring clip (8), Remove the damaged
pawl (9).
● Replace a new pawl.
● Refit the spring clip (8) and the flywheel/starter
cover (1) in succession.

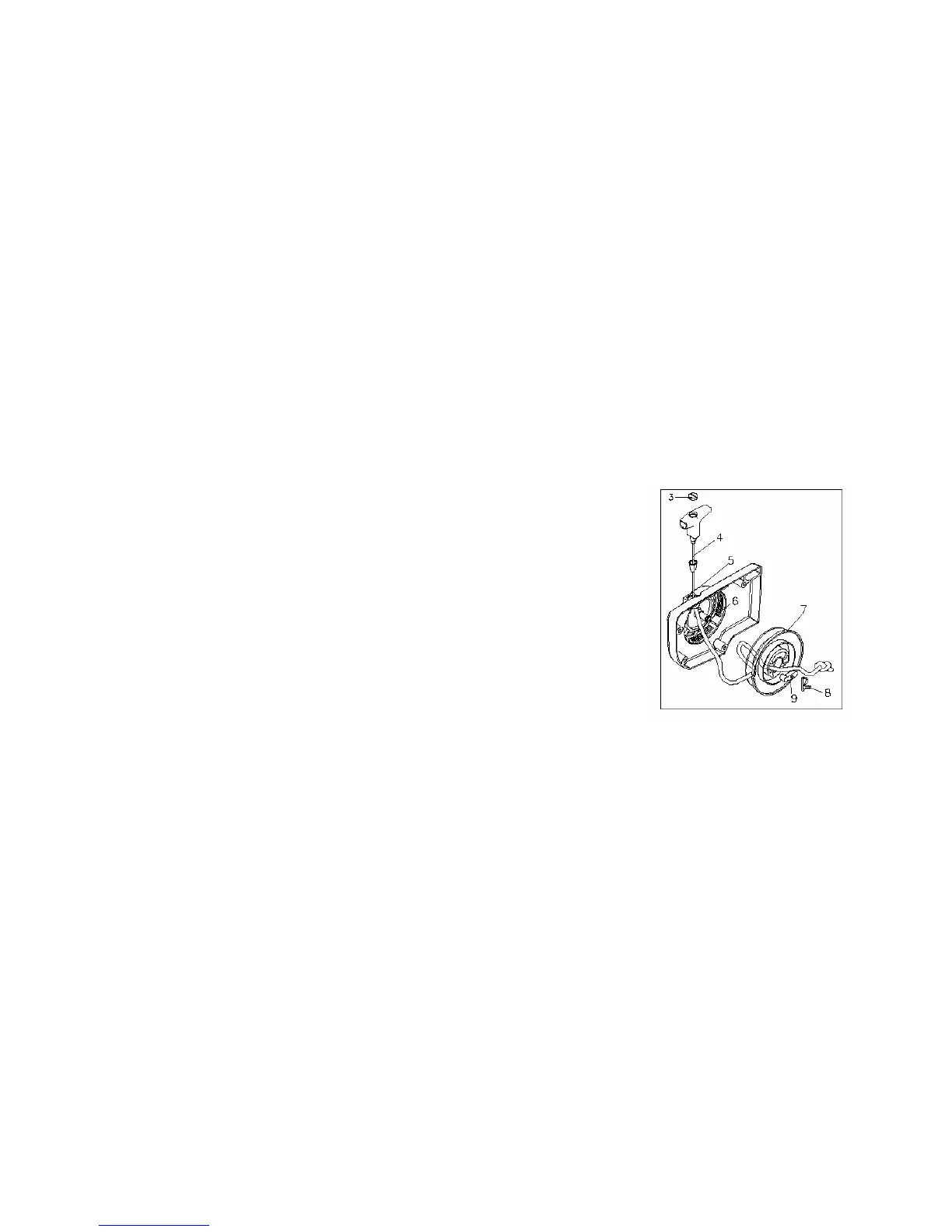

Fig. 13
5. Maintenance chart
The following information refers to normal operating conditions. The specified intervals
39
