Printronix T4M - Figure 24. Standard Peel with Liner Rewinder Media Path

254
Appendix B Using The Standard Peel With Liner Rewinder Option
6. Thread the media under the media damper, over the platen, and in
between the knurled roller and the rubber roller. See
Figure 23 and
Figure 24.
7. Thread the liner under the rubber roller.
8. Remove the media rewinder clip.

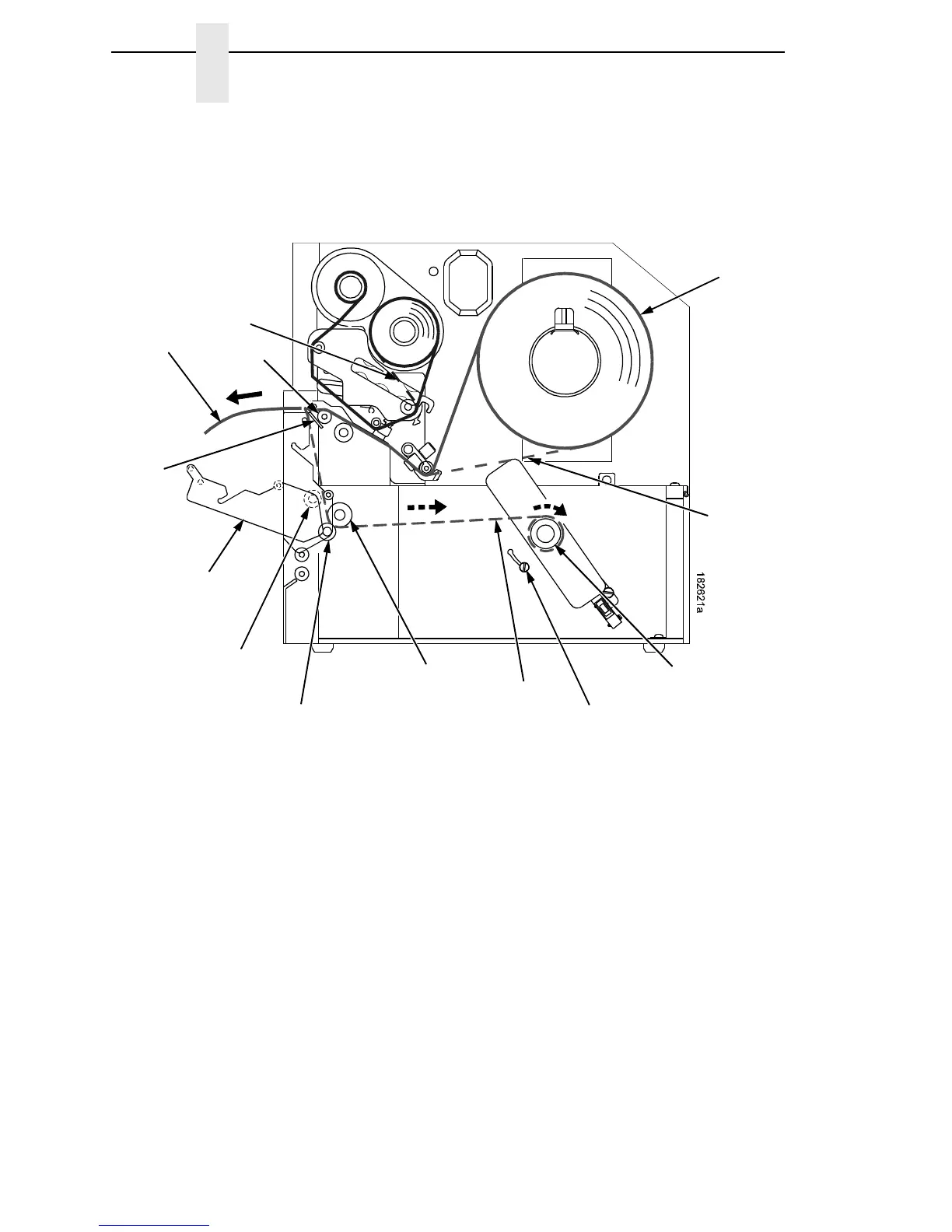

Figure 24. Standard Peel with Liner Rewinder Media Path
9. Wrap the leading edge of the liner over and around the rewinder.
10. Slide the liner flush against the left edge of the rewinder.
Label
Rewinder
Peel-Off Door
Tear
Bar
Alternate
Ribbon Path
Rubber Roller
Knurled Roller
(open position)
Liner
Media
Platen
Alternate
Media Path
Thumbscrew
Knurled Roller
(closed position)
