Installation and Wiring
160
USB Cable Clamp for USB (mini-B)
Introduction
When using a USB device, you can attach a USB cable clamp to the USB (mini-B)
interface to prevent the USB cable from being disconnected.
Attaching the USB Cable Clamp
Removing the USB Cable Clamp
Remove the USB clamp by pressing the tabs from the sides.
DANGER
POTENTIAL FOR EXPLOSION
z Verify that the power, input and output (I/O) wiring are in accordance with Class
I, Division 2 wiring methods.
z Substitution of any component may impair suitability for Class I, Division 2.
z Confirm that the USB cable has been attached with the USB cable clamp before
using the USB interface.
z Remove power before attaching or detaching any connectors to or from the unit.
Failure to follow these instructions will result in death or serious injury.

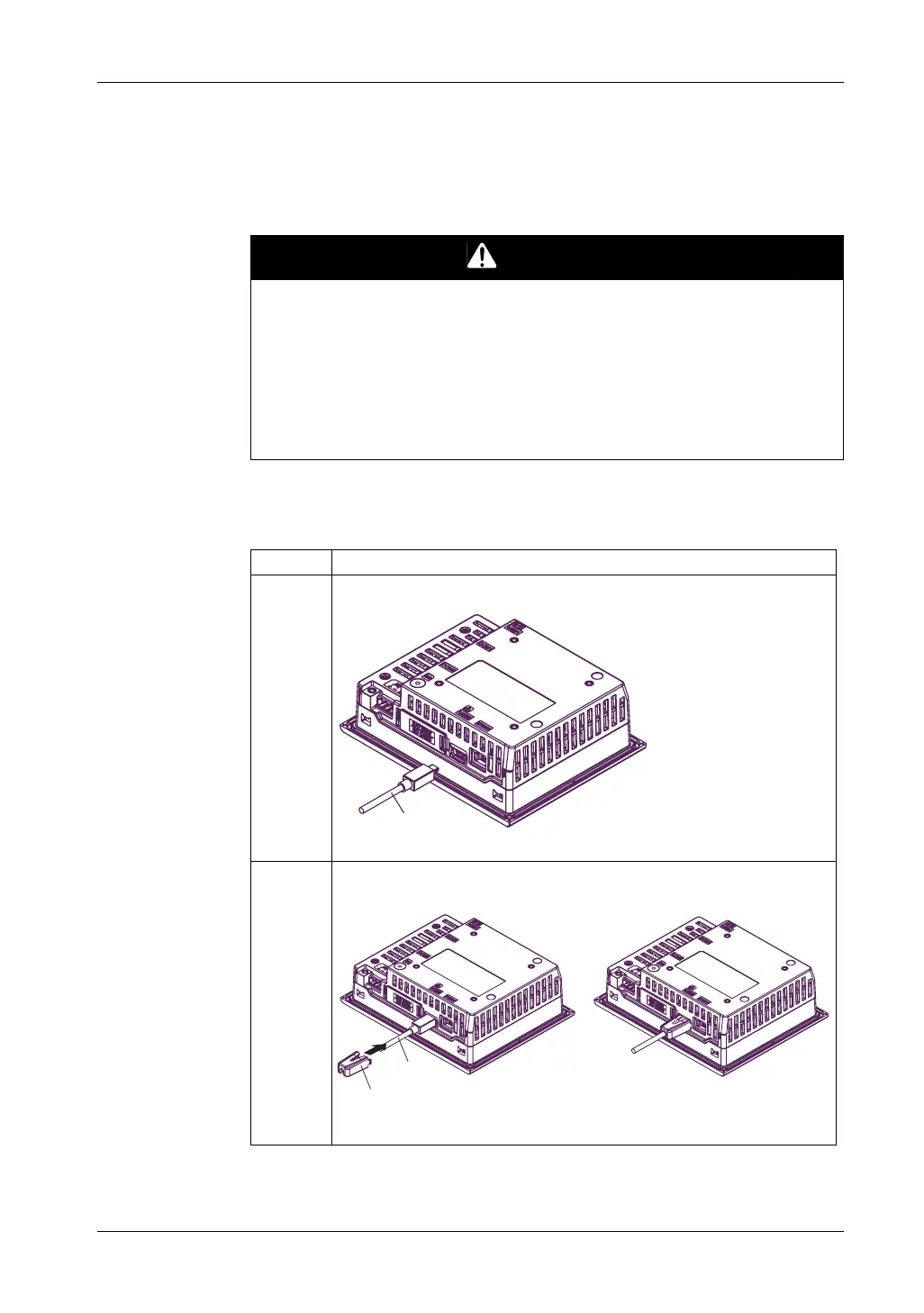

Step Action
1 Insert the USB cable into the USB (mini-B) interface.
1 USB cable
2 Attach the USB clamp to fix the USB cable in place. Insert the USB clamp into
the USB (mini-B) interface.
1 USB clamp
2 USB cable
(1)
(2)
(1)
To Next Page
