GP4000 Series Hardware Manual
95

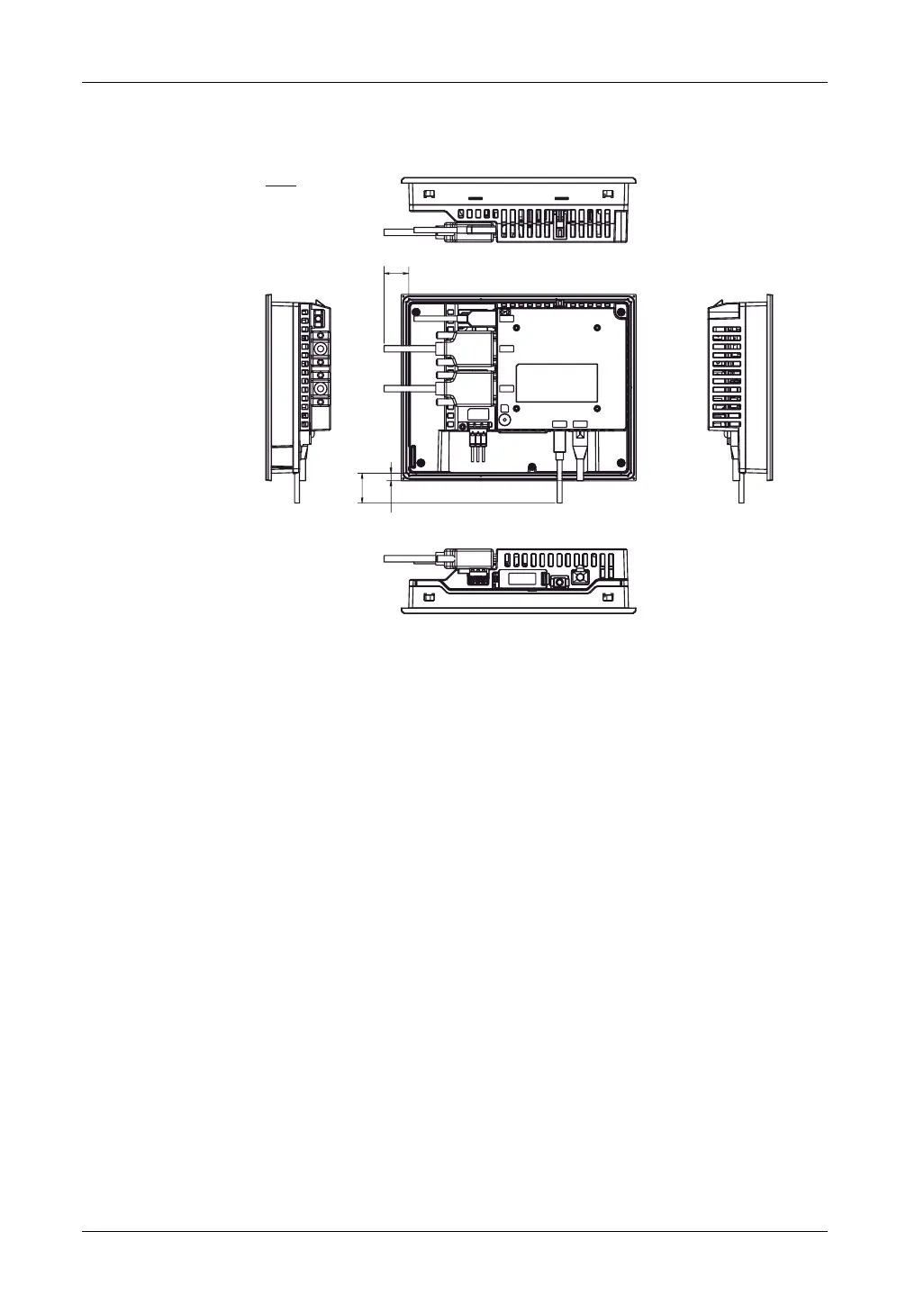

Dimensions with Cables
1 Left Side
2 Rear
3 Right Side
4 Top
5 Bottom
NOTE: All the above values are designed with cable bending in mind. The
dimensions given here are representative values depending on the type of
connection cable in use. Therefore, these values are intended for reference only.
23
7
28
mm
in.
(1) (2)
(5)
(4)
(3)
0.91
1.10
0.28
(GP-4401T)
