Specifications
96

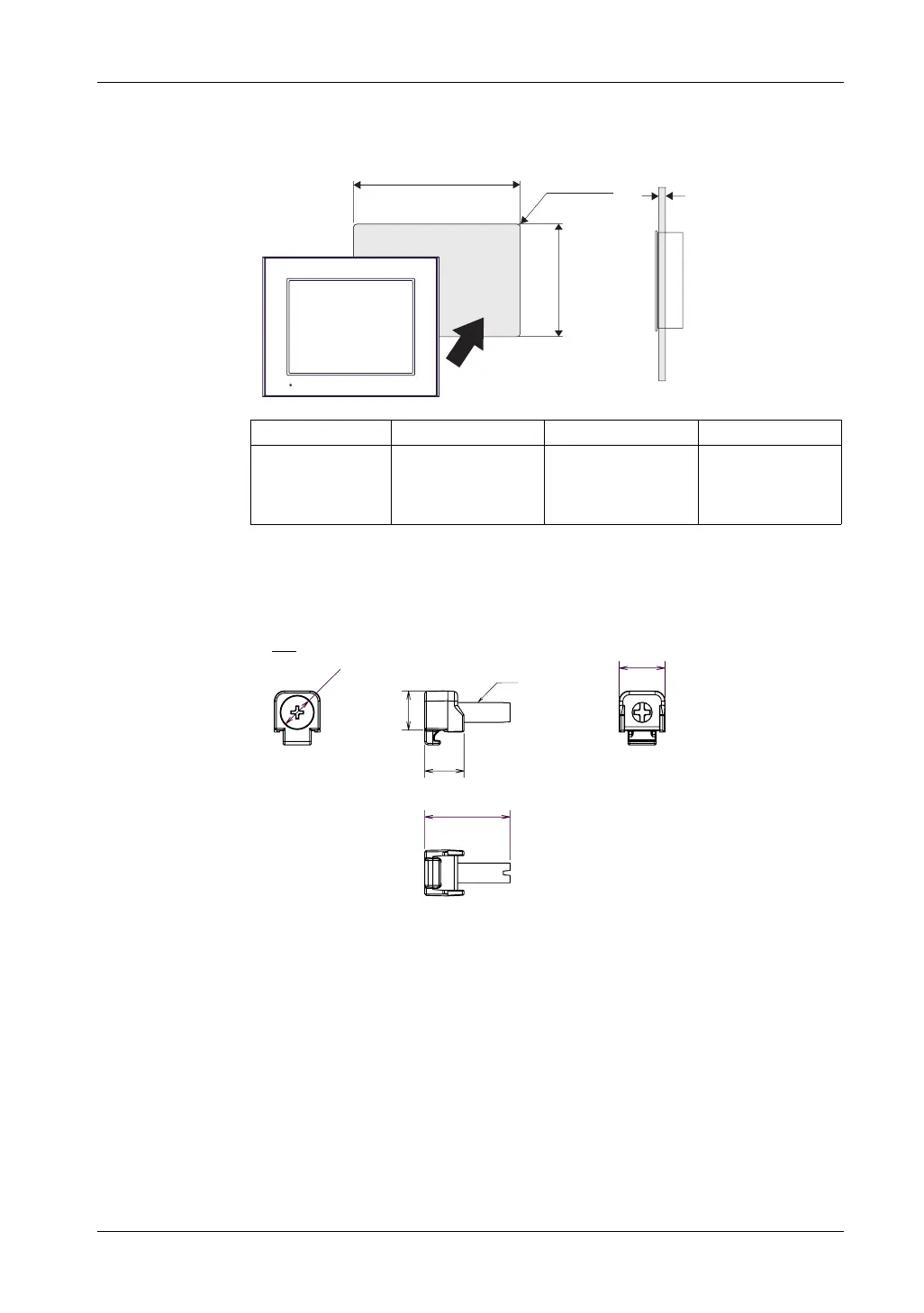

Panel Cut Dimensions
Create a panel cut and insert the GP unit into the opening from the front.
NOTE: Before designing the panel cut, refer to Installation (see page 136).
Installation Fastener Dimensions
AB C R
204.5 mm (+1, -0
mm)
(8.05 in. [+0.04, -0
in.])
159.5 mm (+1, -0 mm)
(6.28 in. [+0.04, -0 in.])
1.6...5 mm
(0.06...0.2 in.)
3 mm (0.12 in.)
maximum
A
C
R
B
12
0.47
12
0.47
14
0.55
M6
26
1.02
mm
in.
Ø10
Ø0.39
