GP4000 Series Hardware Manual
235
A) Resin plate
B) Boss diameter: ø10.5 mm ± 0.5 mm (ø 0.41 in. ± 0.02 in.)
C) Lower hole depth: 6 mm (0.24 in.) or more
D) Boss height: 20 mm (0.79 in.) ± 0.1 mm (± 0 in.) for the standard mount ori-
entation
E) Boss height and resin plate thickness
*1
: 19.5 mm (0.77 in.) ± 0.1 mm (± 0
in.) for the flat mount orientation
*1 Resin plate thickness: max. 2mm (0.08 in.)
Note:
z Before you start this work, carefully read "Panel Cut Dimensions" (see page
223).
z Design the resin plate on the basis of sufficient testing and within your
quality assurance range. However, the boss height cannot be changed.
z Do not construct any ribs outside of the area indicated by diagonal lines in
the figure.
Step Procedure Details
C
mm
in.
10
0.39
20
0.79
10
0.39
10
0.39
5.6
0.22
10
0.39
16.5
0.65
(dimensional
tolerance:
±0.2mm
[0.01 in.])

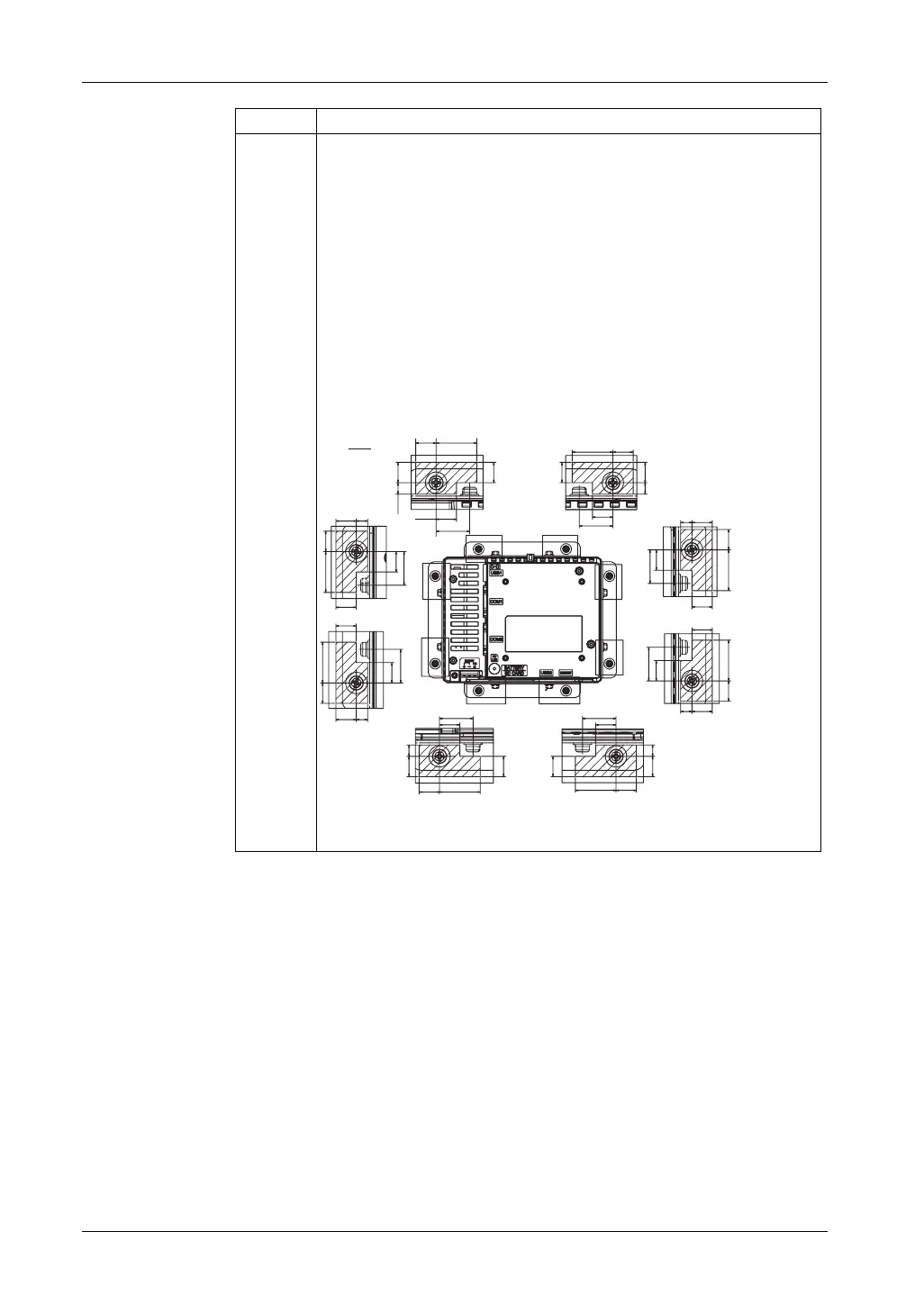

(This figure shows PFXGP4301TADR. The dimensions
are common with all of the rear mount models.)
To Next Page
