9
Avoid pinching
the wires
7
5
52
41
4

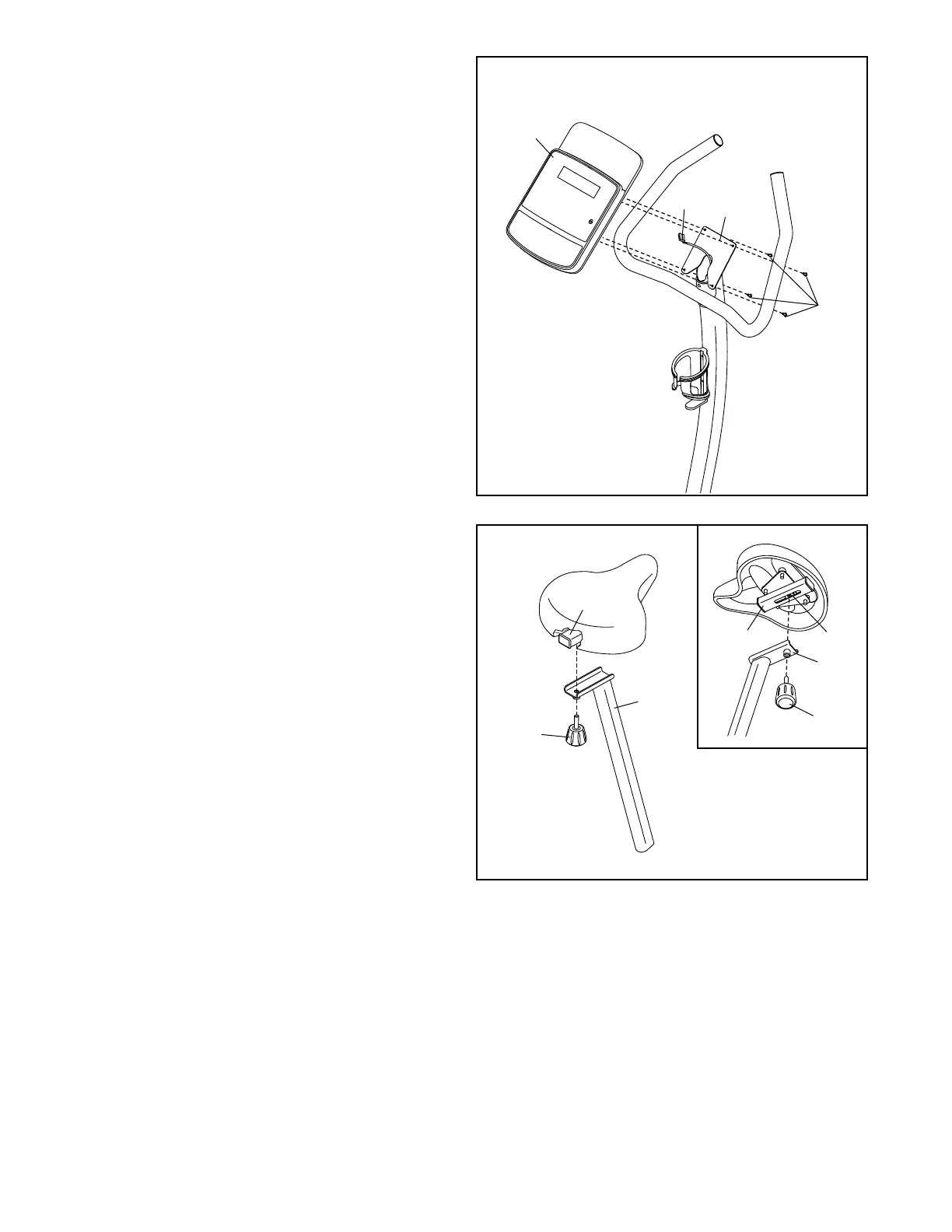

7. Untie and discard the wire tie on the Main
Wire (41).
While a second person holds the Console (5)
near the Upright (4), plug the Main Wire (41) into
the receptacle on the Console.
The connector on the Main Wire (41) should
slide easily into the receptacle and snap into
place. If the connector does not slide easily into
a receptacle, turn the connector and try again. If
you do not connect the connector properly,
the Console (5) may become damaged when
you use the exercise bike.
Insert the excess wire into the Upright (4).
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (4) with four
M4 x 16mm Screws (52); start all the Screws,
and then tighten them.
8
10
10
67
67
68
68
14
8. Remove the Seat Knob (68) from the Seat
Carriage (67).
Next, set the Seat Carriage (67) on the Seat
Post (10) and hold it in place.
See the inset drawing. Insert the Seat Knob
(68) upward into the Seat Post (10), and tighten
the Seat Knob into the Carriage Clamp (14)
inside the Seat Carriage (67). Make sure that
the Seat Knob is tightened into the Carriage
Clamp.
