10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking
belt (see page 16). To protect the floor or carpet, place a mat under the treadmill.

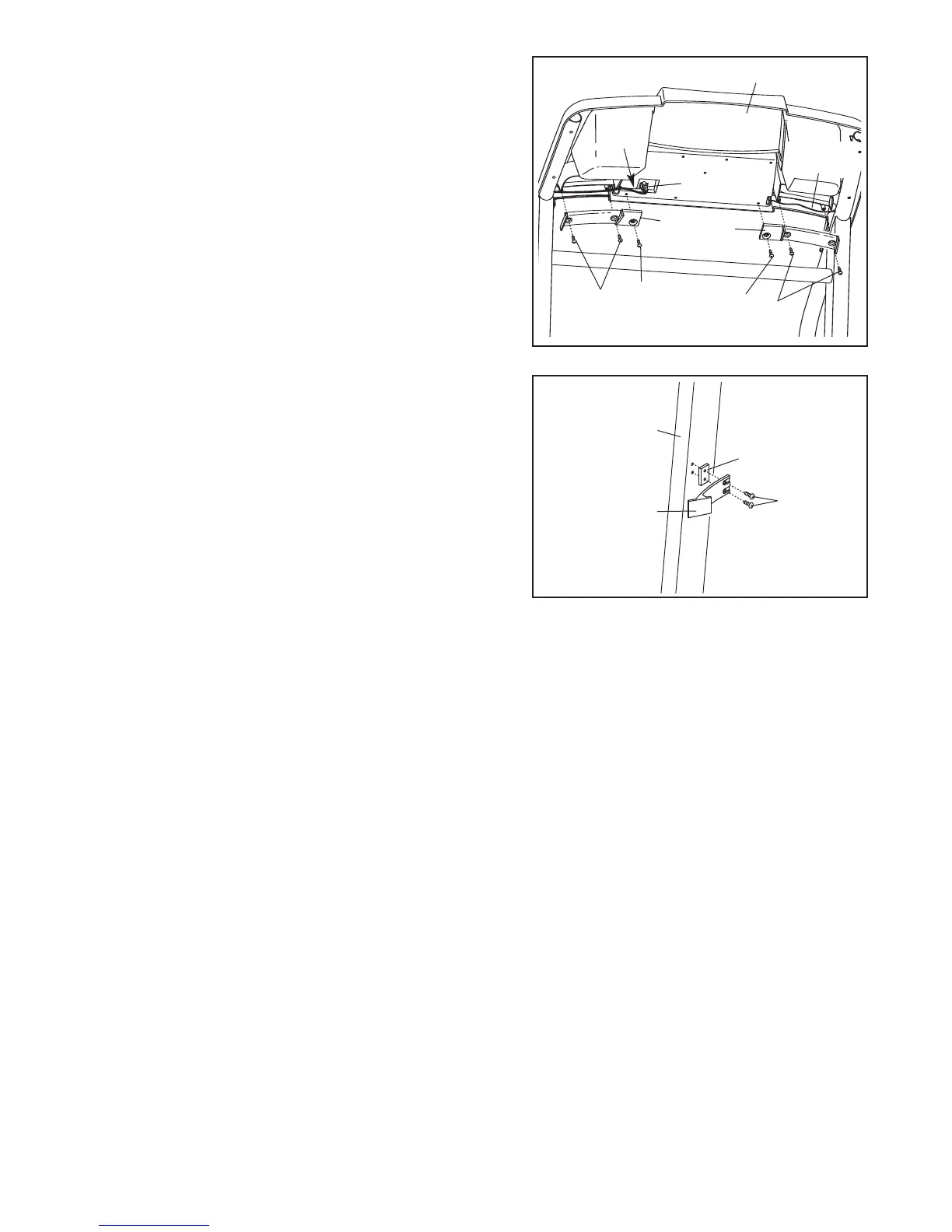

9. Attach the Storage Latch (29) and the Latch Spacer (44)
to the left Upright (69) with two 3/4” Screws (2) as shown.
Do not overtighten the Screws.
2
69
29
44
48
42
G
round
Wire
36
2
2
32
47
8. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
U
pright Wire with the Right Grip Plate (36). B
e careful
not to pinch the Upright Wire. Tighten two 1/2” Screws
(
48) and a 3/4” Screw (2) into the Right Grip Plate and
the Console Base.
Attach the Left Grip Plate (32) over the ground wire and
the other wires with two 1/2” Screws (48) and a 3/4”
Screw (2) .
Be careful not to pinch any of the Wires.
48
S
lot
8
9
