10

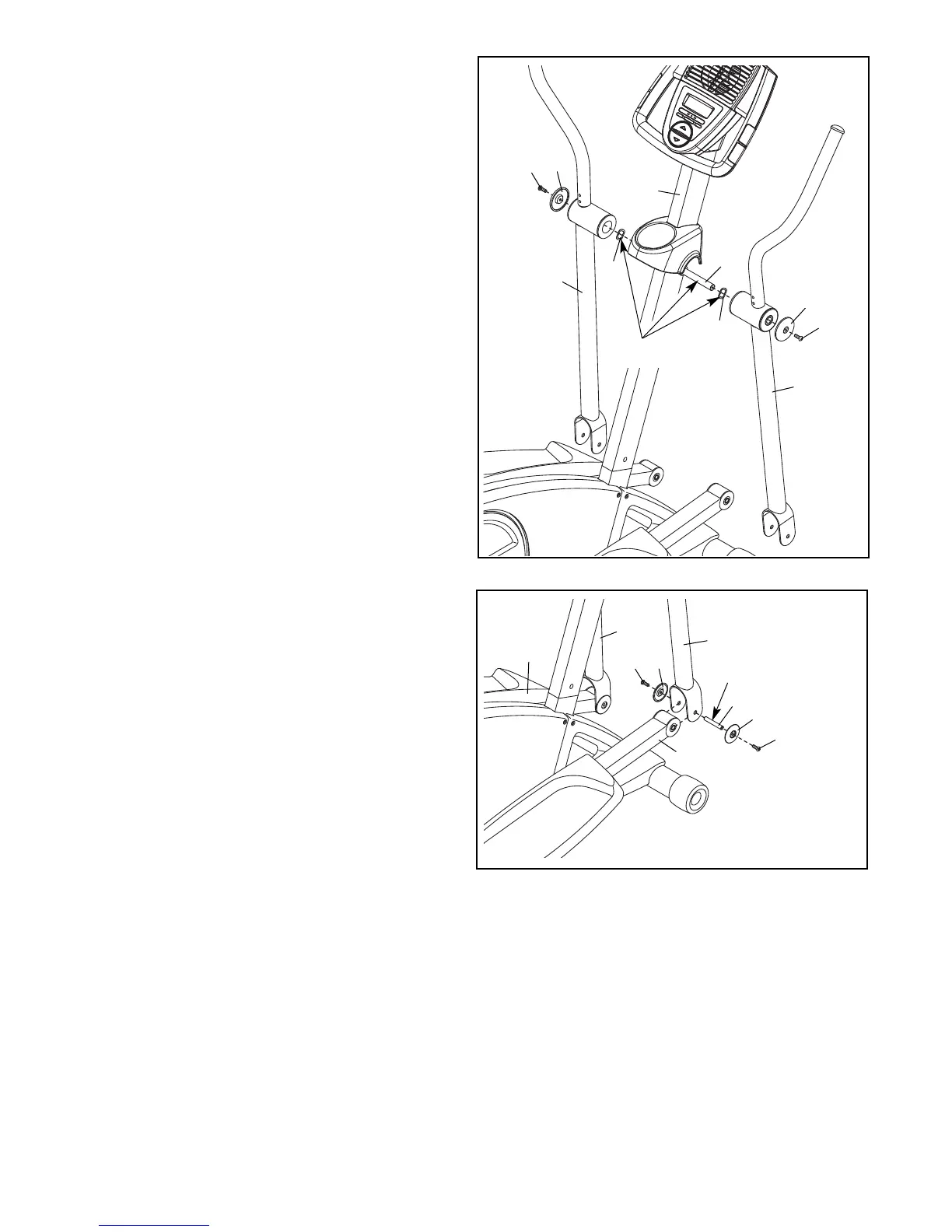

10. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Place a Wave Washer (88) on each end of the
Pivot Axle.
Slide the right Upper Body Leg (6) onto the
Pivot Axle (16). Attach the right Upper Body Leg
with an M6 x 16mm Patch Screw (80) and a
Large Axle Cover (20). Attach the left Upper
Body Leg (6) in the same way.
10
80
20
6
88
16
88
6
20
80
2
Grease
12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11. Apply a small amount of grease to a Pedal Arm
Axle (21). While another person holds the right
Pedal Arm (14) inside the bracket on the right
Upper Body Leg (6), insert the Pedal Arm Axle
through the Upper Body Leg and the Pedal
Arm.
Then, tighten an M6 x 16mm Patch Screw (80)
and an Axle Cover (22) into each end of the
Pedal Arm Axle (21).
Repeat this step for the other side of the
elliptical exerciser.
11
80
22
21
14
14
Grease
22
6
6
80
To Next Page
