9
8

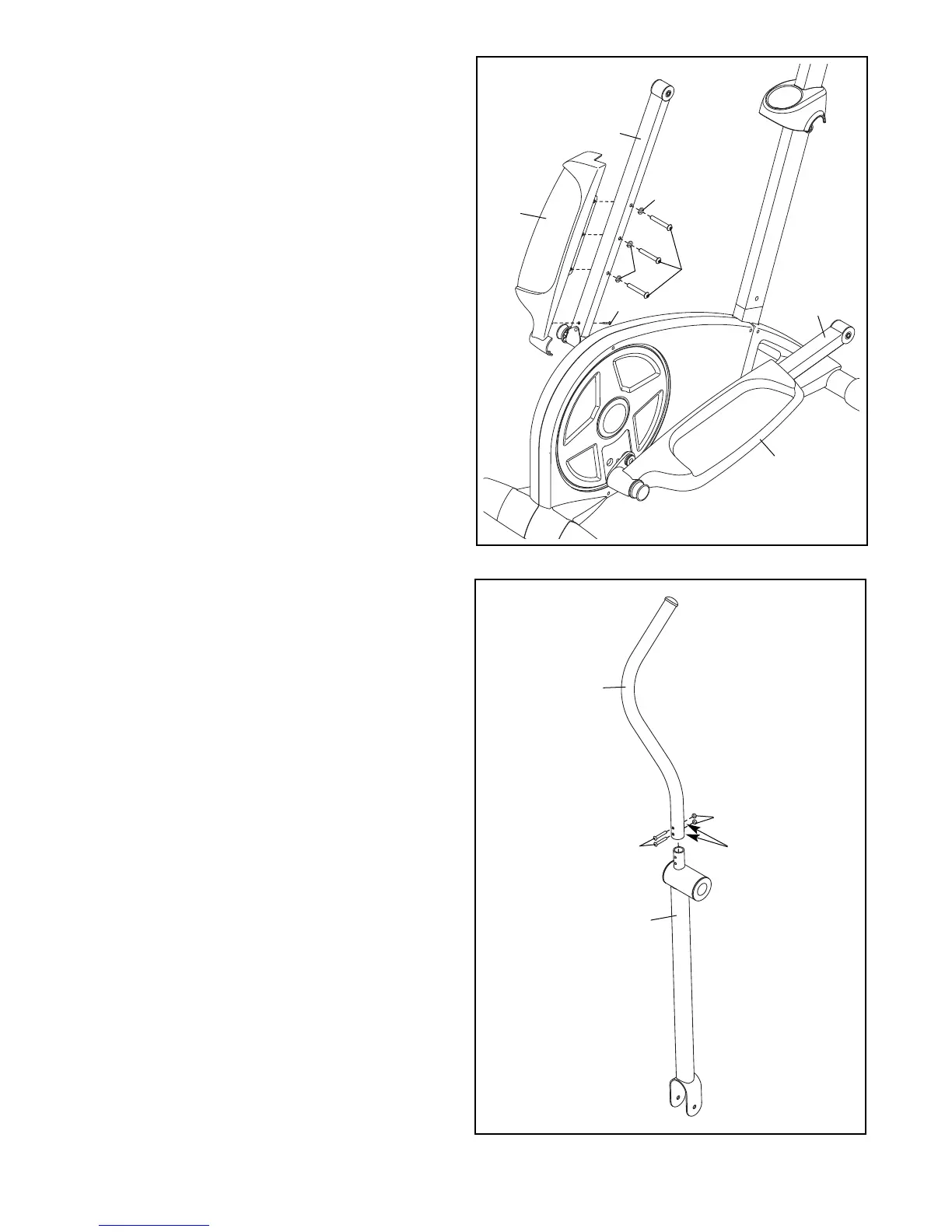

. Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Patch Screws (75),
three M10 Split Washers (78), and an M4 x
16mm Screw (84).
Repeat this step on the right side of the
e
lliptical exerciser.
8
1
4
14
75
78
78
12
13
84
9. Identify the Left Upper Body Arm (8), which is
marked with an “L” sticker. Orient the Left Upper
Body Arm and the left Upper Body Leg (6) as
shown; make sure that the hexagonal holes in
the Left Upper Body Arm are in the indicated
location.
Slide the Left Upper Body Arm (8) onto the left
Upper Body Leg (6). Attach the Left Upper Body
Arm with two M6 x 38mm Button Bolts (76) and
two M6 Locknuts (77); make sure that the
Locknuts are inside the hexagonal holes.
Repeat this step for the Right Upper Body
Arm and the right Upper Body Leg (not
shown).
9
8
77
76
Hexagonal
Holes
6
To Next Page
