Pro-Form 490 LE User Manual

11

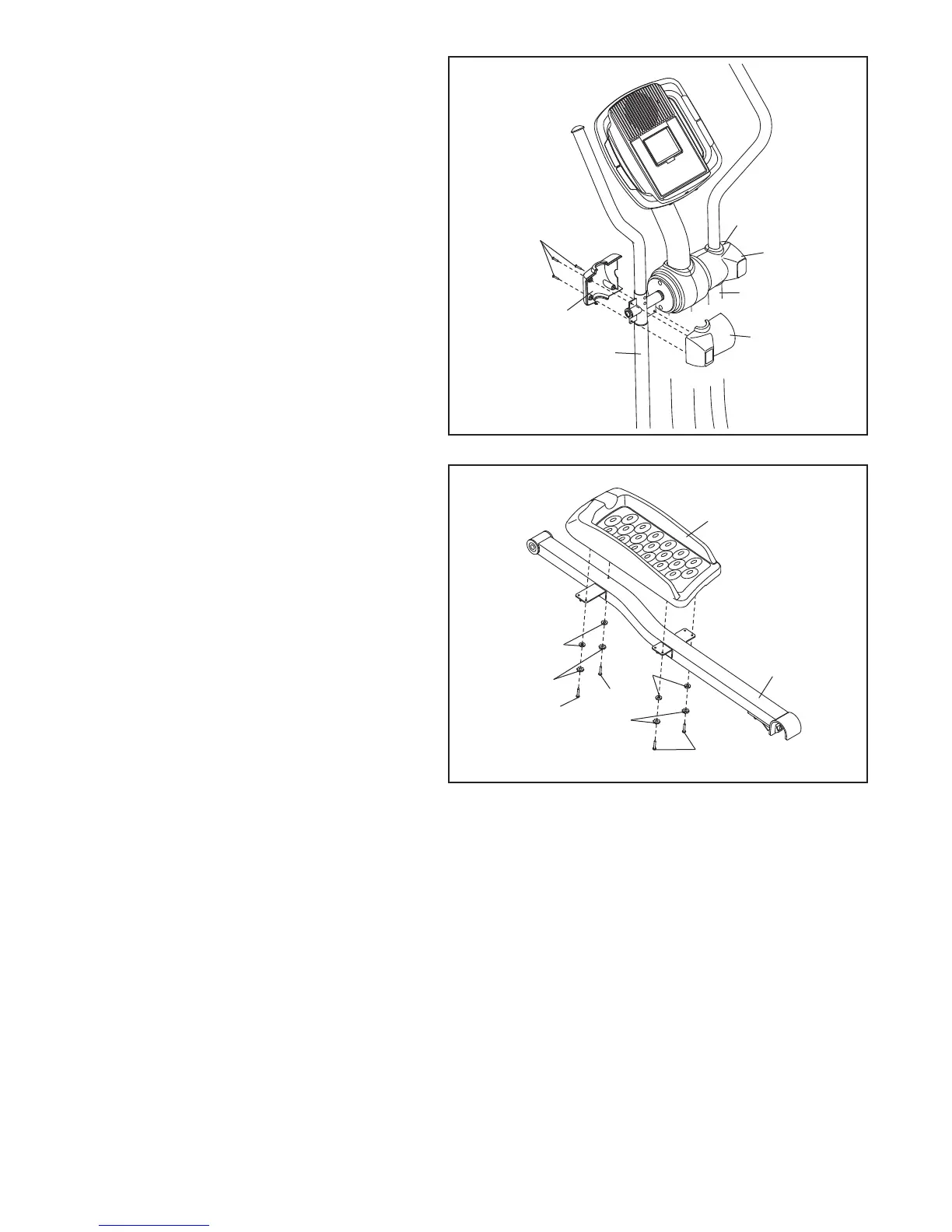

11. Hold the Left Front Handlebar Cover (18)
and the Left Rear Handlebar Cover (19)
around the Left Upper Body Leg (11).
Attach the Handlebar Covers (18, 19) with
t
hree M4 x 32mm Round Head Screws
(105).
Attach the Right Front Handlebar Cover
(20) and the Right Rear Handlebar Cover
(21) in the same way.
2
0
21
105
12
19
1
1
18
11
12. Identify the Left Pedal (13) and the Left
Pedal Arm (14), which are marked with
“Left” stickers.
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 47mm Screw (108),
three M4 x 16mm Blunt Screws (104), four
M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to
the Right Pedal Arm (not shown) in the
same way.
12
13
14
104
104
112
102
102
112
108
