10

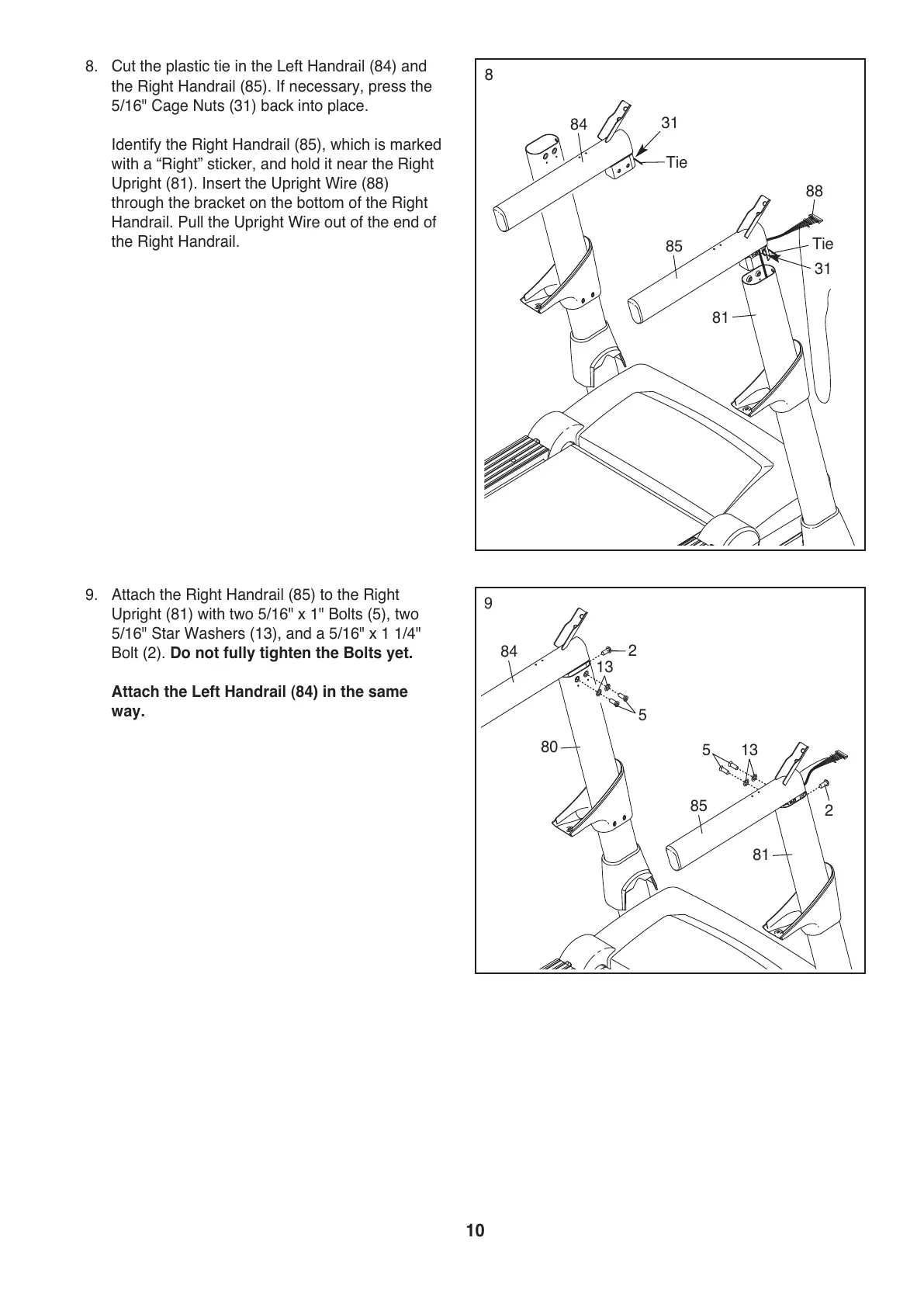

9. Attach the Right Handrail (85) to the Right
Upright (81) with two 5/16" x 1" Bolts (5), two
5/16" Star Washers (13), and a 5/16" x 1 1/4"
Bolt (2). Do not fully tighten the Bolts yet.
Attach the Left Handrail (84) in the same
way.
9
80
85
84
2
2
5
5
13
13
8. Cut the plastic tie in the Left Handrail (84) and
the Right Handrail (85). If necessary, press the
5/16" Cage Nuts (31) back into place.
I
dentify the Right Handrail (85), which is marked
with a “Right” sticker, and hold it near the Right
Upright (81). Insert the Upright Wire (88)
through the bracket on the bottom of the Right
H
andrail. Pull the Upright Wire out of the end of
the Right Handrail.
84
85
8
81
31
88
Tie
31
T
ie
81
