Pro-Form 600 LT - Page 13

13

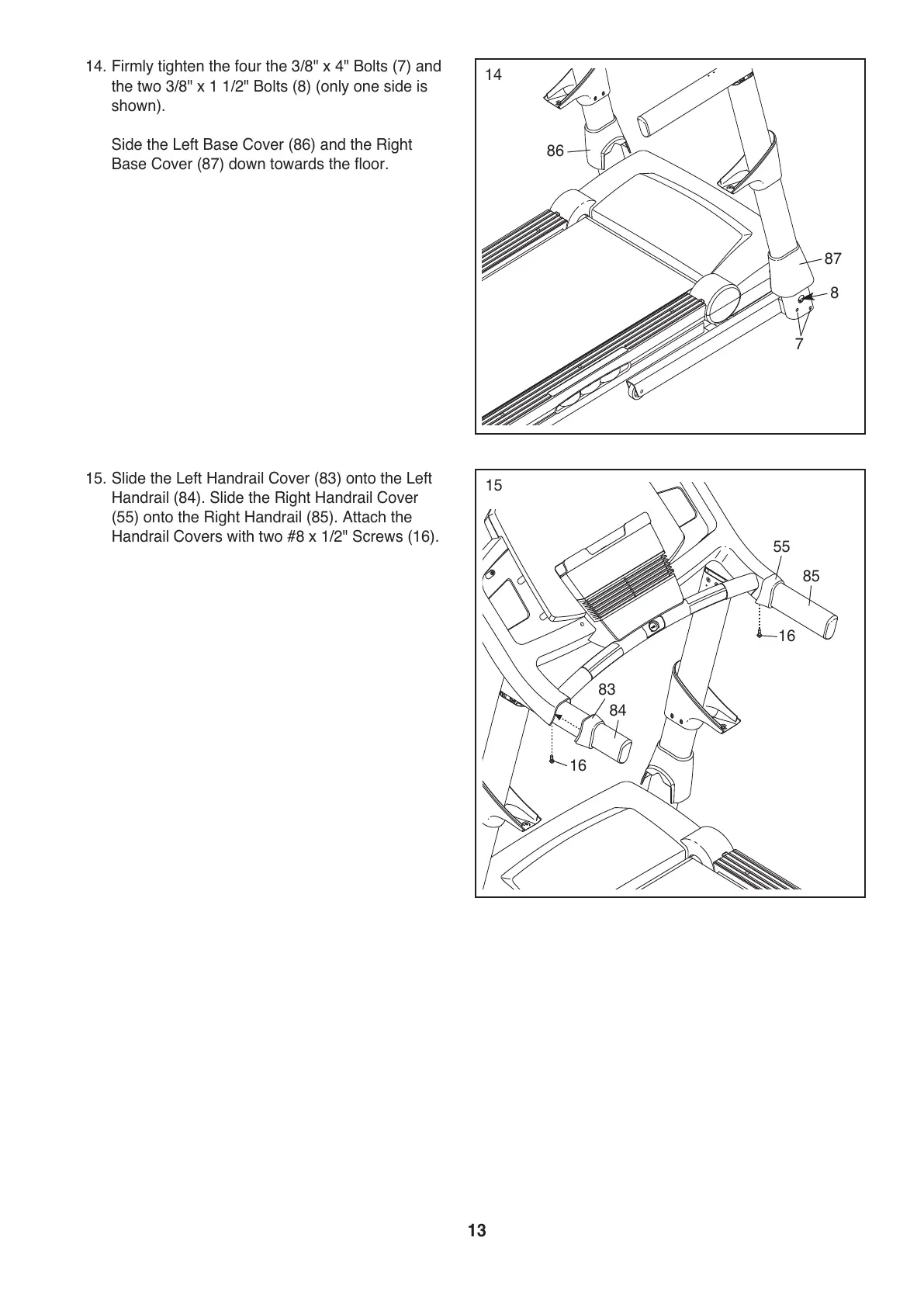

14. Firmly tighten the four the 3/8" x 4" Bolts (7) and
the two 3/8" x 1 1/2" Bolts (8) (only one side is
shown).
S
ide the Left Base Cover (86) and the Right
Base Cover (87) down towards the floor.
14
86
7
87
8
15. Slide the Left Handrail Cover (83) onto the Left
Handrail (84). Slide the Right Handrail Cover
(55) onto the Right Handrail (85). Attach the
Handrail Covers with two #8 x 1/2" Screws (16).
15
83
55
16
16
85
84
