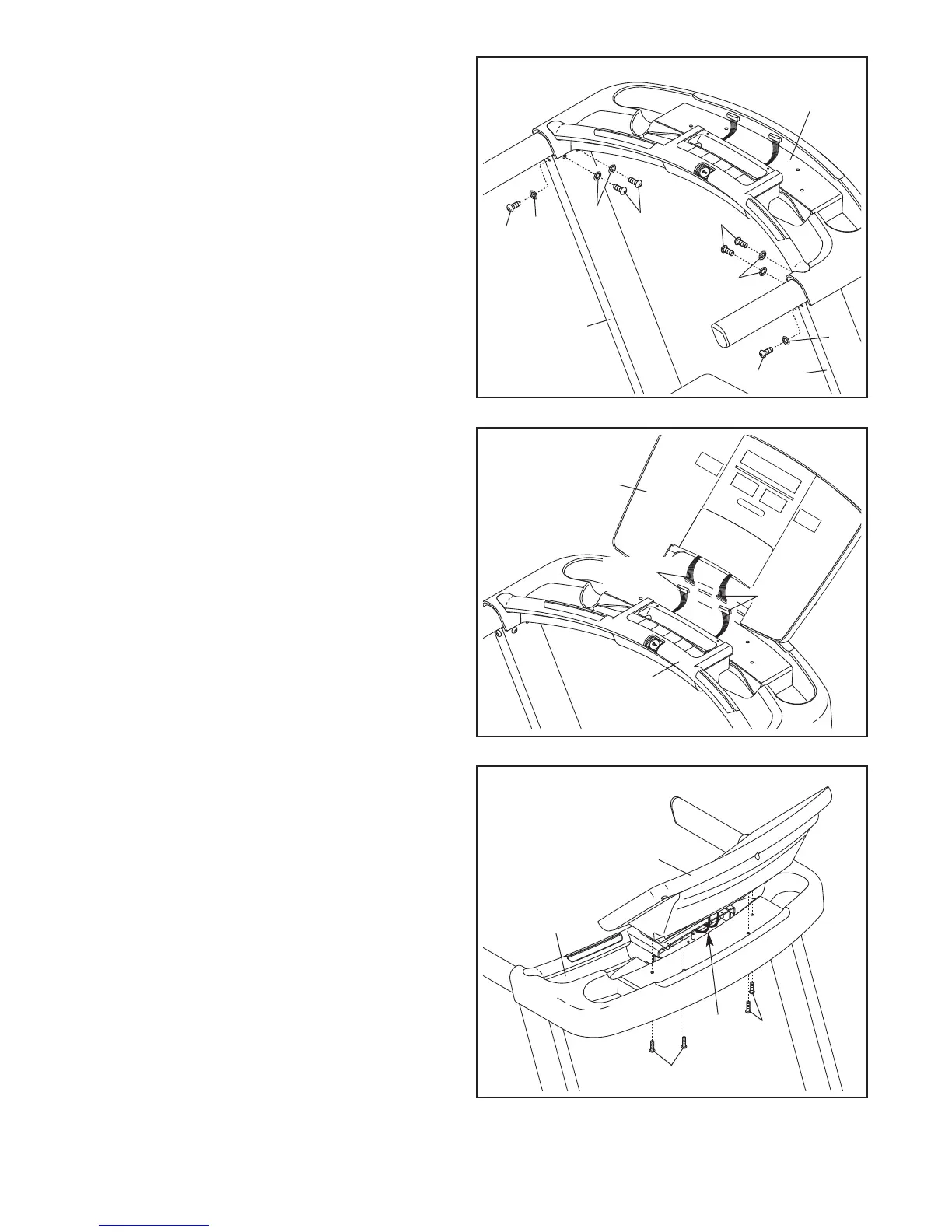

10. Insert the wires from the console assembly into
the handrail assembly.
Attach the console assembly to the handrail as-
sembly with four 1/4" x 3/4" Bolts (5). Be careful
not to pinch the wires.
Console
Assembly
5
5
Wires
Handrail
Assembly
10
10
8. Attach the handrail assembly to the Uprights
(
77, 78) with six 5/16" x 1" Bolts (3) and six
5/16" Star Washers (9) as shown.
See assembly steps 4 and 6. Firmly tighten
t
he 3/8" x 4" Bolts (4).
3
9
78
Handrail
Assembly
8
9. Have a second person hold the console assem-
bly near the handrail assembly.
Connect the two wires from the console assem-
bly to the two wires from the handrail assembly.
See the inset drawing in step 7. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Handrail
Assembly
Console
Assembly
9
77
3
3
3
9
9
9
Wires
Wires
