2. Attach a Wheel (85) to the Base (84) with a
3/8" x 2" Bolt (6) and a 3/8" Nut (7). Do not
overtighten the Nut; the Wheel must turn
freely.
84
6
7
2
85
1

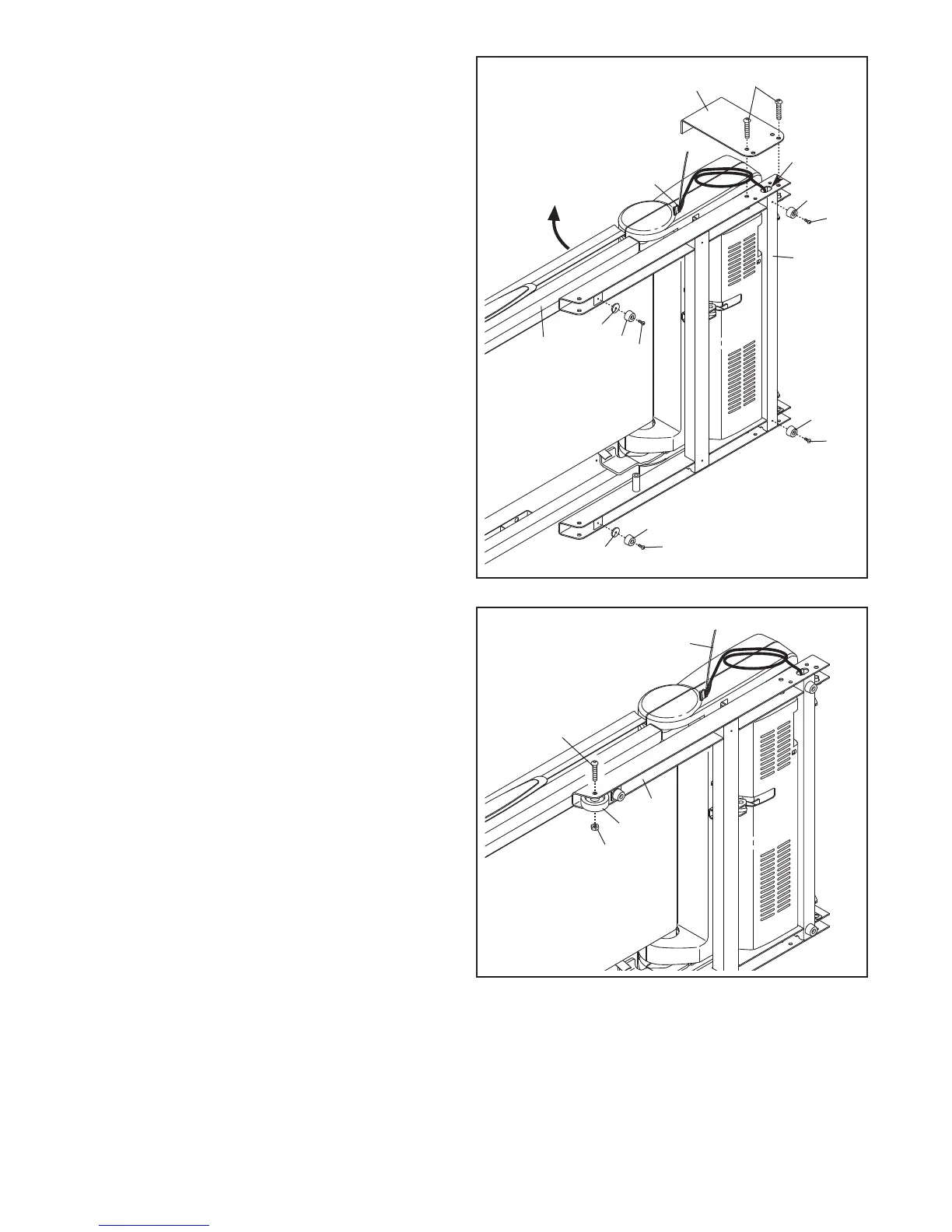

. Make sure that the power cord is unplugged.
W
ith the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (52) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the shipping tie securing the Wire Harness
(87) to the Base (84). Locate a plastic tie in the
indicated hole in the Base, and use the plastic
tie to pull the Wire Harness out of the hole.
Attach two Base Feet (86) to the Base (84) in the
locations shown with two #8 x 1" Tek Screws (1)
and two Base Foot Spacers (83).
Then, attach the other two Base Feet (86) with
two #8 x 1" Tek Screws (1).
1
84
1
52
86
86
1
1
1
86
83
86
87
Hole
83
Plastic Tie
A
B
To Next Page
