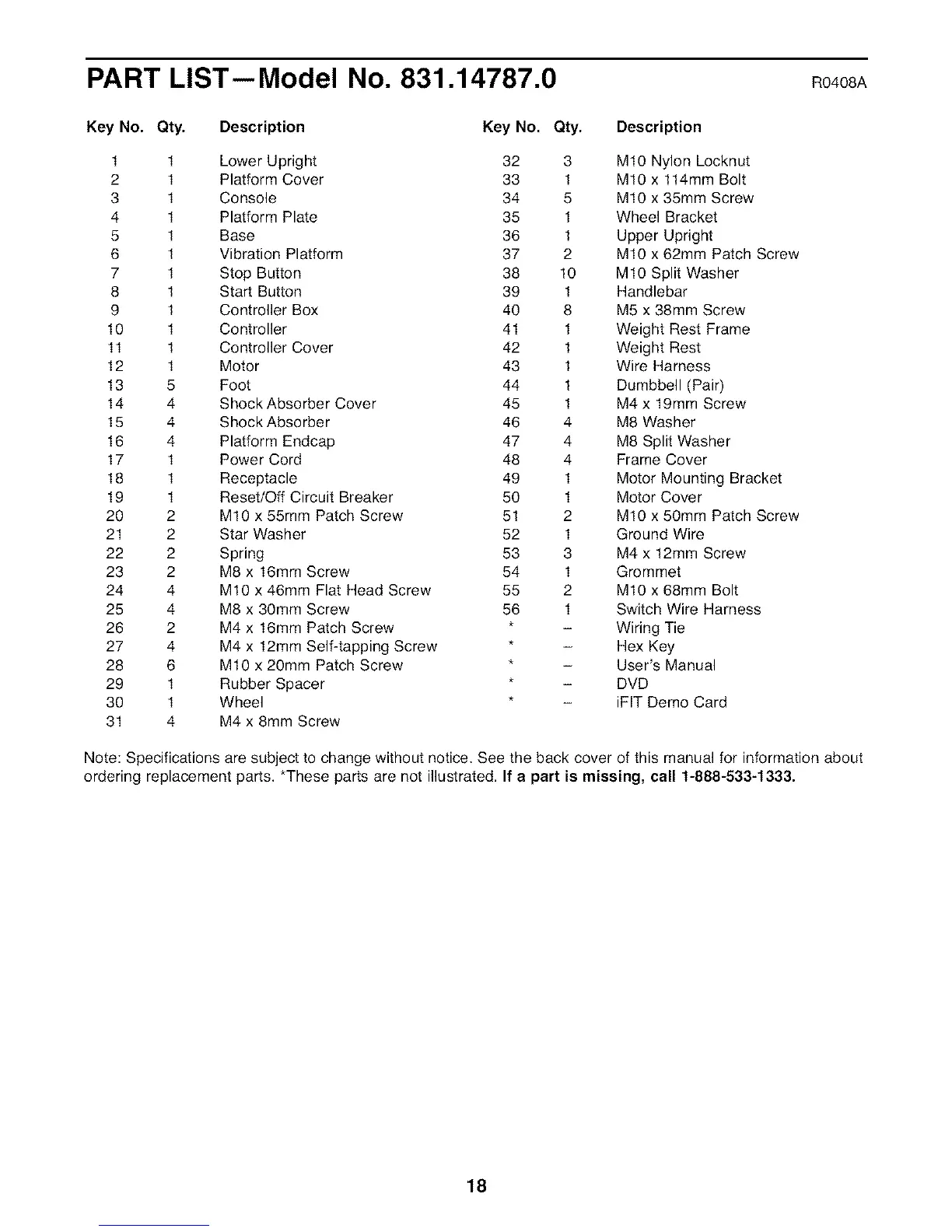

PART LIST--Model No. 831.14787.0 Ro4o8A
Key No. Qty. Description Key No. Qty. Description
1 1 Lower Upright 32 3 M10 Nylon Locknut
2 1 Platform Cover 33 ! M10 x 114mm Bolt
3 1 Console 34 5 M10 x 35mm Screw
4 1 Platform Plate 35 1 Wheel Bracket
5 ! Base 36 1 Upper Upright
6 1 Vibration Platform 37 2 M10 x 62mm Patch Screw
7 1 Stop Button 38 10 M10 Split Washer
8 ! Start Button 39 ! Handlebar
9 ! Controller Box 40 8 M5 x 38mm Screw
10 1 Controller 41 1 Weight Rest Frame
11 ! Controller Cover 42 ! Weight Rest
12 1 Motor 43 ! Wire Harness
13 5 Foot 44 1 Dumbbell (Pair)
14 4 Shock Absorber Cover 45 ! M4 x 19mm Screw
15 4 Shock Absorber 46 4 M8 Washer
16 4 Platform Endcap 47 4 M8 Split Washer
17 1 Power Cord 48 4 Frame Cover
18 1 Receptacle 49 1 Motor Mounting Bracket
19 1 Reset/Off Circuit Breaker 50 1 Motor Cover
20 2 M10 x 55mm Patch Screw 51 2 M10 x 50mm Patch Screw
21 2 Star Washer 52 1 Ground Wire
22 2 Spring 53 3 M4 x 12mm Screw
23 2 M8 x 16mm Screw 54 1 Grommet
24 4 M!0 x 46mm Flat Head Screw 55 2 M10 x 68mm Bolt
25 4 M8 x 30ram Screw 56 1 Switch Wire Harness
26 2 M4 x 16mm Patch Screw - Wiring Tie
27 4 M4 x 12mm Self-tapping Screw - Hex Key
28 6 M10 x 20mm Patch Screw - User's Manual
29 1 Rubber Spacer - DVD
30 1 Wheel - iFIT Demo Card
31 4 M4 x 8mm Screw
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-888-533-t333.
