9
8. Cut the plastic ties from the brackets on the
Right Handrail (90) and Left Handrail (not
shown). Press the Cage Nuts (38) back into
place if necessary.

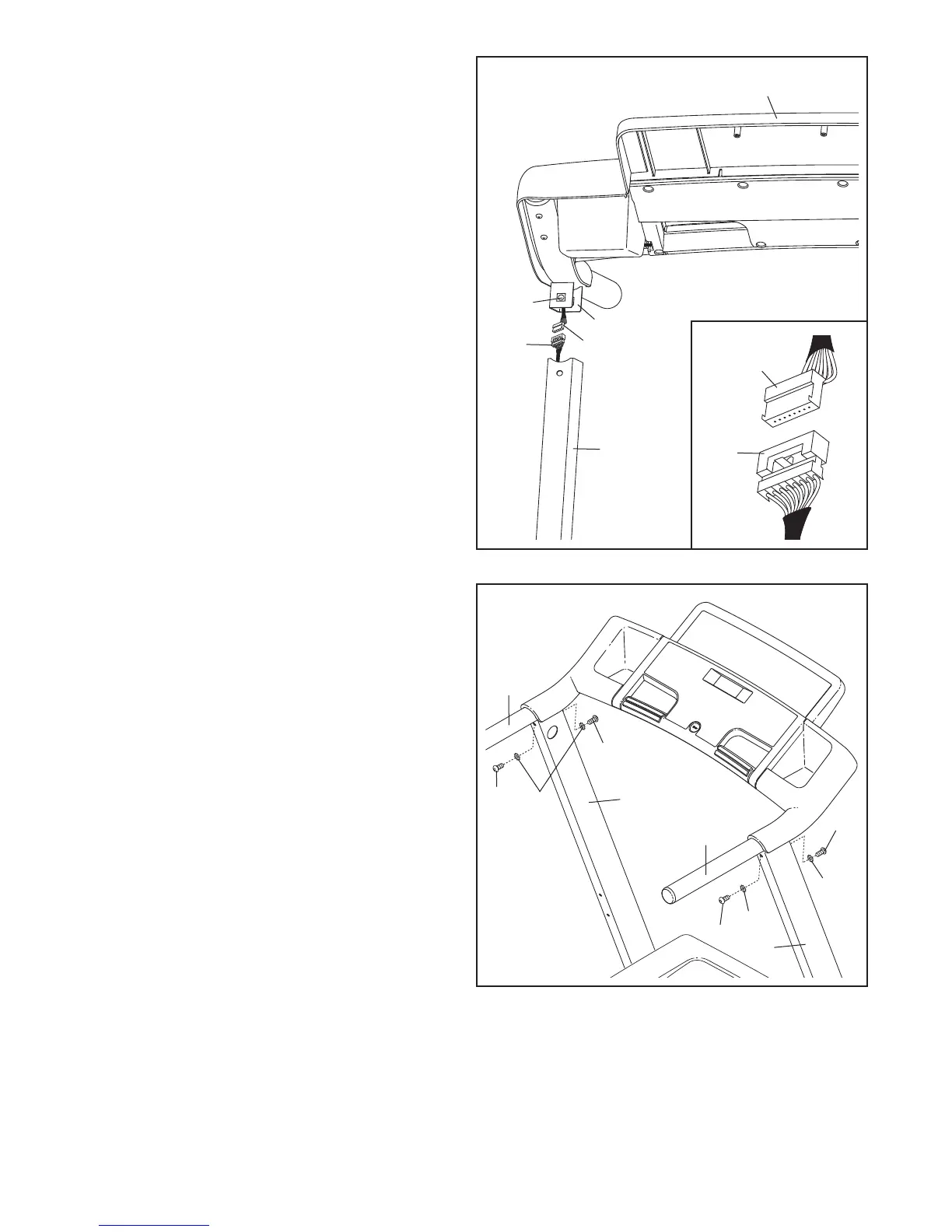

Have a second person hold the console assem-
bly near the Right Upright (78). Connect the
Upright Wire (77) to the console wire. See the
i
nset drawing. The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Then, insert the connectors into the Right
Upright (78). Remove the wire ties from the
Upright Wire (77) and the console wire.
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Make
sure that no wires are pinched.
78
Console Assembly
Console Wire
77
8
9. Partially tighten two M8 x 25mm Bolts (6) with
two M8 Star Washers (10) into the Left Upright
(73) and the Left Handrail (89).
Next, partially tighten two M8 x 25mm Bolts (6)
with two M8 Star Washers (10) into the Right
Upright (78) and the Right Handrail (90). Then,
tighten all four Bolts.
See steps 4 and 6. Tighten the four M10 x
96mm Bolts (5).
6
6
6
10
73
10
6
10
89
90
78
9
77
38
Console
Wire
90
To Next Page
