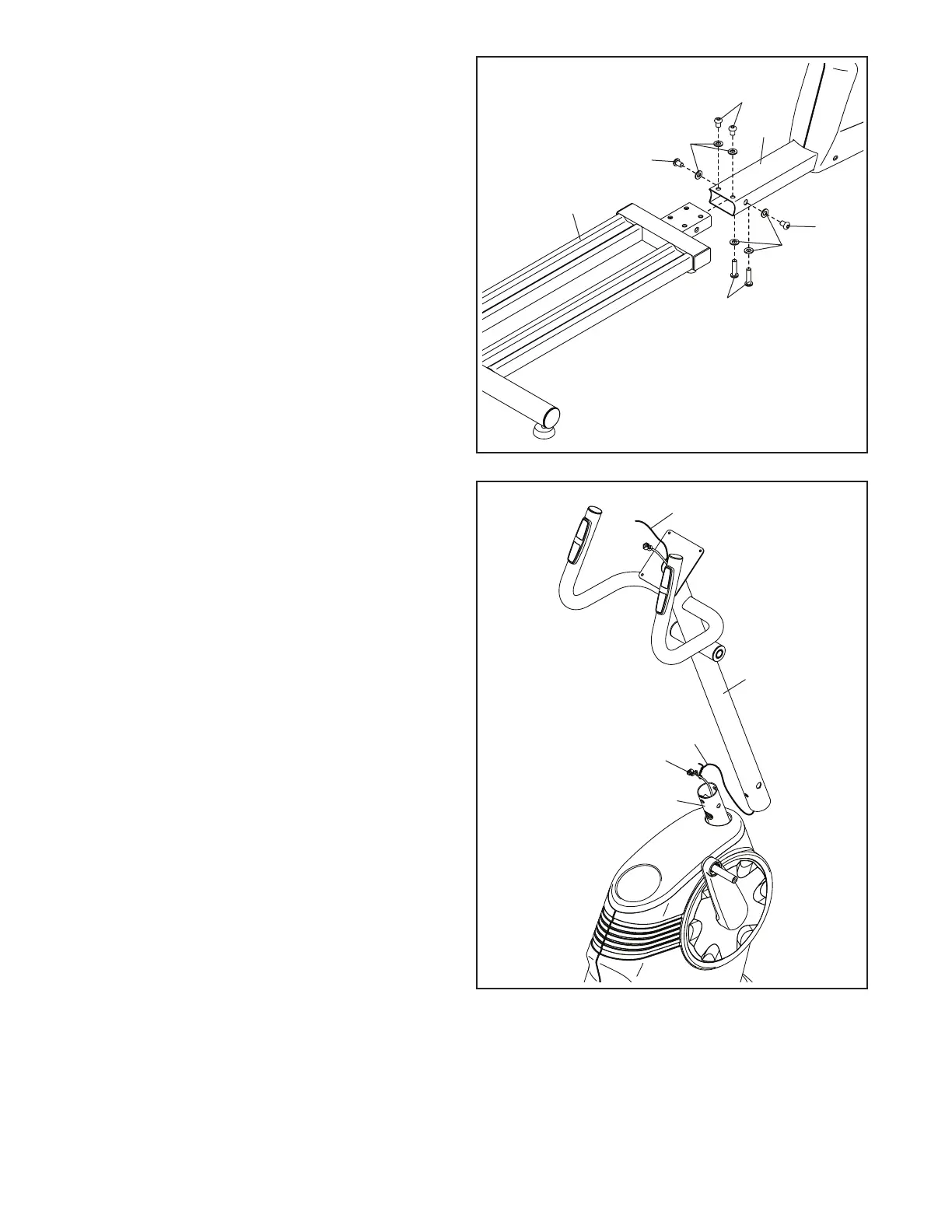

3. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1).
Attach the Track (11) to the Frame (1) with four
M10 x 20mm Screws (74), two M10 x 38mm
Screws (75), and six M10 Washers (64) as
shown; start all the Screws, and then tighten
them.
Then, remove the packing materials from under
the Frame (1).
4. Have a second person hold the Upright (2) near
the Frame (1).
Locate the wire tie in the Upright (2). Tie the
lower end of the wire tie to the Main Wire (32).
Then, pull the upper end of the wire tie until the
Main Wire is routed through the Upright.
Tip: Secure the Main Wire (32) to the Upright
(2) with the wire tie to prevent it from falling
into the Upright.
To Next Page
