9
5
2
1
72
74
73
77
80
80
62
Hexagonal Hole
62
32
6

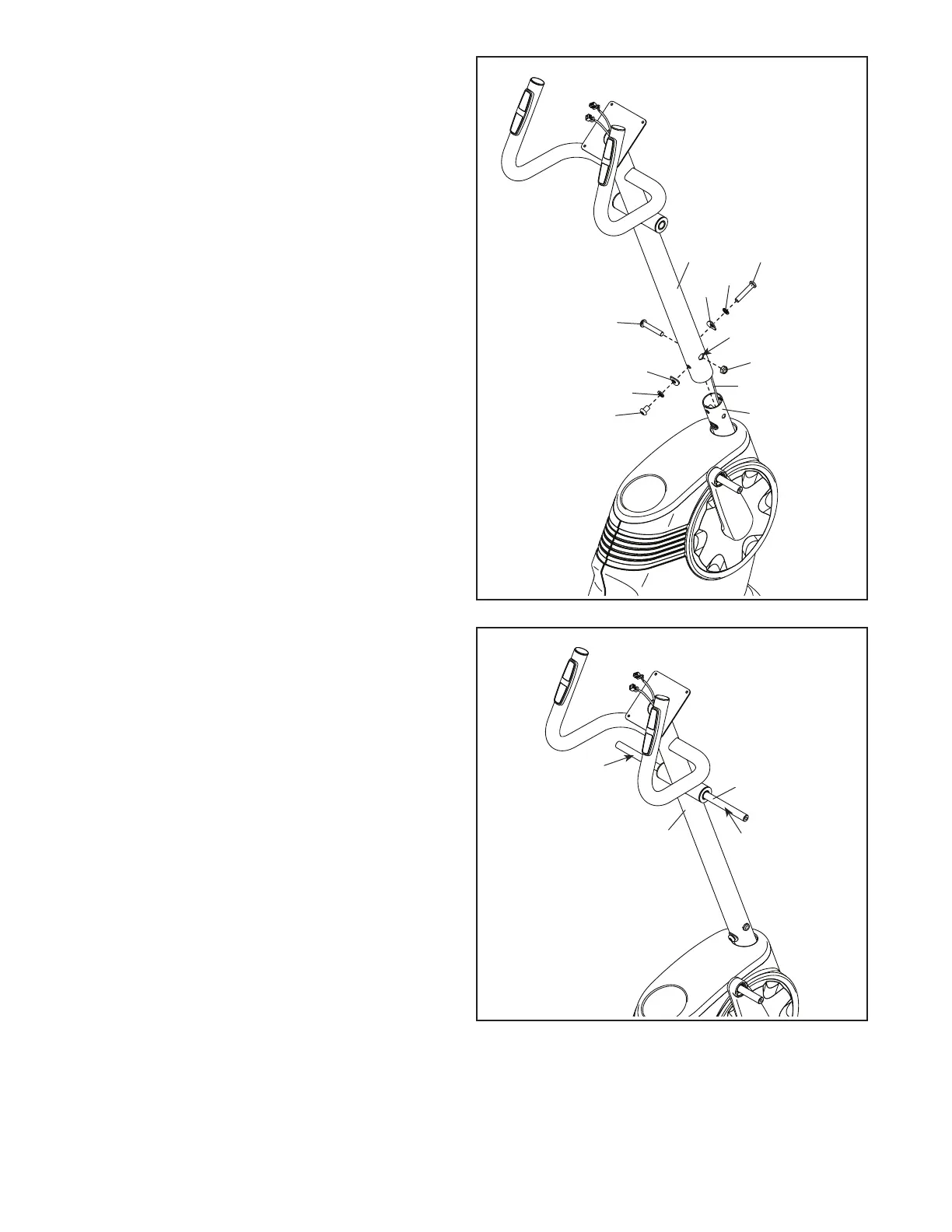

5. Tip: Avoid pinching the Main Wire (32). Slide
the Upright (2) onto the Frame (1).
Attach the Upright (2) with an M10 x 53mm
Screw (73), an M10 x 20mm Screw (74), two
M10 Split Washers (80), and two M10 Curved
Washers (62) as shown; do not fully tighten
the Screws yet.
Finish attaching the Upright (2) with an
M10 x 60mm Bolt (72) and an M10 Locknut (77);
do not fully tighten the Screws yet. Make sure
that the Locknut is in the hexagonal hole.
Grease
Grease
18
2
Avoid pinching
the Main Wire
(32)
6. Insert the Upright Axle (18) into the Upright (2)
and center it.
Using a plastic bag to keep your fingers clean,
apply some of the included grease to both ends
of the Upright Axle (18).
To Next Page
