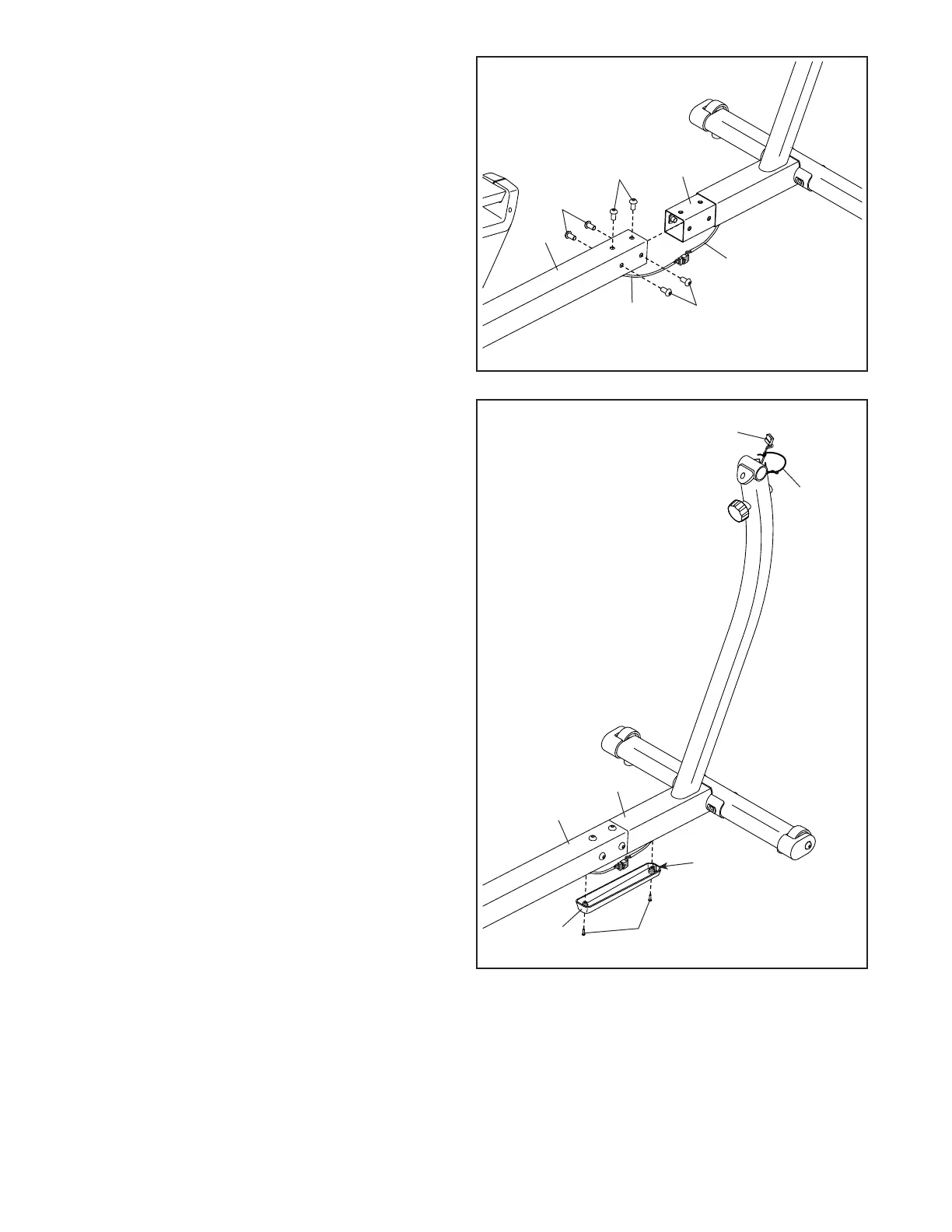

5. Tip: Avoid pinching the wires. Insert the
Upright (2) into the Frame (1).
Attach the Upright (2) with six M10 x 20mm
Screw (76); start all the Screws, and then
tighten them.
Then, connect the Upper Wire (94) to the Main
Wire (96). Tip: The wire connectors should
slide together easily and snap into place with
an audible click. If they do not, turn one con-
nector and try again.
Avoid pinching
the wires
Avoid pinching
the wires
6
6. Locate the wire tie (E) in the top of the Upright
(2), and pull the Upper Wire (94) out of the
Upright. Then, untie and discard the wire tie.
Tip: Avoid pinching the wires. Attach the Wire
Cover (20) to the Frame (1) and the Upright (2)
with two M4 x 16mm Screws (84). Make sure
that the tab (F) on the Wire Cover is in the
location shown.
84
F
20
94
2
2
1
1
E
