5. 5

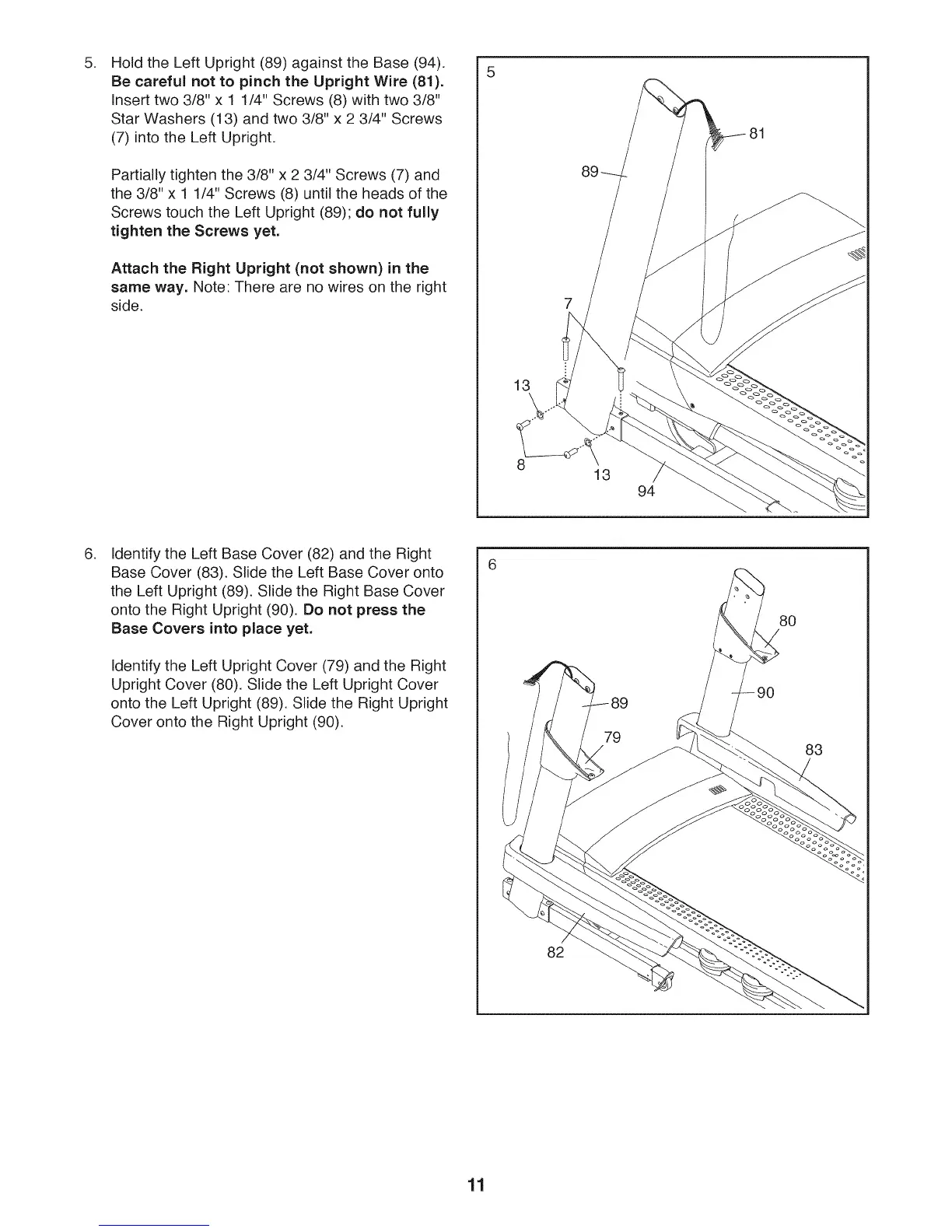

Hold the Left Upright (89) against the Base (94).
Be careful not to pinch the Upright Wire (81).
Insert two 3/8" x 1 1/4" Screws (8) with two 3/8"
Star Washers (13) and two 3/8" x 2 3/4" Screws
(7) into the Left Upright.
Partially tighten the 3/8" x 2 3/4" Screws (7) and
the 3/8" x 1 1/4" Screws (8) until the heads of the
Screws touch the Left Upright (89); do not fully
tighten the Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the right
side.
13
89
7
13
94
.
identifythe Left Base Cover (82) and the Right
Base Cover (83). Slide the Left Base Cover onto
the Left Upright (89). Slide the Right Base Cover
onto the Right Upright (90). Do not press the
Base Covers into place yet.
identifythe Left Upright Cover (79) and the Right
Upright Cover (80). Slide the Left Upright Cover
onto the Left Upright (89). Slide the Right Upright
Cover onto the Right Upright (90).
82
80
83
11
To Next Page
