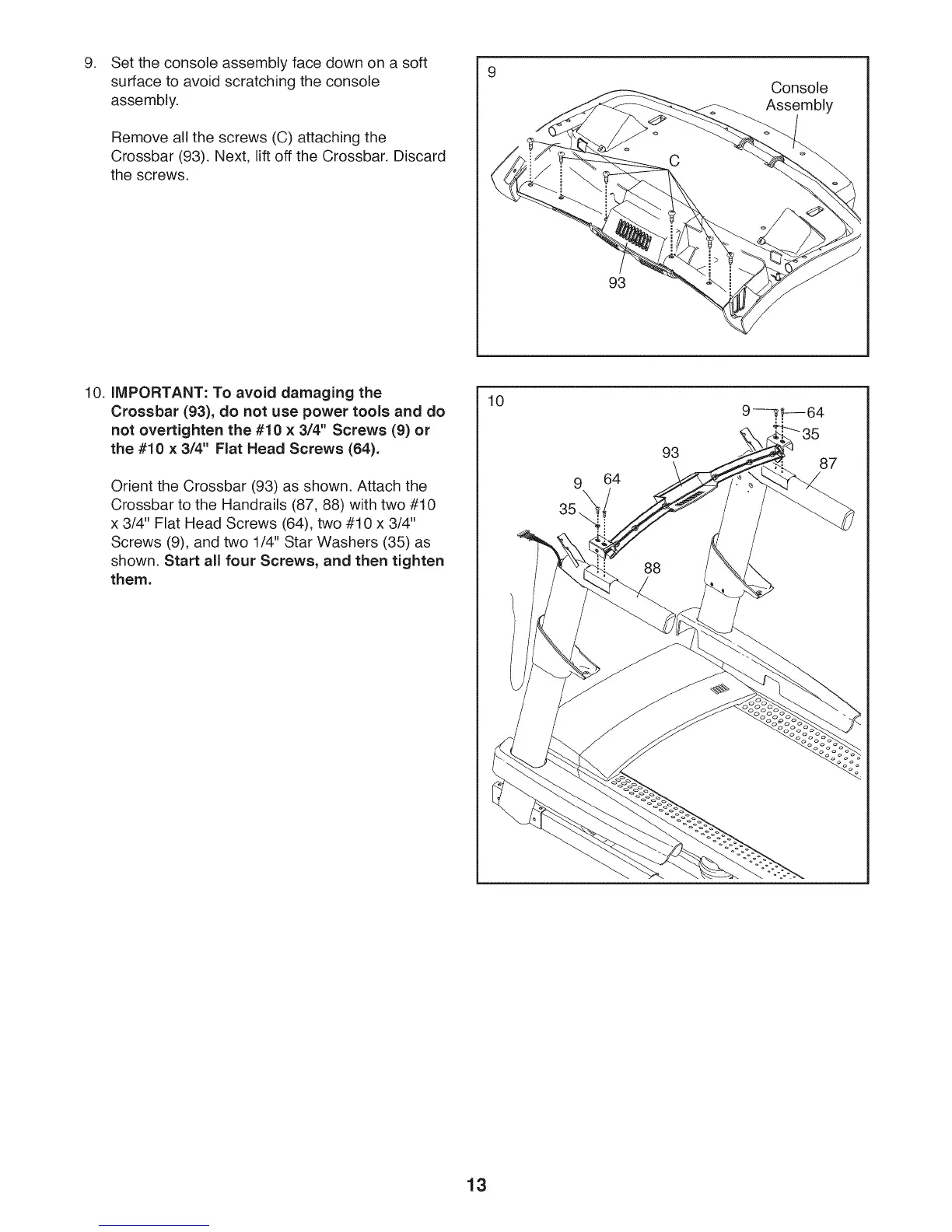

Set the console assembly face down on a soft
surface to avoid scratching the console
assembly.
Remove all the screws (C) attaching the
Crossbar (93). Next, lift off the Crossbar. Discard
the screws.
93
Console
Assembly
10. iMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9) or
the #10 x 3/4" Fiat Head Screws (64).
Orient the Crossbar (93) as shown. Attach the
Crossbar to the Handrails (87, 88) with two #10
x 3/4" Flat Head Screws (64), two #10 x 3/4"
Screws (9), and two 1/4" Star Washers (35) as
shown. Start all four Screws, and then tighten
them.
10
9 64
93
9 ----_--- 64
87
13
To Next Page
