9

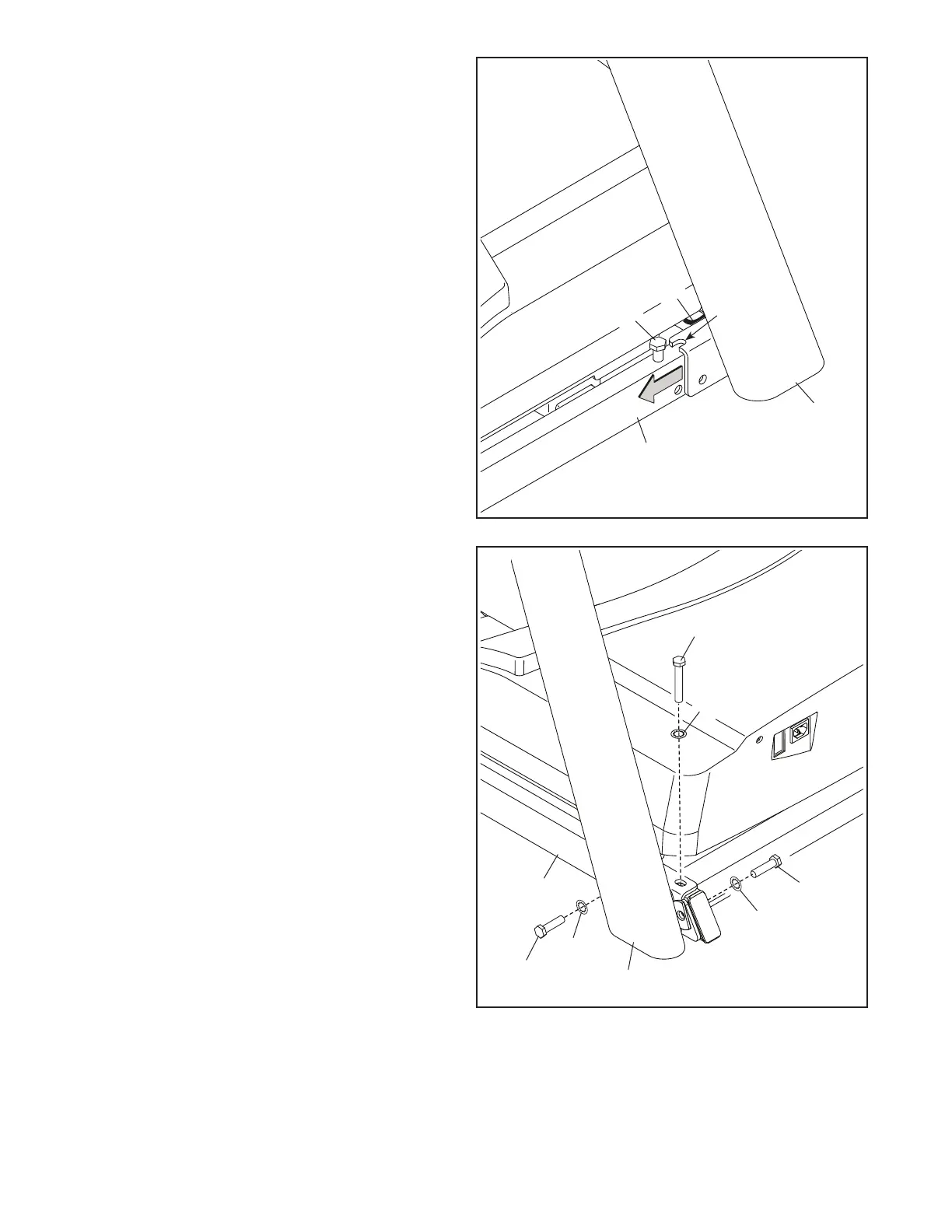

5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as shown
in steps 4 and 5. Note: There are no wires on
the left side.
4. Set the Right Upright (79) on the Base (88) as
shown. Make sure not to pinch the Upright
Wire (80). Then, slide the Right Upright so
that the 3/8" x 2 3/8" Screw (2) in the Base is
inserted into the slot in the Right Upright. Do
not tighten the Screw yet.
5
4
4
3
88
6
88
6
79
79
Slot
2
6
2
80
To Next Page
