8
3
14
14
14
38
38
2
44
37
34
3
33
8

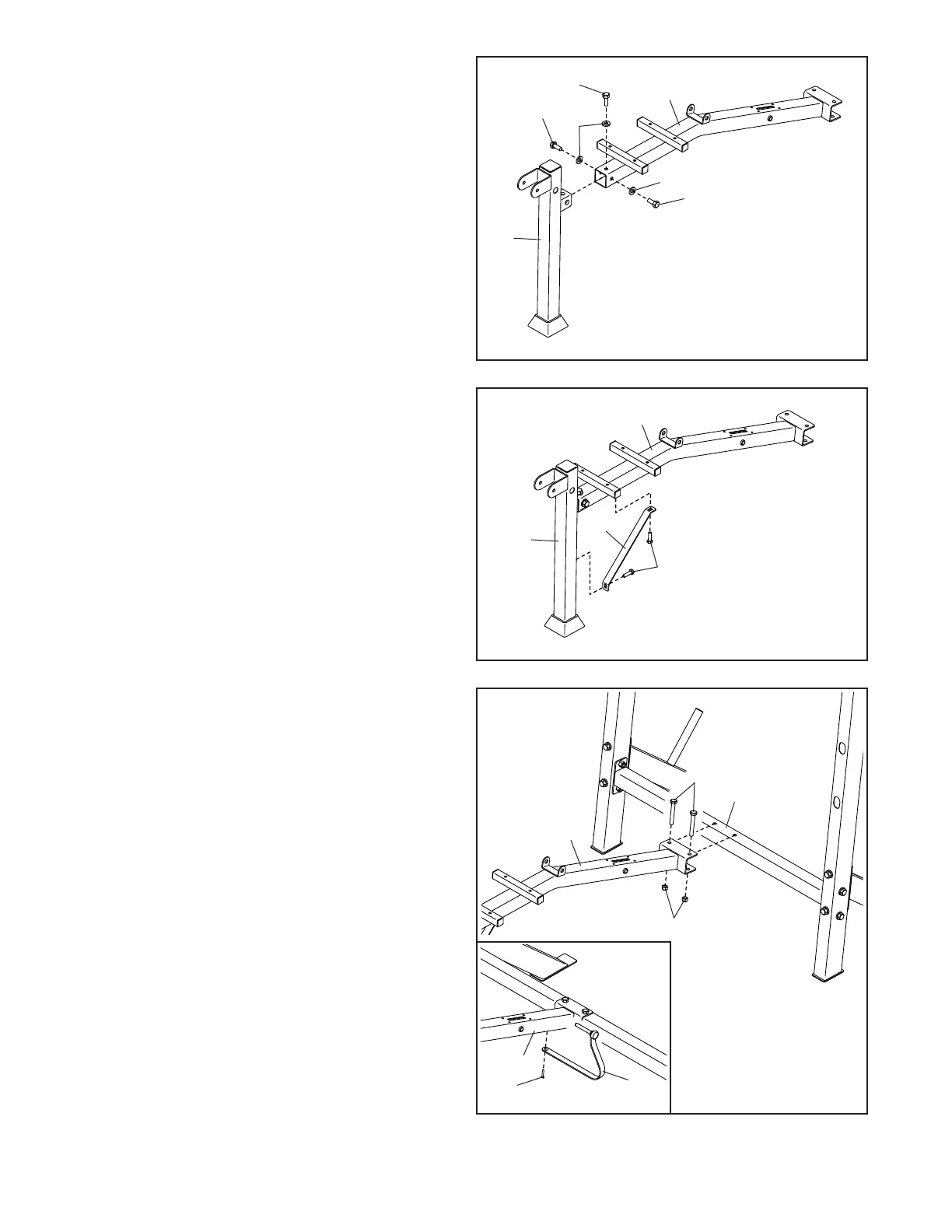

3. Attach the Front Leg (8) to the Seat Frame (2)
with three M10 x 20mm Screws (14) and three
M10 Washers (38); do not tighten the
Screws yet.
4. Attach the Brace (44) to the Front Leg (8) and to
the Seat Frame (2) with two M8 x 20mm Screws
(37); do not tighten the Screws yet.
4
5
5. Attach the Seat Frame (2) to the Crossbar (3)
with two M10 x 70mm Bolts (34) and two M10
Locknuts (33).
See the inset drawing. Attach the tether on
the Lock Pin (36) to the Seat Frame (2) with an
M4 x 19mm Screw (22).
See steps 2–4. Tighten the M10 Locknuts
(33), the M10 x 20mm Screws (14), and the
M8 x 20mm Screws (37).
8
2
2
2
22
36
