12
8

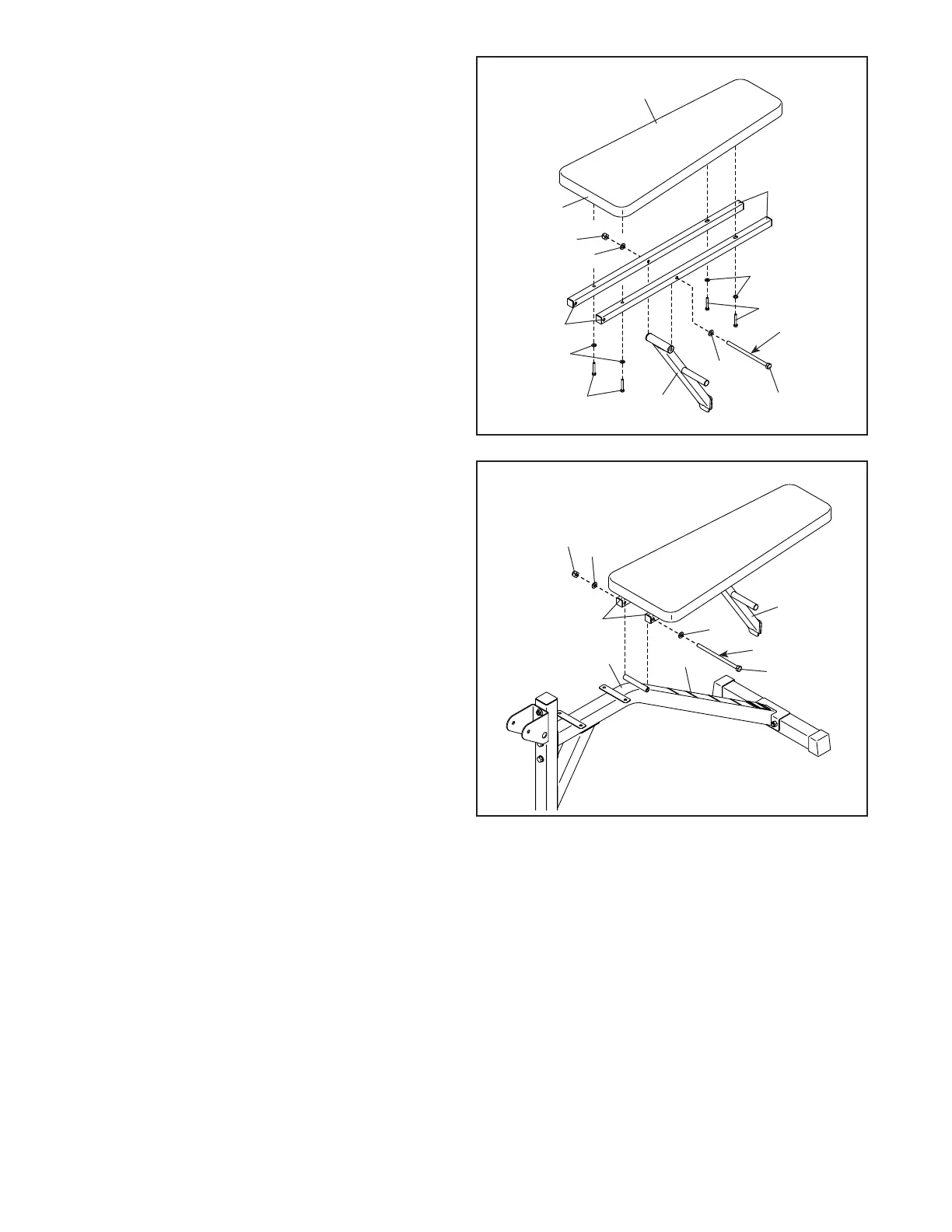

8. Using a plastic bag to keep your fingers clean,
apply some of the included grease to an
M10 x 170mm Bolt (55).
Next, orient the two Backrest Frames (37) so
that the indicated holes (C) are in the position
shown. Then, orient the Backrest Post (36) as
shown. Attach the Backrest Post to the Backrest
Frames with the M10 x 170mm Bolt (55), two
M10 Washers (19), and an M10 Locknut (17); do
not tighten the Locknut yet.
Then, orient the Backrest (40) so that the wide
end (D) is in the position shown, and attach it to
the Backrest Frames (37) with four M6 x 40mm
Screws (56) and four M6 Washers (59); do not
tighten the Screws yet.
C
D
37
55
19
19
17
40
59
59
36
56
56
Grease
9. Apply grease to an M10 x 170mm Bolt (55).
Attach the Backrest Frames (37) to the Frame
(22) with the M10 x 170mm Bolt (55), two M10
Washers (19), and an M10 Locknut (17). Do
not overtighten the Locknut; the Backrest
Frames must pivot easily.
Then, set the end of the Backrest Post (36) in
one of the slots (E) in the Frame (22).
See step 8. Tighten the M10 Locknut (17)
and the four M6 x 40mm Screws (56). Do not
overtighten the Locknut; the Backrest Post
(36) must pivot easily. To avoid damaging the
Backrest (40), tighten the Screws only until
the Backrest does not move or feel loose.
9
19
19
17
36
E
22
37
55
Grease
