8
4

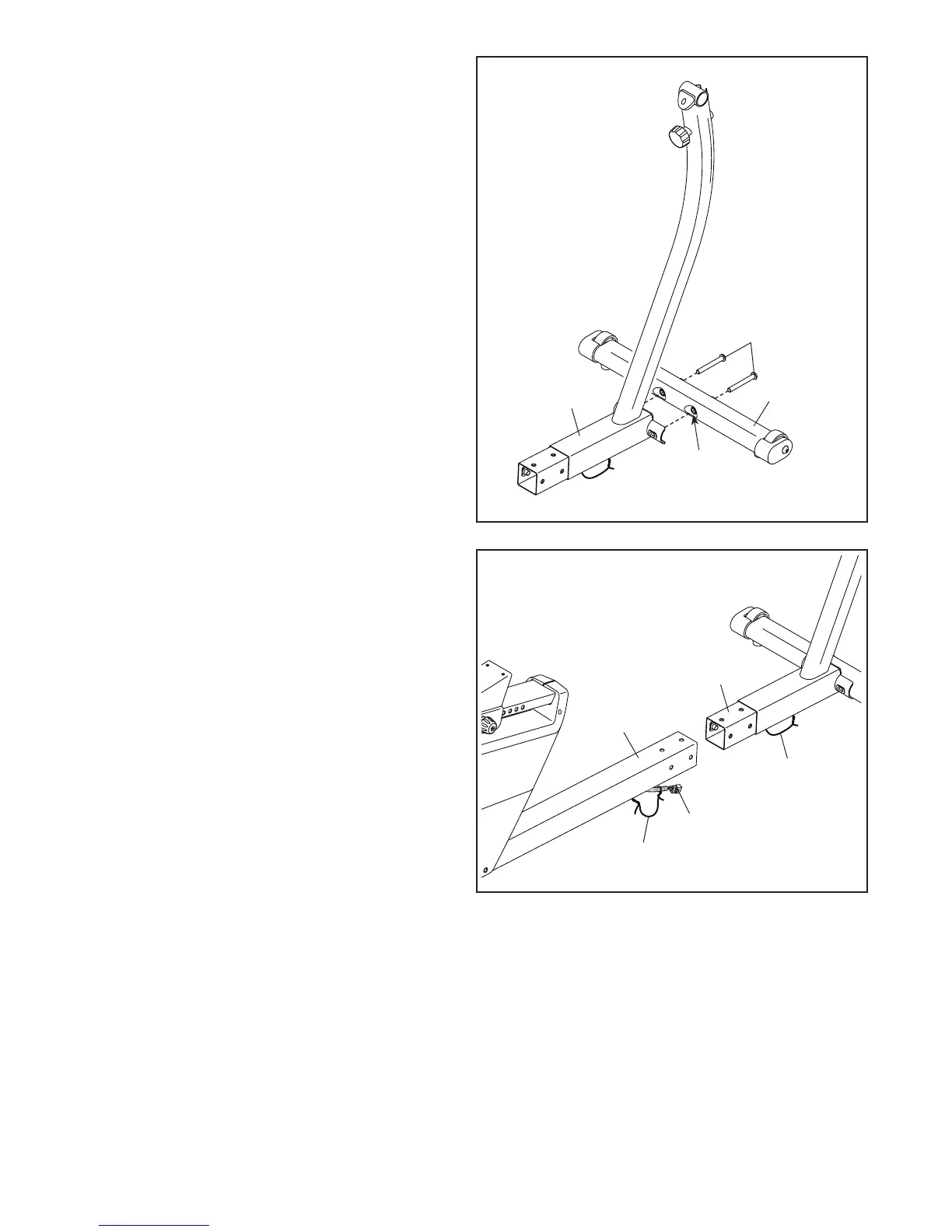

4. Set the Upright (2) near the Frame (1) as shown.
Locate the wire tie in the Frame (1) and pull
the Main Wire (96) out of the underside of the
Frame.
Repeat this action to pull the Upper Wire
(not shown) out of the underside of the
Upright (2).
Then, untie and discard the wire ties.
96
3
3. Orient the Upright (2) and the Front Stabilizer (5)
so that the large holes are facing the Upright.
Attach the Front Stabilizer (5) to the Upright (2)
with two M10 x 80mm Screws (19).
19
5
2
2
1
Large
Holes
Wire Tie
Wire Tie
To Next Page
