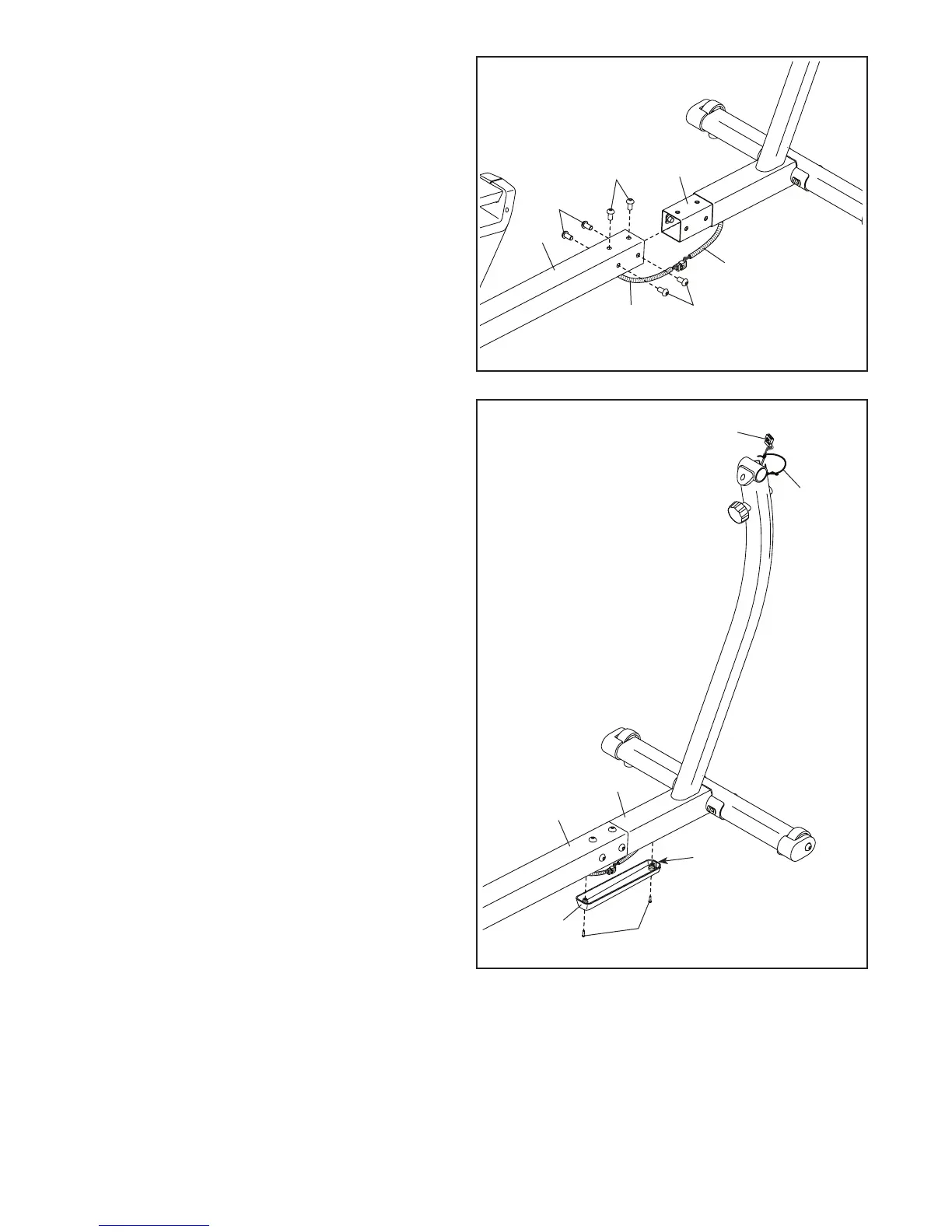

5. Tip: Avoid pinching the wires. Insert the
Upright (2) into the Frame (1).
Attach the Upright (2) with six M10 x 20mm
Screw (76); start all the Screws, and then
tighten them.
Then, connect the Upper Wire (94) to the Main
Wire (96).
Avoid pinching
the wires
Avoid pinching
the wires
6
6. Locate the wire tie in the top of the Upright (2)
and pull the Upper Wire (94) out of the Upright.
Then, untie and discard the wire tie.
Tip: Avoid pinching the wires. Attach the Wire
Cover (20) to the Frame (1) and the Upright (2)
with two M4 x 16mm Screws (115). Make sure
that the tab on the Wire Cover is in the loca-
tion shown.
115
Tab
20
94
2
2
1
1
Wire
Tie
