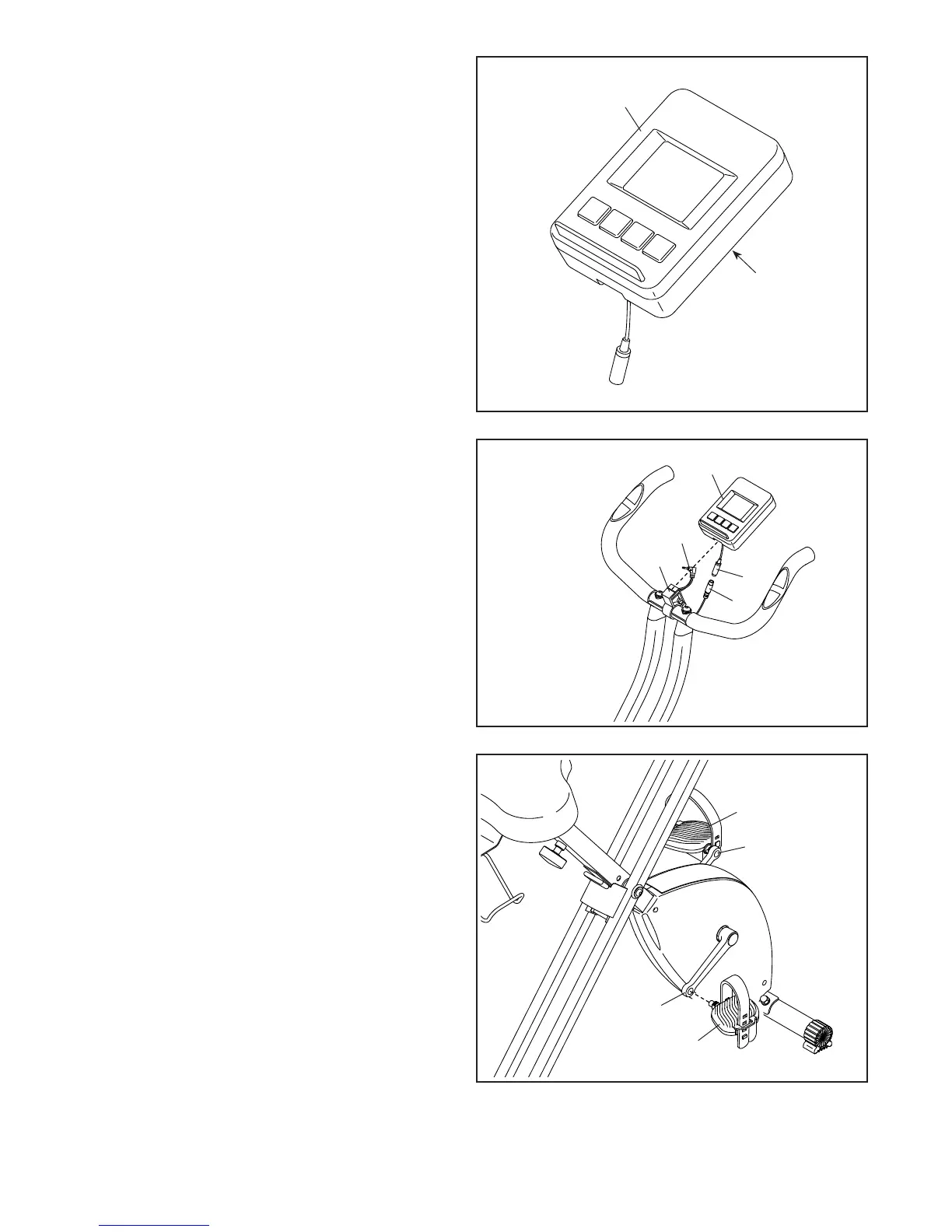

9. Have a second person hold the Console (6) near
the Console Mount (5). Connect the console wire
(B) to the Reed Switch Wire (45); make sure
to align the connectors properly and make
sure to press the connectors together firmly.
Then, plug the pulse wire (C) into the back of the
Console.
Tip: Avoid pinching the wires. Slide the
Console (6) onto the Console Mount (5). Then,
pivot the Console and the Console Mount to the
desired angle.
See step 7. Tighten the M4 x 25mm Screw (71).
Avoid pinching
the wires
45
B
C
6
5
10. Identify the Right Pedal (17).
Using an adjustable wrench, firmly tighten the
Right Pedal (17) clockwise into the Right Crank
Arm (27).
Firmly tighten the Left Pedal (18)
counterclockwise into the Left Crank Arm
(28). IMPORTANT: You must turn the Left
Pedal counterclockwise to attach it.
27
18
28
17
8. The Console (6) requires three AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console displays or other electronic
components.
Press the tab on the battery cover (A), and
remove the battery cover. Next, insert three bat-
teries into the battery compartment; make sure
to orient the batteries as shown by the dia-
gram inside the battery compartment. Then,
reattach the battery cover.
8
A
6
