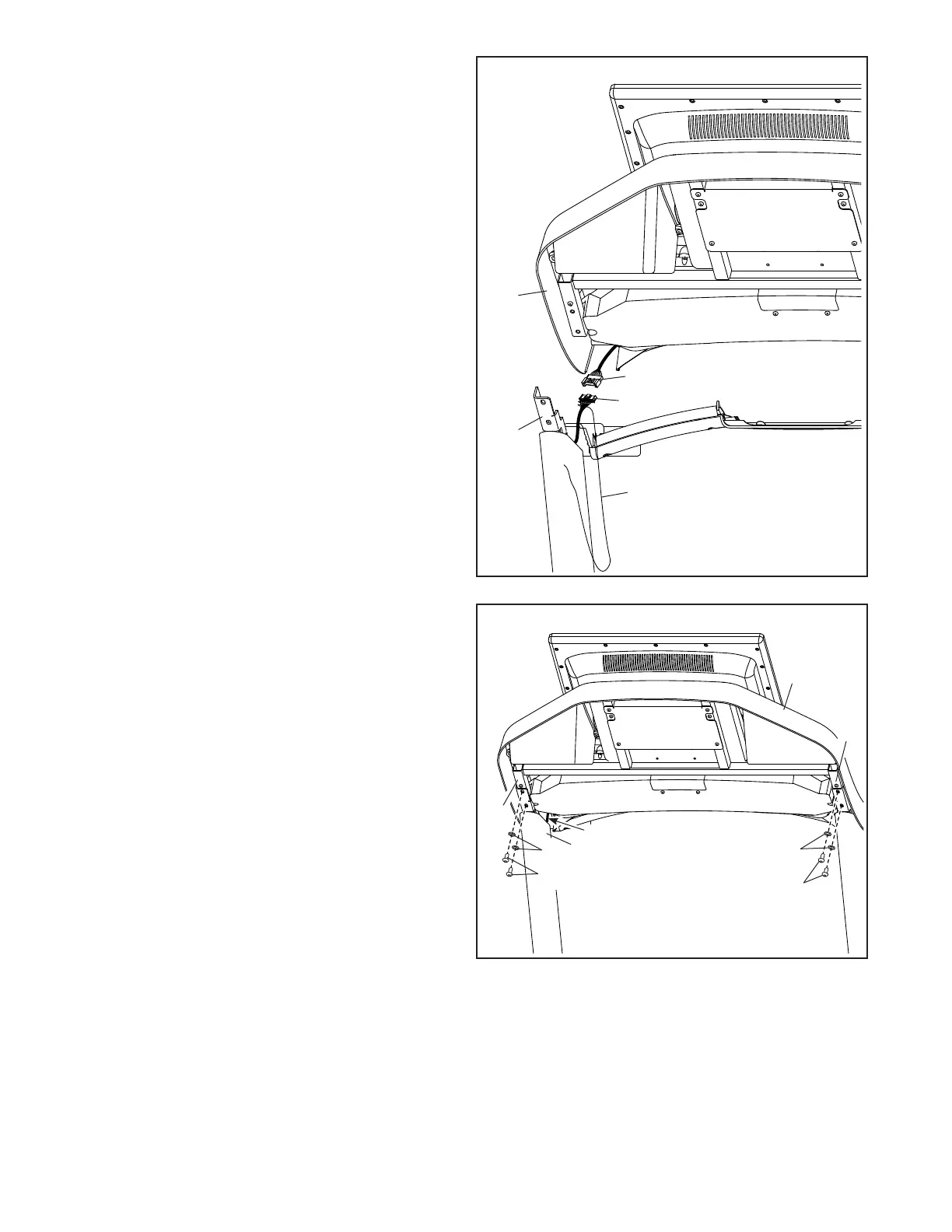

8. With the help of a second person, hold the con-
sole assembly (C) near the Right Handrail (84).
Connect the Upright Wire (90) to the con-
sole wire (D). The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again.
Then, remove the wire tie (A) from the Upright
Wire (90).
90
C
D
A
8
84
9. Attach the console assembly (C) to the Handrails
(83, 84) with the four 1/4" x 1/2" Screws (20)
that you removed in step 6 and four 1/4" Star
Washers (11); start all four Screws, and then
tighten them. Be careful not to pinch the
wires (E).
Insert any excess wire (E) into the top of the
Right Upright (92).
9
20
11
C
11
20
84
83
92
E
