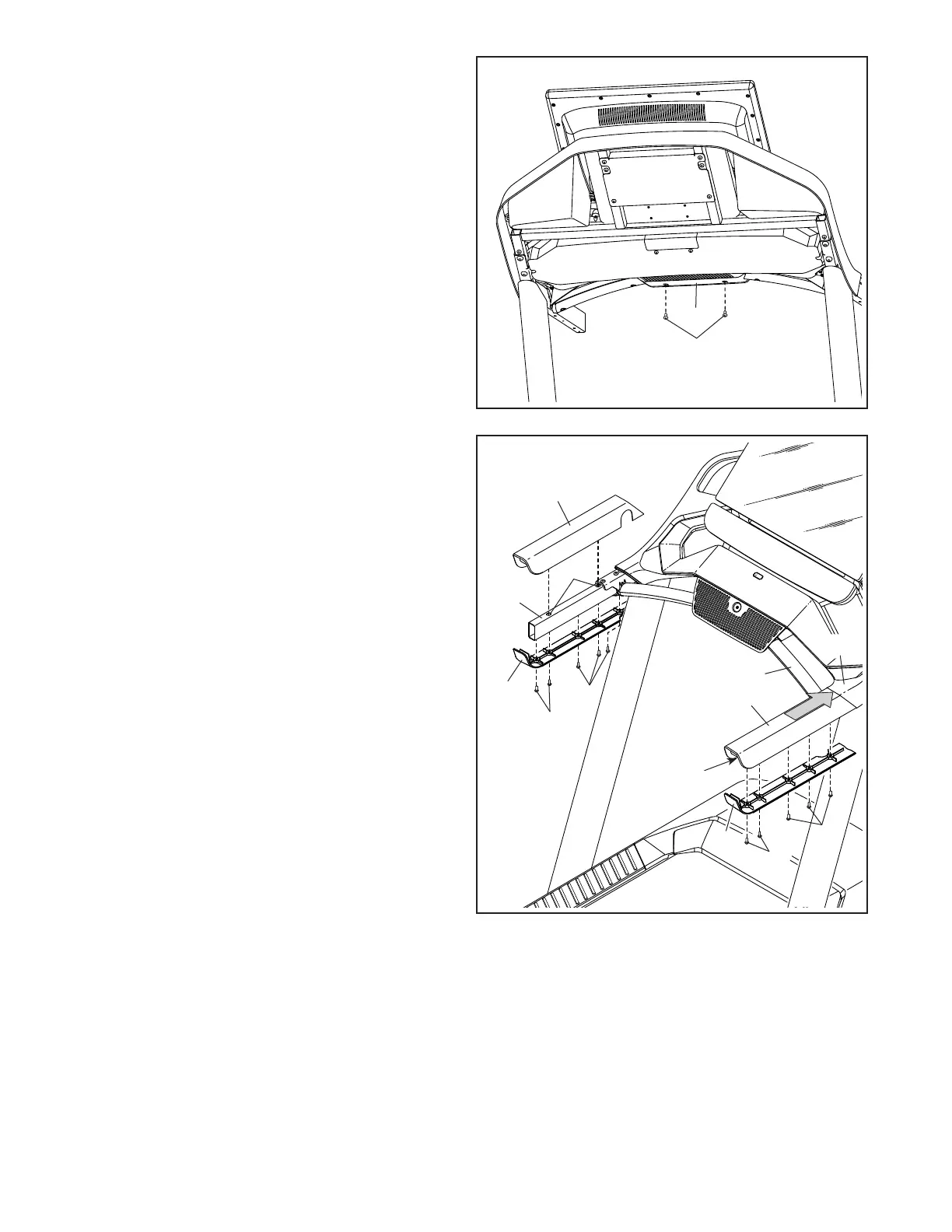

10. Start two #8 x 1/2" Screws (2) into the Crossbar
(89), and then tighten them; do not overtighten
the Screws.
10
2
89
11. Align the Right Top Handrail Cover (82) with the
Crossbar (89) and with the holes (F) in the Right
Handrail (84). Then, press the Right Top Handrail
Cover downward onto the Right Handrail. The
front of the Right Top Handrail Cover should flex
around the Console Base (103) and snap into
place around the Crossbar.
Next, start five #8 x 3/4" Screws (5) into the
Right Bottom Handrail Cover (86), the Right
Handrail (84), and the Right Top Handrail Cover
(82). Then, slide the Right Top and Bottom
Handrail Covers forward against the Console
Base (103) as shown, and tighten the five
Screws.
Attach the Left Top and Bottom Handrail
Covers (81, 85) to the Left Handrail (83) as
described above.
5
5
5
11
86
84
85
83
89
F
82
81
5
103
