11

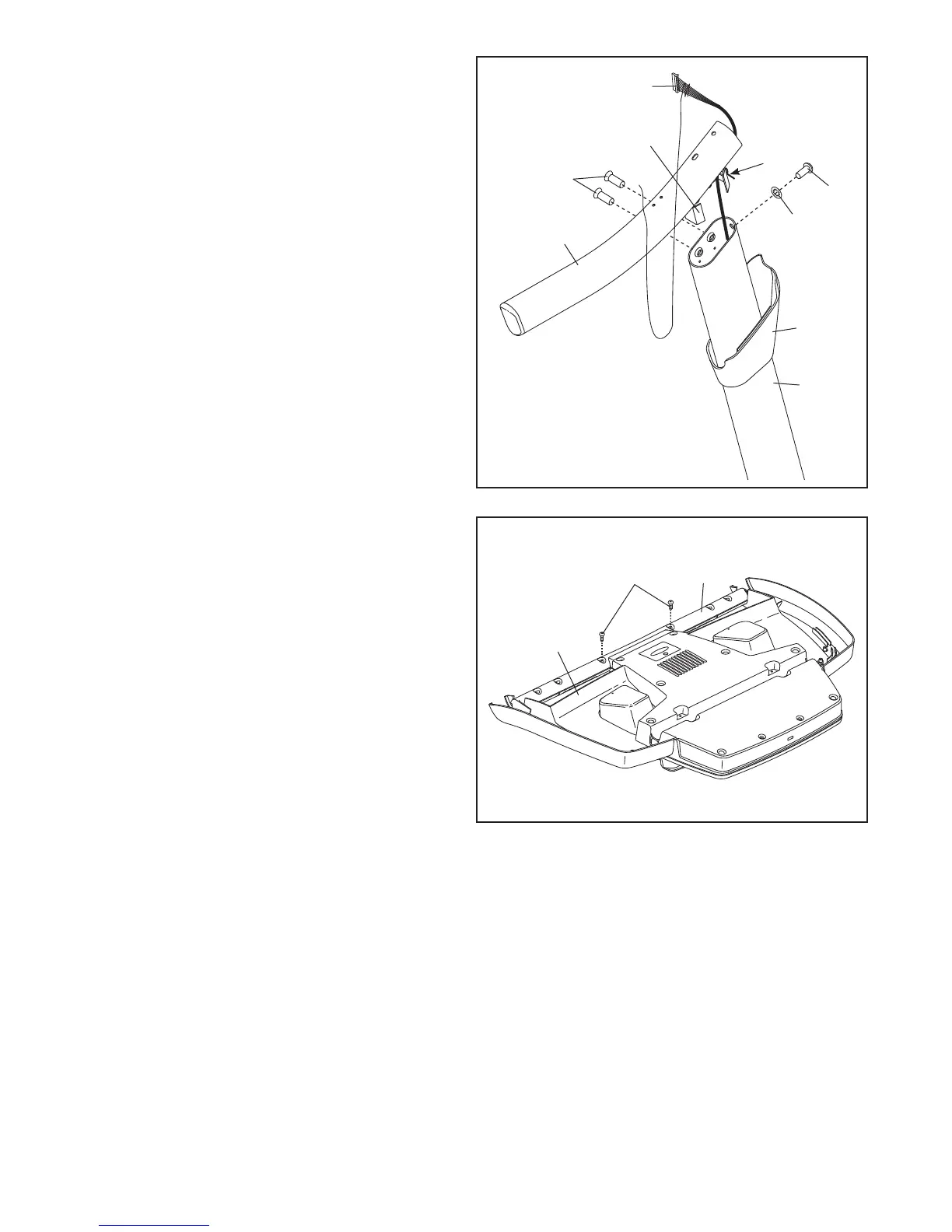

9. Set the console assembly face down on a soft
surface to avoid scratching the console
assembly.
Remove the Screws (A) attaching the Crossbar
(104). Next, lift off the Crossbar. Discard the
Screws.
9
104
Console
Assembly
A
8. Identify the Right Upright Cover (86) and the
Right Handrail (83). Slide the Right Upright
Cover onto the Right Upright (85). Remove the
tie from the bracket on the Right Handrail. If
necessary, press the 5/16" Cage Nut (38) back
into place.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87) through
the bracket on the bottom of the Right Handrail.
Pull the Upright Wire out of the end of the Right
Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with two 5/16" x 1" Screws (3) and a
5/16" x 1" Bolt (4) with a 5/16" Star Washer (13);
do not tighten the Screws and Bolt yet.
Attach the Left Upright Cover (not shown)
and the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
38
83
Bracket
3
4
13
86
85
87
8
To Next Page
