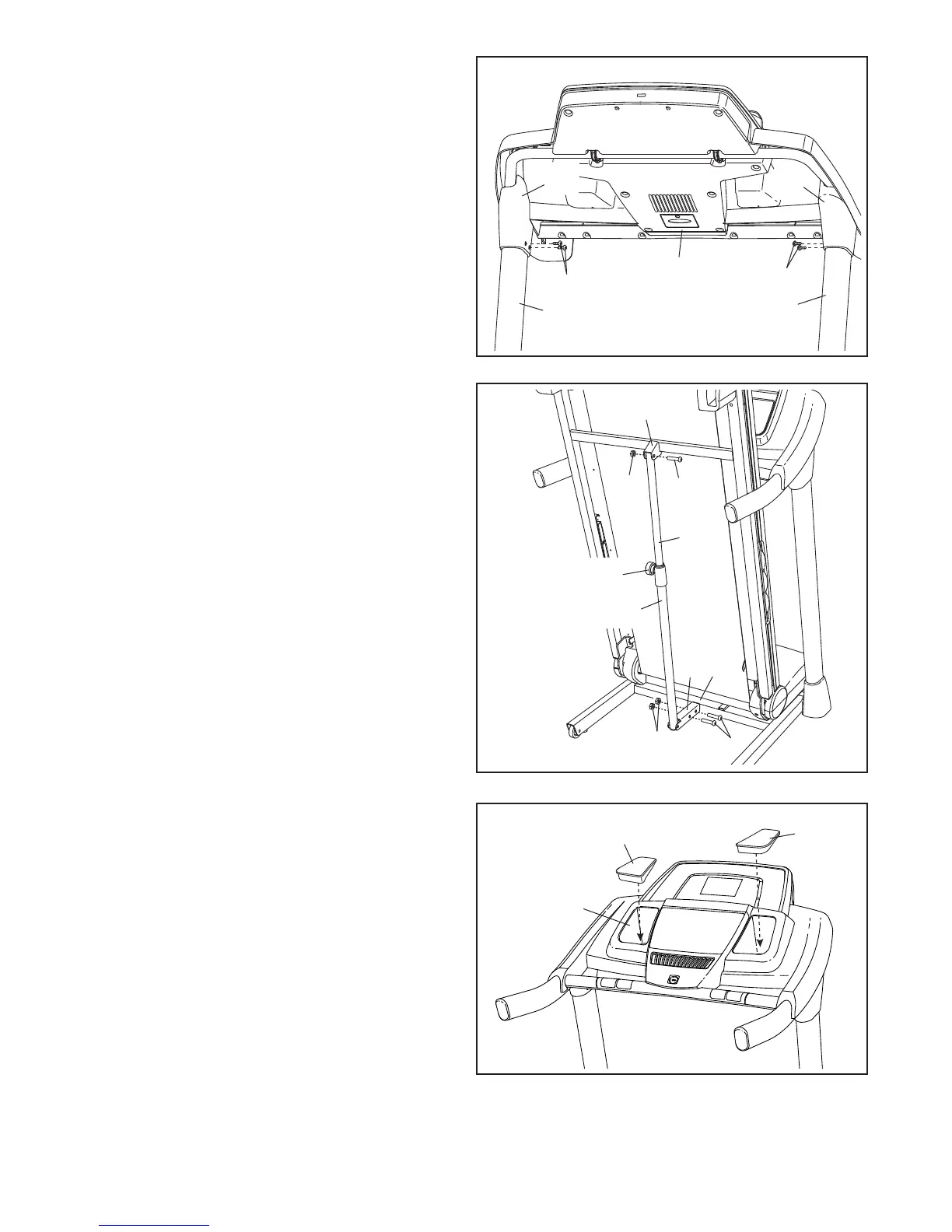

14. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x 3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
See steps 4 and 6. Tighten the four 3/8" x 4"
Screws (7) and the two 3/8" x 1 1/2" Screws (14).
14
85
84
1
1
Console
Assembly
80
86
17. Make sure that all parts are properly tight-
ened before you use the treadmill. If there are
sheets of plastic on the treadmill decals, remove
the plastic. To protect the oor or carpet, place
a mat under the treadmill. Note: Extra parts may
be included. Keep the included hex keys in a
secure place; one of the hex keys is used to
adjust the walking belt (see pages 24 and 25).
15. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the Latch Bracket (39) to the Base (95)
with two 3/8" x 2" Bolts (8) and two 3/8"
Nuts (10).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x
2" Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 22).
15
51
95
10
8
55
10
39
8
16. Insert the Left and Right Tray Inserts (61, 50) into
the console assembly as shown.
16
Console
Assembly
50
61
Large Barrel
Latch Knob
