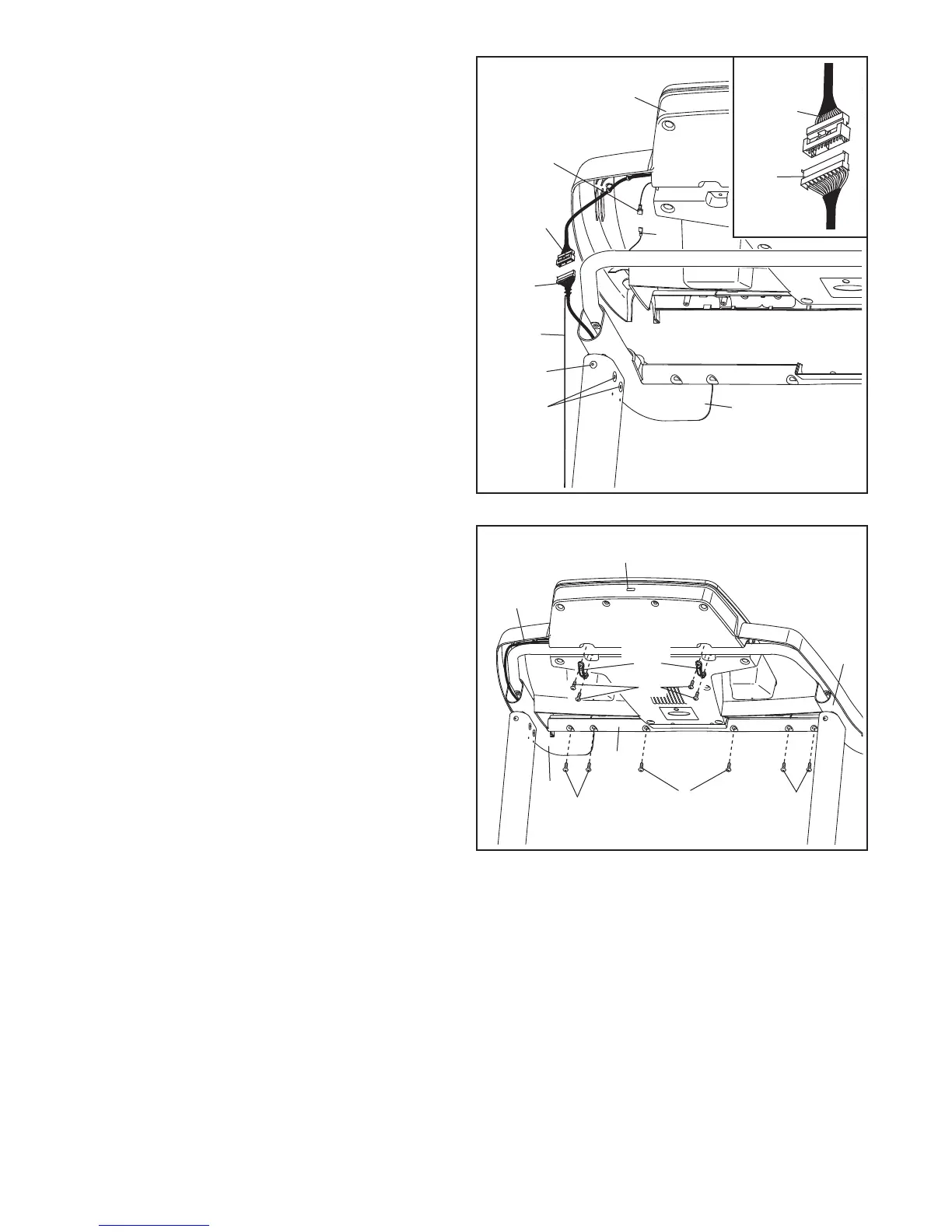

13. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires. Insert the excess Upright Wire (87) into
the Right Handrail.
Attach the console assembly to the Crossbar
(104) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
83
105
53
87
1
1
1
Console Assembly
82
104
12. Firmly tighten the four 5/16" x 1" Screws (3) and
the two 5/16" x 1" Bolts (4) (only one side is
shown).
With the help of a second person, hold the con-
sole assembly near the Right Handrail (83) and
the Left Handrail (not shown).
Connect the Upright Wire (87) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Remove the wire tie from the
Upright Wire.
Connect the ground wire from the console
assembly to the Console Ground Wire (52).
Insert the wires into the console assembly.
Console
Assembly
12
Console
Wire
Wire
Tie
83
87
4
3
87
Console
Wire
13
52
Ground
Wire
To Next Page
