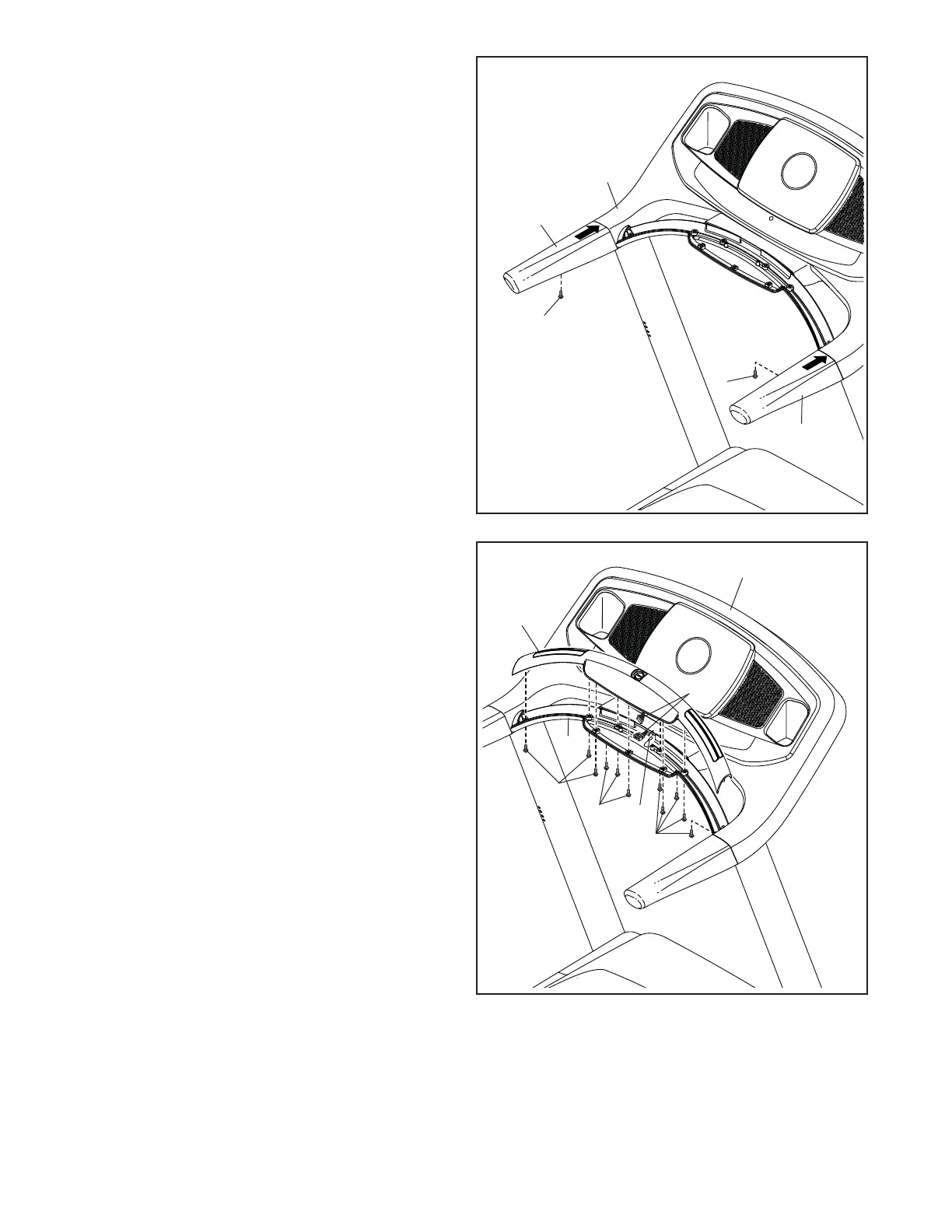

13. Hold the Pulse Bar (85) near the console assem-
bly (F). Connect the two pulse wires (G) and the
Console Ground Wire (58).
Attach the Pulse Bar (85) to the Pulse Crossbar
(93) with eleven #8 x 1/2" Screws (1); start all
eleven Screws, and then tighten them. Make
sure that no wires are pinched.
12. Slide the Right and Left Handrail Grips (74, 79)
over the Right and Left Handrail Covers (not
shown) and against the console assembly (F).
Attach the Handrail Grips (74, 79) with two
#8 x 1/2" Screws (1); do not overtighten the
Screws.
12
79
F
74
1
1
13
1
85
G
93
1
1
58
F
