15

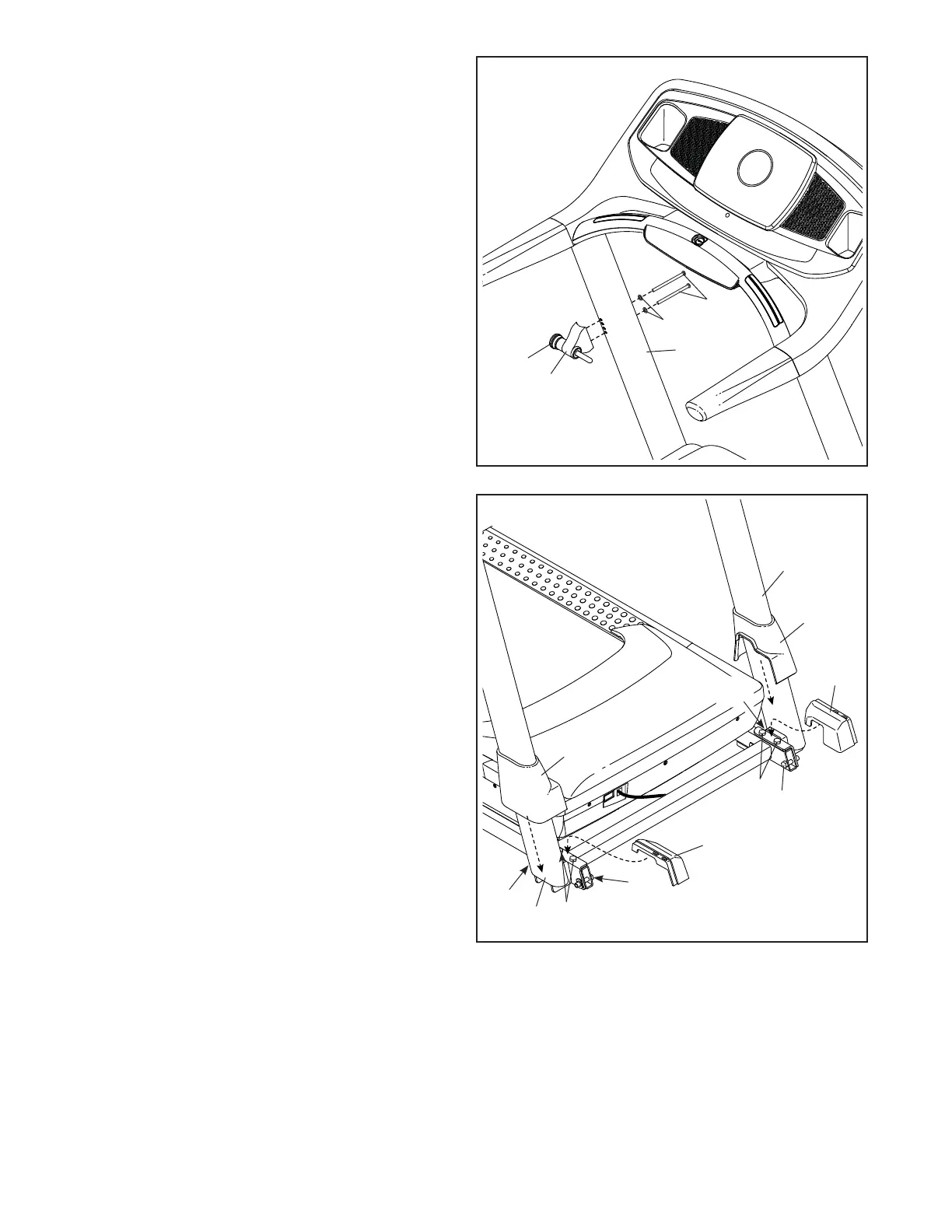

14. Orient the Latch Assembly (52) so that the
knob (H) is on the side shown. Attach the
Latch Assembly to the Left Upright (89) with
two 1/4" x 4 1/2" Screws (6) and two 1/4" Star
Washers (26); do not overtighten the Screws.
14
89
6
26
52
H
15. Firmly tighten the four 3/8" x 2 1/4" Screws
(7), the two 3/8" x 1 3/4" Screws (62), and the
two 3/8" x 1 1/4" Screws (63).
Next, set the Left Inner Base Cover (100) onto
the lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (101) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
100
83
82
62
89
7
7
63
62
101
63
15
90
