17

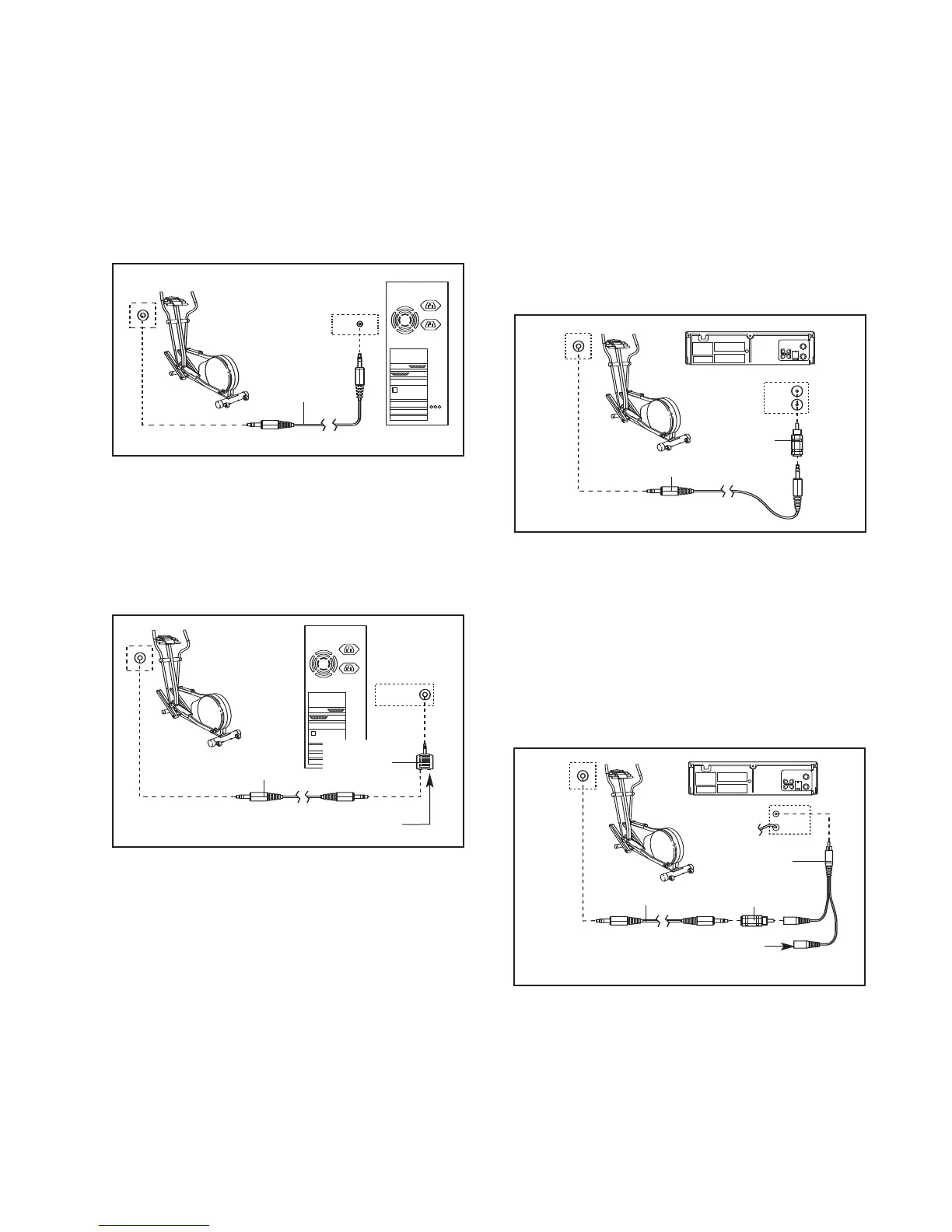

HOW TO CONNECT YOUR COMPUTER
N
ote: If your computer has a 3.5mm LINE OUT
jack, see instruction A. If your computer has only
a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your com-
puter.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into
the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
splitter.
HOW TO CONNECT YOUR VCR
N
ote: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
b
eing used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged
into the AUDIO OUT jack on your VCR and plug
the wire into the unused side of the Y-adaptor.
Plug the Y-adaptor into the AUDIO OUT jack on
your VCR.
B
VIDEO AUDIO
A
NT. IN
RF OUT
IN
O
UT
CH
3
4
A
A
UDIO OUT
RIGHT
L
EFT
V
IDEO AUDIO
ANT. IN
R
F OUT
I
N
OUT
C
H
34
C
AUDIO OUT
RIGHT
LEFT
Audio Cable
Adaptor
A
B
V
IDEO AUDIO
A
NT. IN
R
F OUT
IN
O
UT
CH
3
4
A
A
UDIO OUT
RIGHT
LEFT
V
IDEO AUDIO
ANT. IN
RF OUT
IN
O
UT
C
H
3
4
AUDIO OUT
R
Audio Cable
Adaptor
B
Wire removed from
AUDIO OUT
jack
RCA
Y-adaptor
Audio
Cable
A
Audio
Cable
B
Splitter
Headphones/Speakers
