23
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch to the off posi-
tion and unplug the power cord.
Next, remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
then remove the
Large Storage
Foot. Then,
remove the two
M4 x 16mm
Screws (not shown) from the Top Shield (37), and
then use a standard screwdriver to pry the Top Shield
upward off the elliptical.

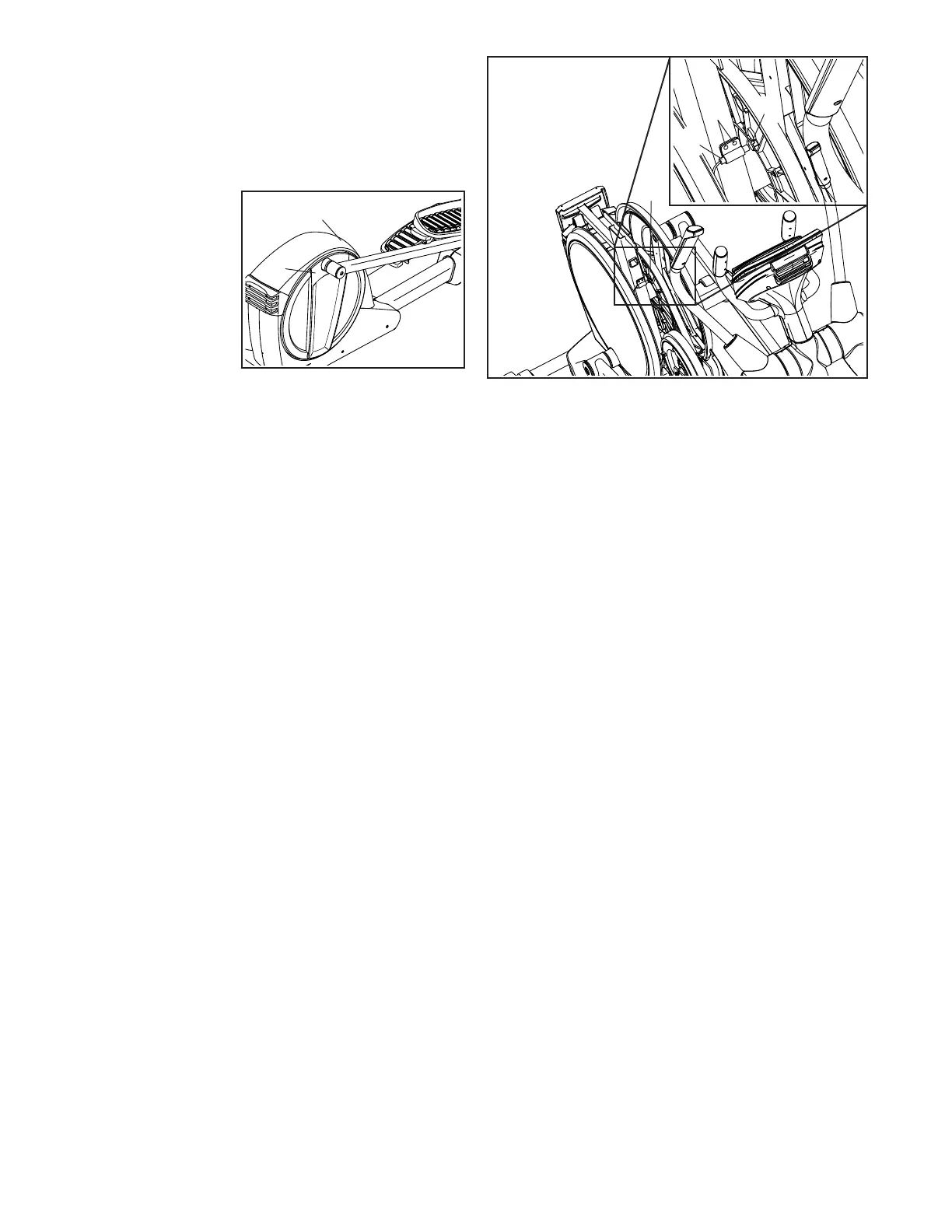

See the drawing at the right. Look into the access
opening and locate the Reed Switch (58). Rotate the
Pulley (66) until a Magnet (41) is aligned with the
Reed Switch.
Slightly loosen the two indicated M4 x 16mm Screws
(61), slide the Reed Switch (58) slightly toward or
away from the Magnet (41), and then retighten the
Screws.
Plug in the power cord, press the power switch to the
reset position, and rotate the pulley for a moment.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, press the
power switch to the off position, unplug the power cord
and reattach parts that you removed. Then, plug in the
power cord.
37
27
66
58
41
61
To Next Page
