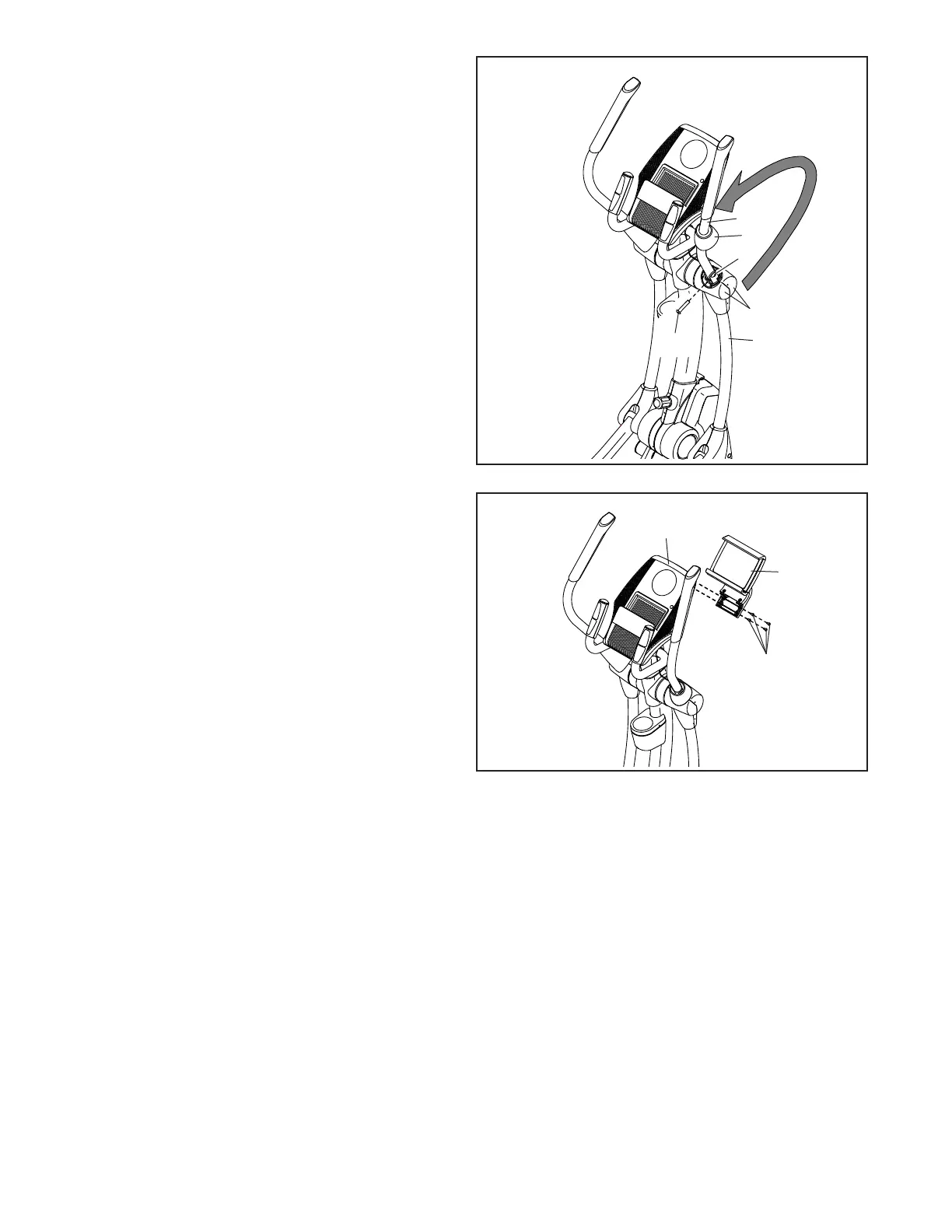

5. Rotate the Right Upper Body Arm (9) to the
position shown.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
IMPORTANT: Tighten the indicated
M10 x 45mm Hex Screw (78).
Press the Upper Body Arm Cover (20) downward
and turn it so that it is flush with the Right Leg
Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
5
7. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat
beneath the elliptical to protect the floor.
9
78
95
20
11, 15
6
6
131
110
4
6. Attach the Tablet Holder (131) to the Console (4)
with four Tablet Holder Screws (110); start all
the Screws, and then tighten them.
