8
3
6

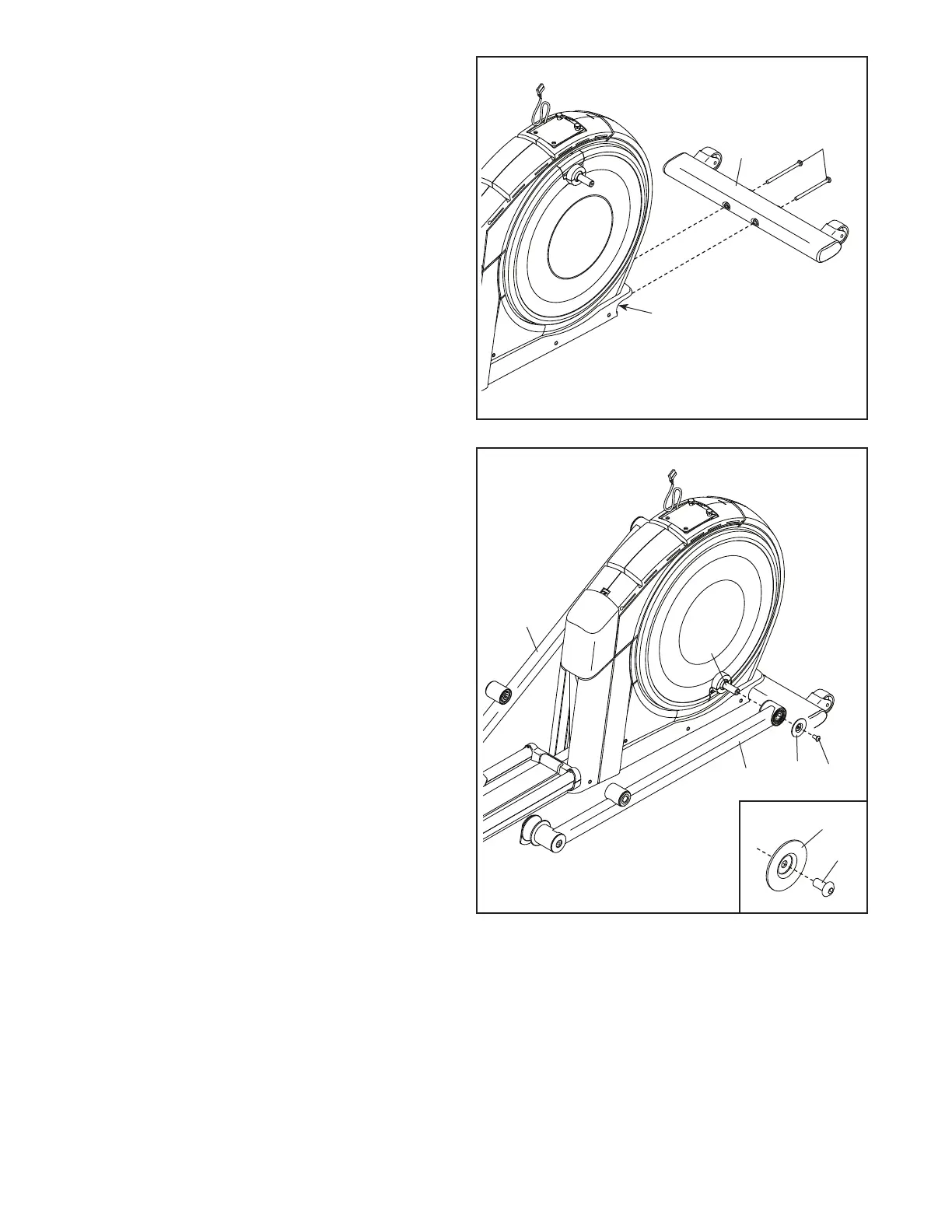

3. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
If there are shipping supports attached to the
front of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the front of the Frame (1).
1
104
4
77
59
45
95
4. Identify the Right Roller Arm (59), orient it as
shown, and slide it onto the right Crank Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (95) and a Crank Cover (77)
make sure that the Crank Cover is oriented
as shown in the inset drawing.
Repeat this step for the Left Roller Arm (45).
20
95
77
