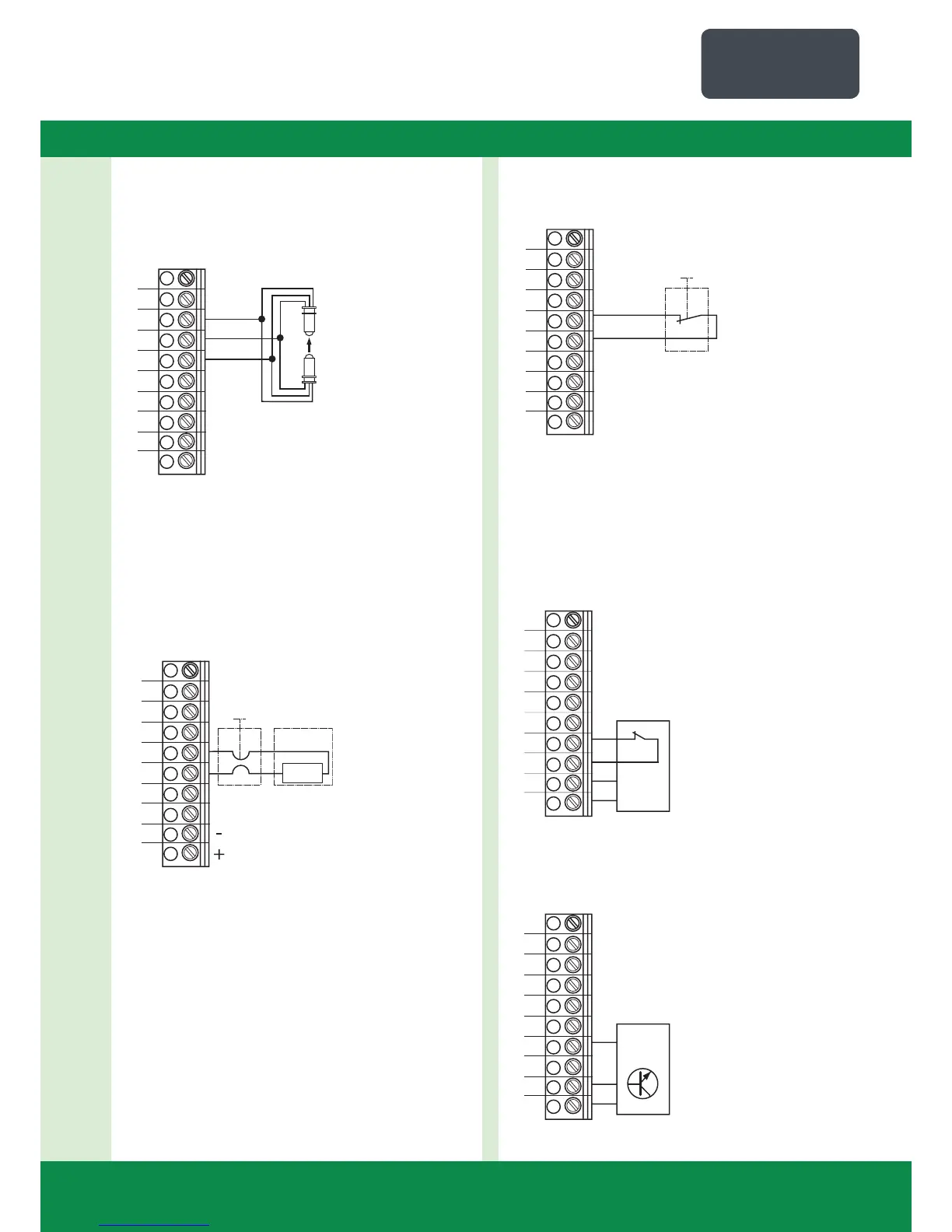

5.6 Connection of closing edge safety device
Terminal block X4
Opto-electronic closing edge safety device
+
-
1
2
3
4
5
6
7
8
9
10
ws
gr
br
- OPTO closing edge
safety device
- 24 V DC / 250 mA
1
ws: white
gr: green
br: brown
Terminal block X4
Electricalclosingedgesafetydevice(8.2kΩ)
8k2
1
2
3
4
5
6
7
8
9
10
- Closing edge safety
device8.2kΩ
- 24 V DC / 250 mA
1
1
for external switching devices
(connection to terminals 1 and 2)
Terminal block X4
Pneumatic closing edge safety device (pressure sensor test)
+
-
1
2
3
4
5
6
7
8
9
10
- Pneumatic closing
edge safety device
- 24 V DC / 250 mA
1
5.7 Photocell connection
(effective in down direction)
Terminal block X4
Photocell NC
+
GND
1
2
3
4
5
6
7
8
9
10
- Drive-through photocell
Terminal block X4
Three-wire NPN photocell
1
2
3
4
5
6
7
8
9
10
Sig
GND
NPN
+
- Three-wire NPN photocell
