Pro-Line System CS300 User Manual

10 – CS 300 Gate Controls / Rev.D 5.6
SYSTEM
Pro-Line
Initial operation

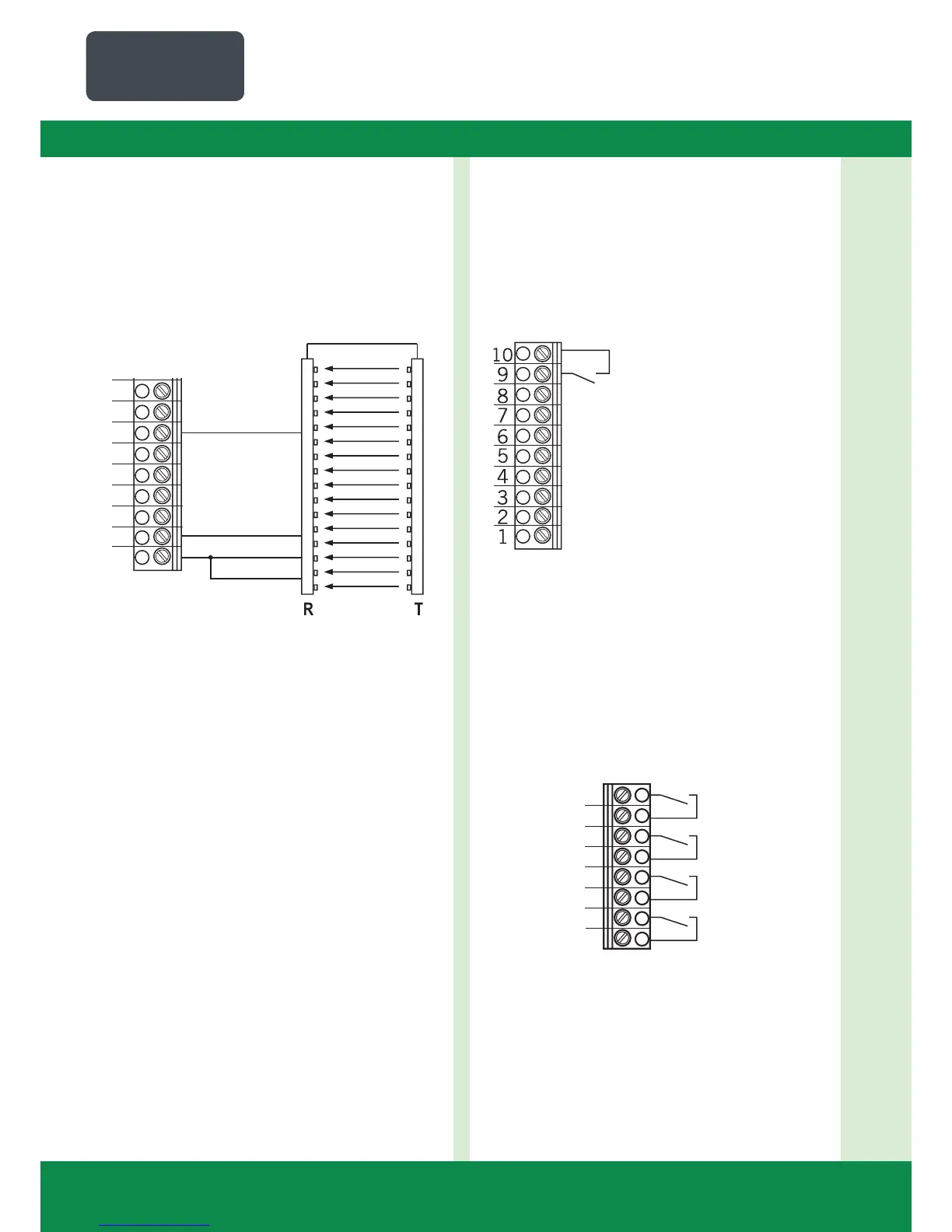

5.8 Light curtain connection
Terminal block X4
Light curtain OSE (optosensor) (parameter PRESS/REL =
MOD4)
The connecting cable (A) can be plugged in.
1
2
3
4
5
6
7
8
9
12
11
10
A
sw
bl
ws
br
br: brown
bl: blue
sw: black
ws: white
R: Receiver
T: Transmitter
NOTICE:
The light curtain shown as an example in these instructions is
the RAY-LG, manufactured by FRABA/CEDES.
RAY-LG 25xx OSE
No testing is required for the RAY-LG 25xx OSE light curtain.
Drawings from other manufacturers are available on request.
5.9 Connection of programmable inputs
The CS 300 control has one programmable input for which
various functions can be selected.
Ô “9.2 Input operating mode“
Terminal block X4
- programmable input
5.10 Connection arrangement for relay
outputs
There are four potential-free relay outputs available that can
be programmed with various types of functions.
Ô “9.2 Input operating mode“
Terminal block X5
- Relay 1
- Relay 2
- Relay 3
- Relay 4
1
2
3
4
5
6
7
8
Internal
switching
contacts of the
relays
These four relay outputs are potential-free and have a
maximum capacity of 4A at 230V/1~.
The type of function depends on the parameter setting for the
corresponding relay output in INPUT mode.
