Pro1 Technologies T805 - Understanding Thermostat Display Elements

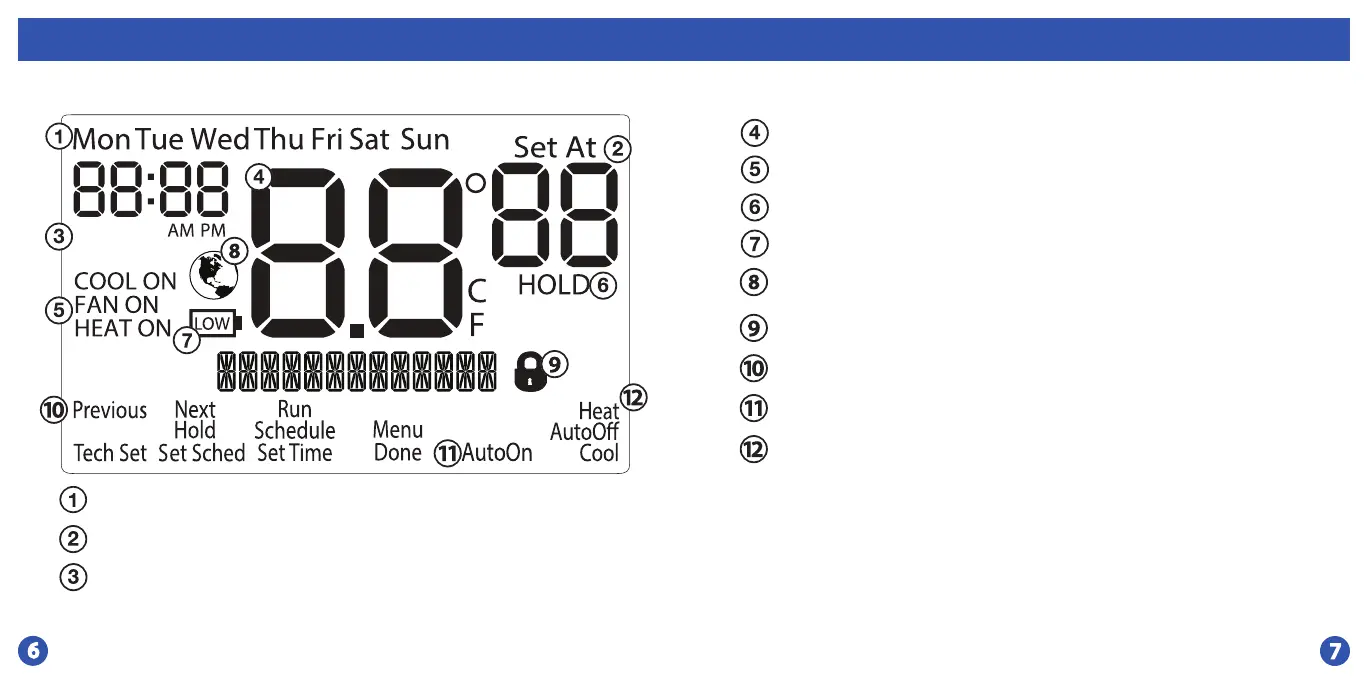

Thermostat Quick Reference Thermostat Quick Reference
Day of the week
Heating Setpoint: Displays the user selectable setpoint temperature.
Energy Ecient Leaf: Indicates the setpoint termperature chosen is an
ecient choice.
Keypad Lockout: Indicates the thermostat is in keypad lockout
Time and day of the week
Hold Indicator: Displayed when the thermostat is inpermanent hold
Low Battery Indicator
Indicates current room temperature
Indicates if heating or cooling equmipment is running
Program Menu Buttons: Shows dierent options during
programming.
Fan Button: Changes the fan operation between Auto, IAQ,
and On.
System Button: Changes the system operation between O,
Cool, Auto, Heat, and Emergency Heat based on system tech
setting.
