ENGLISH
15
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
P. CONT
ANT CONT
MUTE
Installation/Connection
Pin Color and function (for ISO connectors)
A4 Red : Ignition (ACC)
A5 Blue/White*1 : Power control
A7 Yellow : Battery
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
B8
Green/black
[

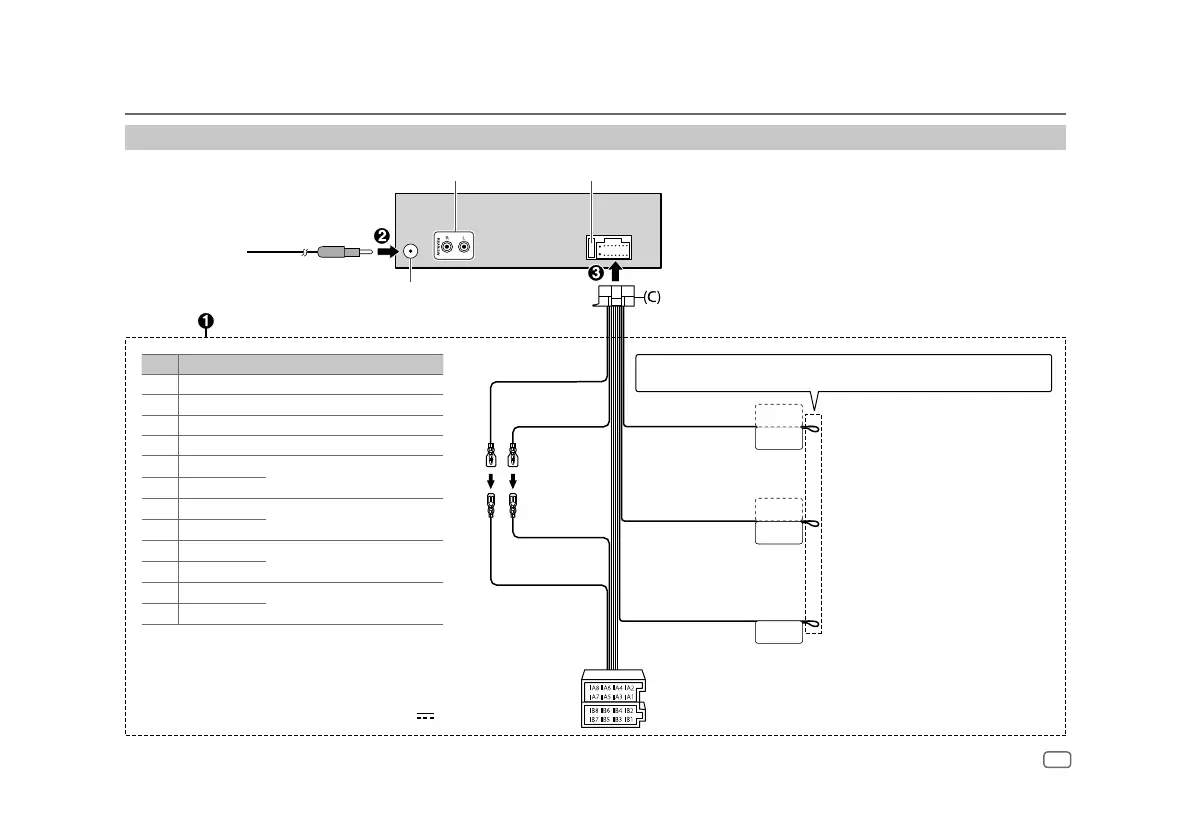

Wiring connection
Fuse (10 A)
Antenna terminal
Blue/White*2
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote control
wire)
To the power control terminal when using the
optional power amplifier or to the antenna
control terminal in the vehicle
Brown
(Mute control wire)
To the terminal that is grounded when the
telephone rings or during conversation
If no connections are made, do not let the wire come out from the tab.
To the steering wheel remote control adapter
ISO connectors
NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V
350 mA
Rear/subwoofer output
Yellow (A7)
Red (Ignition wire)
Red (A4)
Yellow (Battery wire)
