18
PR O C E E D
R
c d p by MADRIGAL AUDIO LABORATORIES
analog outputs
please see bottom panel for voltage and other information
~ ac mains
digital
inputs
remote
IR
L
L
R
R
digital
out
spdifeiaj
®
and High Definition Compatible Digital® are registered trademarks
of Pacific Microsonics, Inc.
remote
turn-on
12
3
12
3
1
2 2 1 6
7
3
4 5

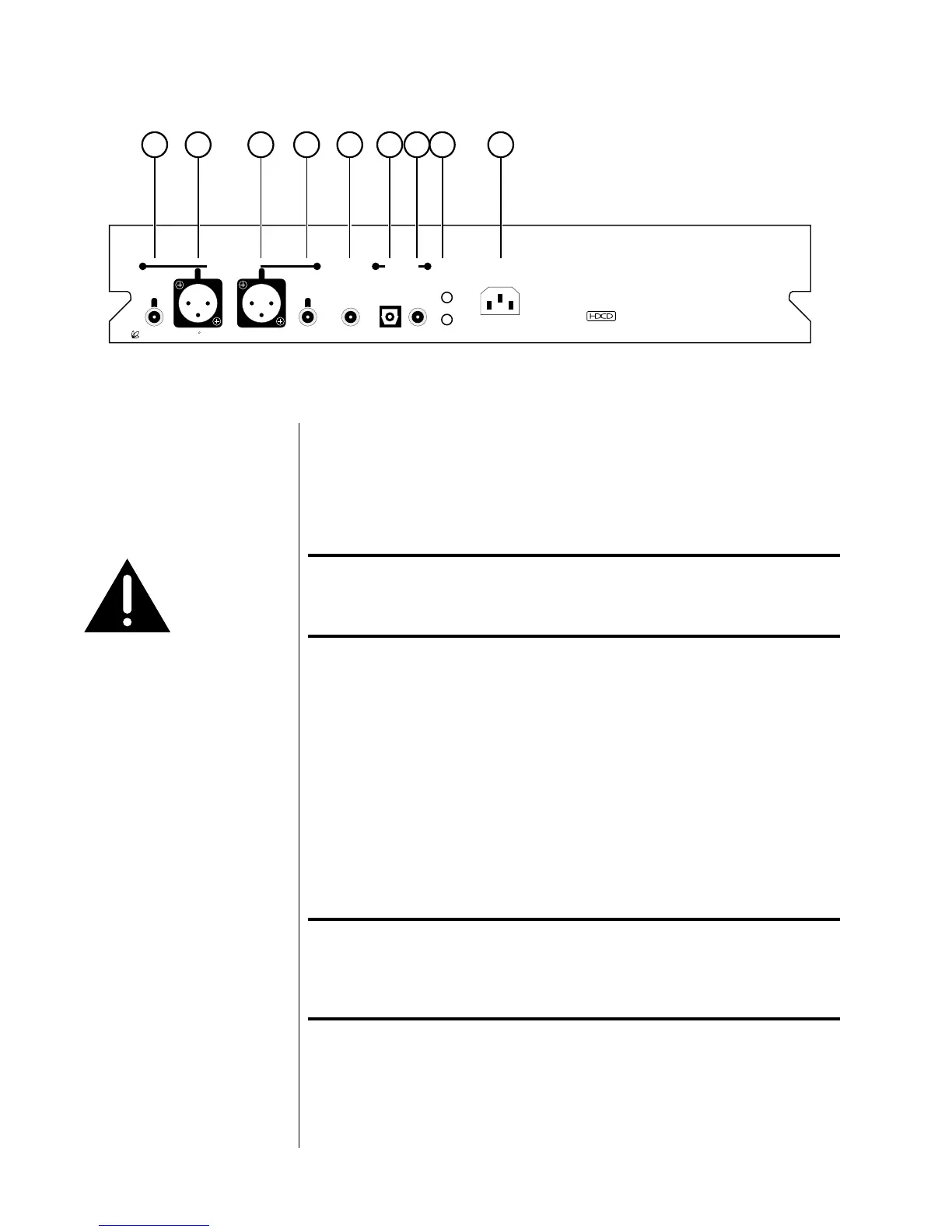

Rear Panel, CDP
Caution! Disconnect all associated equipment from the AC mains
BEFORE making any signal connections and applying power
to the CDP.
1 SINGLE-ENDED ANALOG OUTPUTS
These outputs provide single-ended analog audio (via cables equipped
with RCA-type connectors) to a preamplifier, integrated amplifier, or receiver
equipped with single-ended inputs. Most components accept this type of
output.
If you engage the volume control circuitry in the CDP, these outputs may be
routed directly to a power amplifier. This mode of operation is somewhat
less desirable sonically than using a high quality active preamplifier, but
may be advantageous under some circumstances.
Note: When you engage the volume control circuitry in the CDP, the
volume will initially be set to 00 as a safety measure to protect
your loudspeakers. You will need to raise the volume before
you will be able to hear any output from your CDP.
