20
Connect the digital output of the CDP to the RCA input of your digital re-
corder using a high quality 75Ω cable such as Madrigal MDC-2.
4 EIAJ DIGITAL INPUT
This input accepts digital audio conforming to the EIAJ optical (sometimes
called “Toslink”) digital interface standard from the EIAJ digital output of a
digital FM tuner, compact disc player, laserdisc player, or digital audio re-
corder.
Connect the digital output of your digital source component to the EIAJ
input of the CDP using a high quality EIAJ optical cable. It is accessed by
pressing
source on your remote control, and indicated by In 2 in the CDP
display. (Pressing source repeatedly will cycle you from CD to In 1 to In 2,
and back to CD again.)
5 S/PDIF (RCA) DIGITAL INPUT
This input accepts digital audio conforming to the 75Ω S/PDIF digital inter-
face standard (via a cable equipped with RCA-type connectors) from the
digital output of a digital FM tuner, compact disc player, laserdisc player, or
digital audio recorder.
Connect the digital output of your digital source component to the RCA in-
put of the CDP using a high quality 75Ω cable such as Madrigal MDC-2. It
is accessed by pressing source on your remote control, and indicated by In
1
in the CDP display. (Pressing source repeatedly will cycle you from CD to
In 1 to In 2, and back to CD again.)
6 REMOTE IR INPUT AND REMOTE TURN-ON OUTPUT
The CDP incorporates an infrared repeater input to facilitate a wide range
of installation options. If desired, the CDP may be placed inside a cabinet
or outside the normal line-of-sight in the listening area, with the controlling
IR signal being relayed to the CDP by any of a number of commercially-
available IR repeaters.
The specifications for this IR input call for a triggering voltage of 5-12 volts
at no more than 100 milliamperes of current, with the tip of the
1
⁄8" mini-
plug having positive polarity, as below:

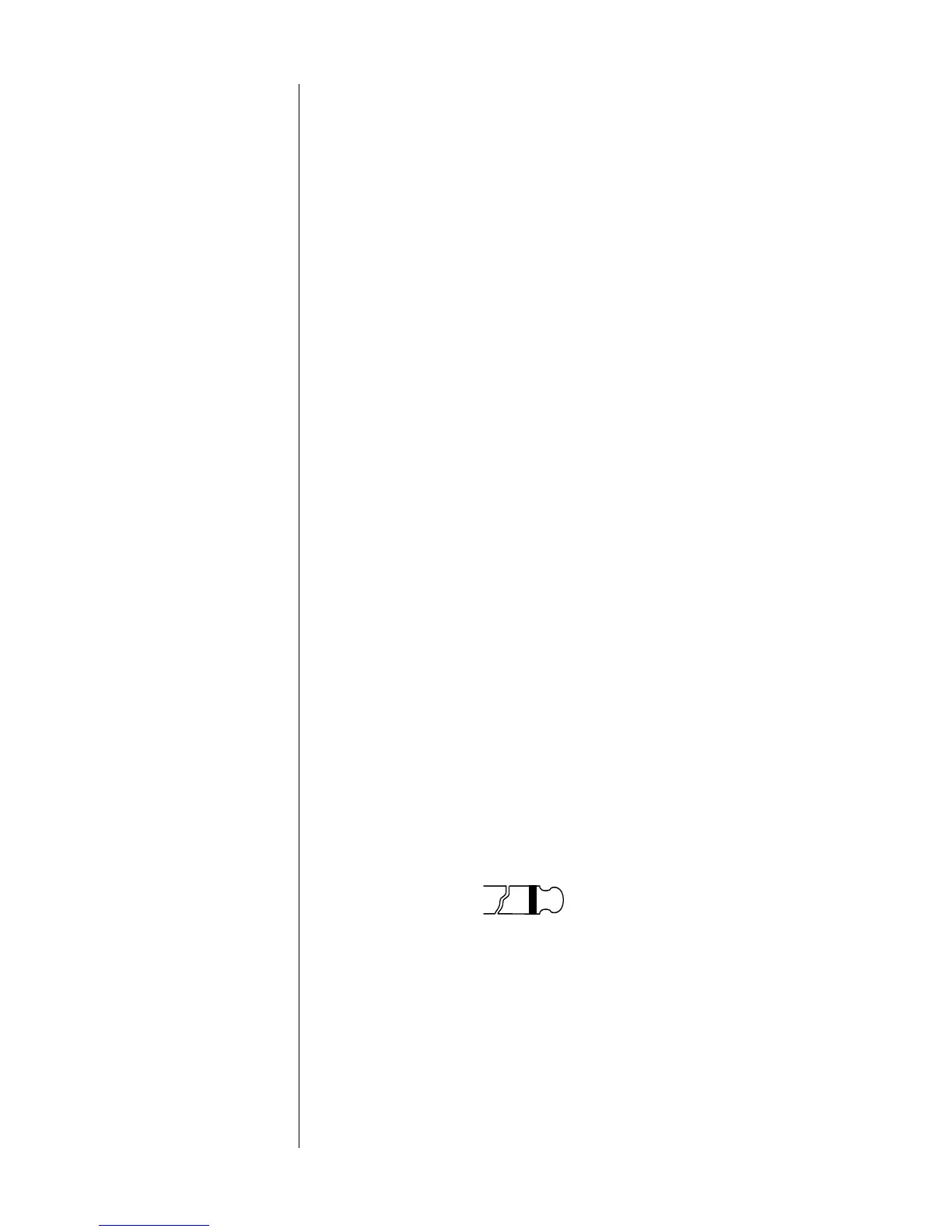

IR input tip polarity
+–
5-12 volts @ less
than 100 mA
If you would like more information on the possibility of using an infrared
repeater with your CDP, please contact your Proceed dealer.
The CDP also includes a remote turn-on output trigger that can control a
Proceed power amplifier. If you choose to drive a Proceed AMP 2 directly
from the CDP (using the CDP’s adjustable output mode), connecting this
output with the matching input on the AMP 2 will allows you to turn both
units on or off from the CDP remote control’s standby button.
