Procom ECON-F User Manual

Page - 4
6.0 Front Panel Switch
ECON – F/4C has four switch provided on its front panel. Switch can h
more than one functions assigned to them. The table below describes the
operation of these
7.0 Setting Procedure / Menu
ECON is user/site configurable. User can view all parameters, fault history,
events no. of start/stop and can also edit, system parameter (password
protected), engine / generator parameter, annunciation setting,RS485
parameter clock and password. Following is the sequential procedure to
edit. view all the menu and submenus
Press “R” & “Enter“ switch simultaneously.
The LCD shall display, “System Parameter”
1. System Parameter
lSystem parameter are password protected.
lTo enter “system parameter” press “Enter”.
lECON will request for password, LCD will display “ Enter Password”
lSystem parameter can be edited by entering correct password or else
can be viewed by entering “0” as password.
2. Engine / Generator Parameter
lTo go to next menu after system parameter, press “Increment”.
lThe LCD shall display “Generator Parameter”.
lGenerator parameter can modified / viewed by pressing “Enter”.
(for setting details pls refer table 5.1)

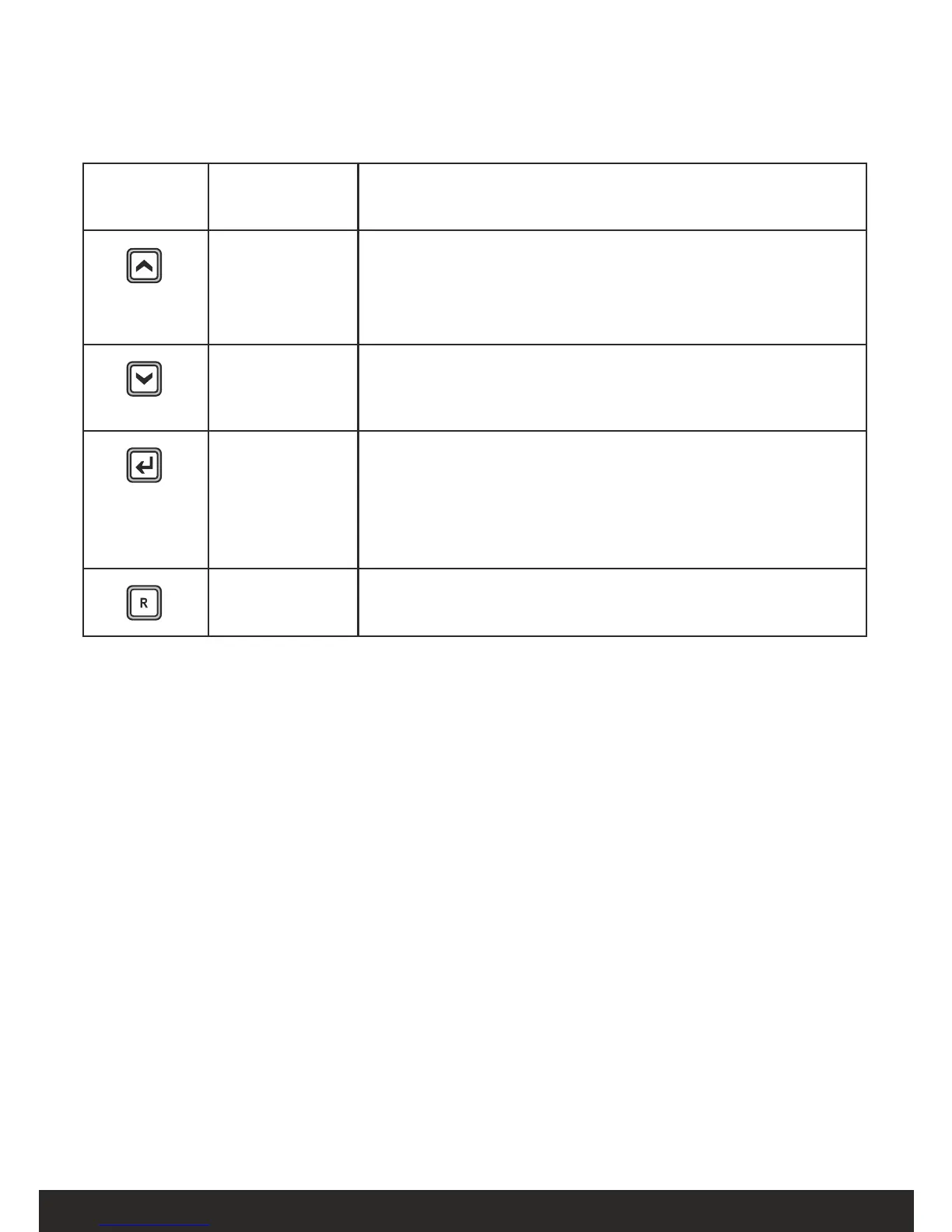

Switch
Symbol
Switch
Function
Description
Increment
/Start
Programming Mode: It is used to increment
the value of the parameters under
programming. & it is used to issue the crank/
start command to DG
Decrement
/Stop
Programming mode: It is used to decrement
the value of the parameter under programming
&. It is used to issue the stop command to DG
Next
Normal operation mode: In this mode, it is
used to change the parameters being displayed
on LCD.
Programming Mode: Next key is used to
select the next parameter to be programmed.
Reset
Either to reset the fault / Or press enter and
reset together to select programming mode.
